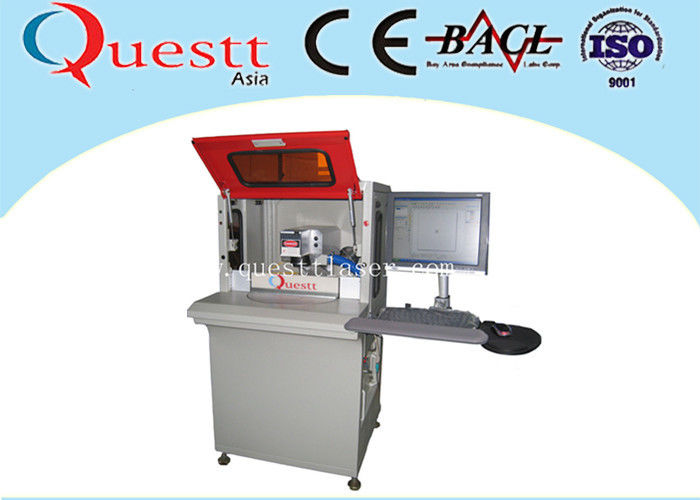

High Precision Automatic Fiber Laser Marking Machine With 2 Station Rotate Table

Product Details

Place of Origin: Wuhan City

Brand Name: Questt

Certification: CE,ISO,SGS

Model Number: FL20R2

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Export standard wooden cases

Delivery Time: 11 days

Payment Terms: T/T, Western Union, L/C, Paypal

Supply Ability: 1900 sets / Year

Get Best Price
Highlight:

fiber laser etching machine

,

laser marking equipment

Laser Power:
10W / 20W / 30W / 50W
Laser Type:
Fiber Laser
Special Device:
Rotate Table
Marking Area:
Optional
Conveyor Length:
As Demand
Service:
Overseas Service OK
Laser Power:
10W / 20W / 30W / 50W
Laser Type:
Fiber Laser
Special Device:
Rotate Table
Marking Area:
Optional
Conveyor Length:
As Demand
Service:
Overseas Service OK
High Precision Automatic Fiber Laser Marking Machine With 2 Station Rotate Table

Automatic Fiber Laser Marking Machine 2 station rotate table for gun 20W



Machine system description


Quantum- FL30R2 Fiber Laser Marking machine equip with a 2 station roate working table, it is special designed for gun marking.

After finish marking on one piece, it will rotate automaticlly to the next one for marking. Much more convenient and efficient.



SS Iron Aluminum printing is speedy and precious. Marking has non-touched process, permanent effect, humanized operation, and stable running.



It can support file formats like PLT, PCX, DXP, BMPand so on. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.



Laser marking equipment features



1 High quality laser beam
2 Low running cost
3 High precision
4 Easy to install and operate
5 Excellent stability
6 Maintenance free
7 Completely sealed optical system



Data sheet



Product Specifications
Product Quantum-FL20R2
Purpose Marking / engraving
Laser
Laser Wavelength 1000-1100nm
Laser Type Fiber Laser
Laser Output Power 20W
typical Laser Life Span 100,000hrs
Modulation frequency 20-100kHz
Max. Working Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Conveyor
Moving  automatic
Length as demands
Jig customize as special needs
Working Area



Beam Diameter/Quality M2<1.2
Working Area 70x70mm , 110x110mm, 160x160mm, 175x175mm (standard) ,220x220mm
Repeatability 0.01mm
Positioning accuracy 0.01mm
Min Line Width 0.01mm
Marking/Cutting Depth 0.01-0.2mm (depending on material)
Control
Cooling Air cooling
No. Axis 3 Axis (Manual)  Z axis auto optional
Rotation Optional(Automatic only)
Power supply AC220V, 50/60Hz, 1kVA (110-120V Optional)
Controller Computer with marking software
USB 2.0 Compatible YES
File Types PLT, DXF, AI, DST, BMP, JPG, TIF
Max. Operating Time 24hrs (recommend 1hr cool-down period)
Physical Characteristics
Dimensions 2000*1200*1500mm
Weight (kg) 150kg
Guarantee: (see Ts&Cs on support page)
General Guarantee 12 Months from date of arrival at destination
Laser Source 2000hrs/3 months - LAMP PUMPED & CO2(Except Smart Series)
  20,000hrs/18 months - Smart Series
  10,000hrs/12 months - Diode Pumped
  100,000hrs/2 years - Fiber LASER








Application



Specially for gun.



It can mark almost all kinds of materials. Metal and nonmetal.



Electronic parts,IC,tools,communication products.





Sample

High Precision Automatic Fiber Laser Marking Machine With 2 Station Rotate Table 0





FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 1 year



2 Q: What is the payment term?

A: T/T, L/C, Westen Union, PayPal etc.



3 Q: What is the service ?

A: oversea service and whole life after sale service.



4 Q: How about the quality?

A: Germany high technoloy with best quality spare parts.



5 Q: Can we customize as special needs?

A: Yes, you can.



Machine details

High Precision Automatic Fiber Laser Marking Machine With 2 Station Rotate Table 1
