Product Details
Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-RF375
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood cases
Delivery Time: 15 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000 Sets/Year
Laser Power: |
375W |
Laser Wavelength: |
1064nm |
Precision: |
0.01mm |
Cooling: |
Air Cooling |
Laser Type: |
RF CO2 Laser |
Service: |
Overseas Service Available |
Laser Power: |
375W |
Laser Wavelength: |
1064nm |
Precision: |
0.01mm |
Cooling: |
Air Cooling |
Laser Type: |
RF CO2 Laser |
Service: |
Overseas Service Available |

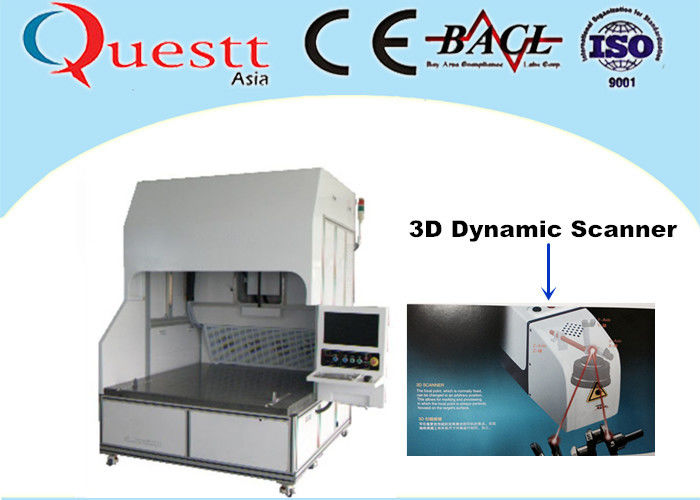

RF CO2 CNC Laser Marking Machine With Air Cooling System , 1064nm Laser Wavelength
Equipment discription
3D dynamic laser marking machine adopts RF CO2 Laser from Rofin, USA, 3D dynamic scanner, marking a larger scope, focusing spot is more delicate, widely used in the big marking area application field.
It adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser optic path is driven by two galvanometer motors (XY), and the third axis is driven by pre-scanning gathered system with the liner motor to make a widely adjustment for focus distance. The advantage is high speed, high precision, high power and large marking area, etc.
It can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc.
Features
1, Comparing with traditional post-dynamic focusing marking machine, it's no necessary to replace the different flat-field lenses to get different marking area. Thinner laser spot as well.
2, Fully enclosed laser optical system, no adjustment or maintenance needed, working at once after installation viable.
3, Original imported RF laser tube with high laser power, excellent laser spot, stable laser generation and lifetime of more than 20,000h.
4, High precision and speed performance with cutting & engraving working, 20% higher efficiency than similar models.
5, Professional industrial thermostatic circulation of water cooling system
ensures more stable running and lower consumption.
6, Strict multiply protection control system can be sure the stable continuous working of 24h of laser marking system.
7, Application under Windows interface, AutoCAD, CorelDraw, Photoshop compatible, PLT, DXF, BMP etc supportive.
8, Especially applies RBI marking with light guild plate or acrylic, and cutting&engraving with paper, formboard, leathers and footwears.
Specification
| Model | QA-RF100 | QA-RF250 | QA-RF375 | |
| Laser Wavelength | 10.64μm | |||
| Laser Power | 100W | 250W | 375W | |
| Max.Marking Area | 200x200mm~1200x1200mm | |||
| Marking Speed | ≤7000mm/s | |||
| Repetition Precision | 0.01mm | |||
| Laser Frequency | 20kHz~200kHz | |||
| Min.Letter Size | 0.3mm | |||
| Power Consumption | ≤3kW | |||
| Laser Source | Coherent Laser Tube or Rofin Laser Tube | |||
| File Formats | PLT, DXP, BMP, JPG etc | |||
| Output Compatibility | AutoCAD, Photoshop, CorelDRAW etc | |||
| Power Supply | AC220V/25A/50Hz | |||
| Cooling Way | Circulation of Water Cooling | |||
| Dimension | Optical System | 2200*640*1600mm | ||
| Control System | 560*720*840mm | |||
| Industrial Chiller | 505*625*900mm | |||
| Price | ||||
Application
Suitable for almost all non-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastic, marble, jade, crystal, cloth etc. Wildly used in industries of arts &crafts, bamboo and wood products, advertising decoration, clothing, plate making for printing on leather, decorationand architectural model.
Sample
FAQ
1. What is the warranty of this machine?
The machine warranty is one year, whole life after service.
2. Can your engineers offer service overseas?
Yes, our engineers can go to your factory and offer technical surpport.
