High Precision Desktop Engraving Machine / Fiber Laser Etching Machine Customized

Place of Origin Wuhan City
Brand Name Questt
Certification CE,ISO,SGS
Model Number FL20M
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Export standard wooden cases
Delivery Time 15 days
Payment Terms T/T, Western Union, L/C, Paypal
Supply Ability 2900 sets / Year

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 10W / 20W / 30W / 50W Laser Type Fiber Laser
Special Device Dust Recycle System Marking Area 110x110mm
Speed 0-7000mm/M Service Overseas Service Is Available
High Light

fiber laser etching machine

,

laser marking equipment

Leave a Message
Product Description

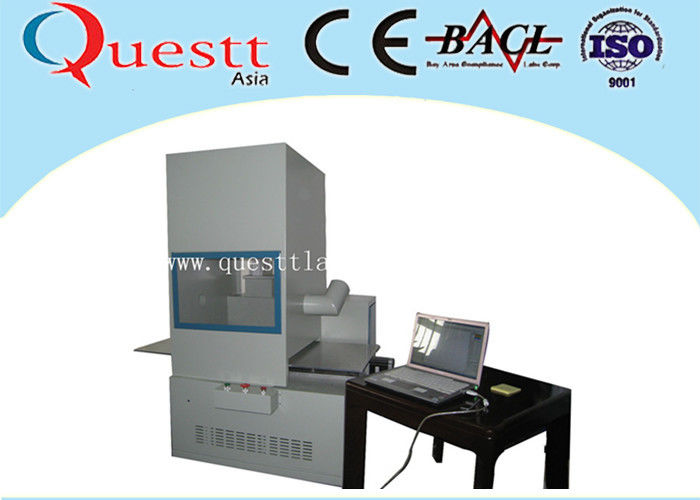

High Precision Sealed Fiber Laser printing Machine With dust recycle system



Machine system description


Quantum- FL30M Fiber Laser printing machine equip with a sealed work room, the room has add a dust recycle system, transporting the smell and dust outside door.



 it is special designed for clean workroom marking. There is no dust and smell last in the working room.





SS Iron Aluminum printing is speedy and precious. Marking has non-touched process, permanent effect, humanized operation, and stable running.



It can support file formats like PLT, DXP, BMP and so on.



24-hour non-stop running makes it meet the demand of massive industrialized production.





Data sheet



Product Specifications
Product Quantum-FL20M
Laser
Laser Wavelength 1000-1100nm
Laser Type Fiber Laser
Laser Output Power 20W
typical Laser Life Span 100,000hrs
Modulation frequency 20-100kHz
Max. Working Speed 7000mm/s
Lens F-Theta Lens
Working



Working Area 70x70mm , 110x110mm, 160x160mm, 175x175mm (standard) ,220x220mm
Precision 0.01mm
Control
Power supply AC220V, 50/60Hz, 1kVA (110-120V Optional)
Controller Computer with marking software
File Types PLT, DXF, AI, DST, BMP, JPG, TIF
Max. Operating Time 24hrs (recommend 1hr cool-down period)
Physical Characteristics
Weight (kg) 120kg
Guarantee: (see Ts&Cs on support page)
General Guarantee 24 Months from date of arrival at destination





Application



It can mark almost all kinds of materials. Metal and nonmetal.



Electronic parts,IC,tools,communication products.



The application can be every industry. Like machinery, education, air space etc.





Sample

High Precision Desktop Engraving Machine / Fiber Laser Etching Machine Customized 0



Features



Compared with normal machine, this one has a dust recycle system, transporting the smell and dust outside door. So your room will have no bad smell and dust .



1 High quality laser beam
2 Low running cost
3 High precision
4 Easy to install and operate
5 Excellent stability
6 Maintenance free
7 Completely sealed optical system

8 Dust and smell recycle system





FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 2 year



2 Q: What is the payment term?

A: T/T, L/C, Westen Union, etc.



3 Q: What is the service ?

A: Offer oversea service .



4 Q: How about the quality?

A: Germany high technoloy .



5 Q: Can we customize as special needs?

A: Yes.



Machine details



High Precision Desktop Engraving Machine / Fiber Laser Etching Machine Customized 1
