Product Details
Place of Origin: Wuhan City
Brand Name: Questt
Certification: CE,ISO,SGS
Model Number: FL20M
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard wooden cases
Delivery Time: 12 days
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 2990 sets / Year
Laser Power: |
10W / 20W / 30Watts |
Laser Type: |
Fiber Laser Source |
Special Device: |
Dust Recycle System |
Marking Area: |
175x175mm |
Speed: |
0-70 M/Min |
Service: |
Offer Overseas Service |
Laser Power: |
10W / 20W / 30Watts |
Laser Type: |
Fiber Laser Source |
Special Device: |
Dust Recycle System |
Marking Area: |
175x175mm |
Speed: |
0-70 M/Min |
Service: |
Offer Overseas Service |
20W Clean Sealed Fiber Laser etching Machine Dust recycle system without smell
Machine system description
Quantum- FL20M Fiber Laser printing machine equip with a dust recycle system, transporting the smell and dust outside door. So there in no dust and smell last in your working room, better for your health. This is a pipe connect the sealed work room with the ourdoor.
Marking has non-touched process, permanent effect, humanized operation, and stable running. Almost evey material is OK for printing on the surface. It can support file formats like PLT, DXP, BMP and so on.
24-hour non-stop running makes it meet the demand of massive industrialized production. 100,000 Hours long lifetime .
Data sheet
Product Specifications | |
Product | Quantum-FL20M |
Laser Wavelength | 1000-1100nm |
Laser Type | Fiber Laser |
Laser Output Power | 20W |
typical Laser Life Span | 100,000hrs |
Modulation frequency | 20-100kHz |
Max. Working Speed | 7000mm/s |
Lens | F-Theta Lens |
Working Area | 70x70mm , 110x110mm, 160x160mm, 175x175mm (standard) ,220x220mm |
Precision | 0.01mm |
Power supply | AC220V, 50/60Hz, 1kVA (110-120V Optional) |
Controller | Computer with marking software |
File Types | PLT, DXF, AI, BMP, JPG |
Max. Operating Time | 24hrs (recommend 1hr cool-down period) |
Weight (kg) | 120kg |
General Guarantee | 24 Months from date of arrival at destination |
Application
The application can be every industry. But this one is special designed for precision products like PCB boards, and all the non metal products which have bad smell during printing.
.

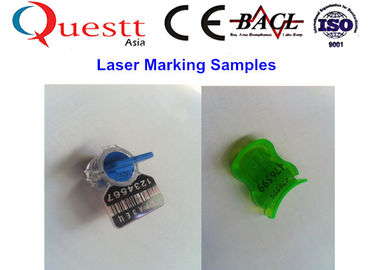

Sample
Features
Compared with normal machine, this one has a dust recycle system, it can transport the bad smell and dust outside door. So your room will have no bad smell and dust . This is much better for your health.
1 High quality laser beam
2 Low running cost
3 High precision
4 Dust and smell recycle system
5 Excellent stability
6 Maintenance free
FAQ
1 Q: What is the warranty of the machine?
A: The warranty is 2 year
2 Q: What is the payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is the service ?
A: Offer oversea service and online service
4 Q: How about the quality?
A: Germany high technoloy .
5 Q: Can we customize as special needs?
A: Yes. Any you want.

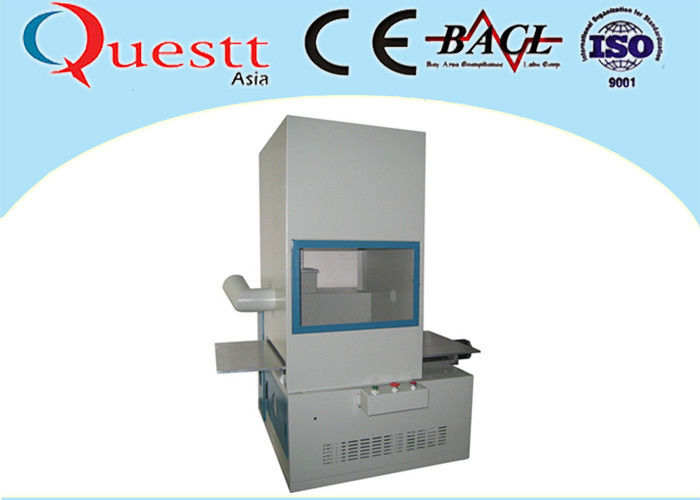

Machine details
