1000w Fiber Laser Cutting Machine For Metal Exchange Worktable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Power||380V||Work Size||1300 X 2500 Mm|
|Laser Type||Fiber Laser Source||Service||Offer Oversea Service|
Sheet Metal Cutting Machine,
Fiber Laser Cutting Machine

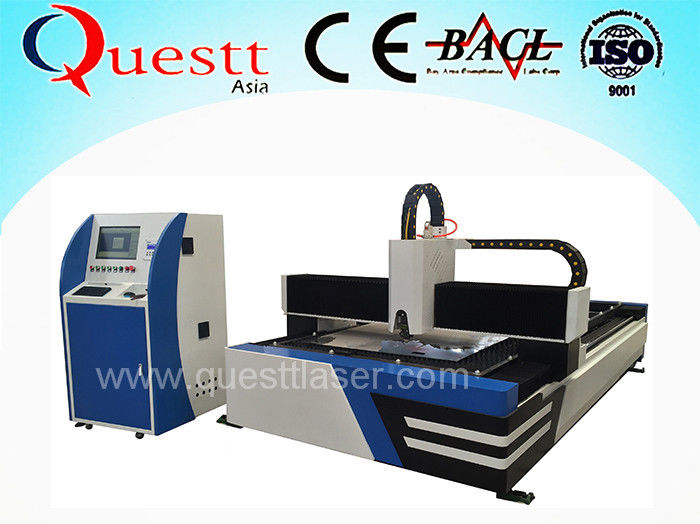

Big Power 1000w Fiber Laser Cutting Machine For Metal Exchange Worktable
FL1000-1325 Stainless steel laser cutting machine is high technology product intergreated of laser cutting, precision mechanism, digital control technical, adopting with big power laser source with international advance technology.
1. IPG 1000W Fiber laser source from Germany
2. Laser Power Supply
3. Tofei Water cooling system
4. LaserMech Z- float Laser Cutting head
5. High Precision Ball Screw CNC Worktable 1.3M*2.5M
6. NC Edit Laser Cutting software and control Card
7. YasKawa driver from Japan
8. Fume Extraction and Dust Collector System
9. Air- dryer and Compressor
1. Air condition for control cabinet:Cooling for Electronic parts and Laser Power Supply, make sure control cabinet temperature at 26 degree, extend the life of electronic devices and save the power for the factory.
2. High electro-optical conversion efficiency: Fiber laser can convert up to 30 % electrical energy into laser energy. High energy conversion makes fiber laser more energy efficient.
3. Low running cost: The cutting cost by air is only 1.95usd/hour ;
4. fiber laser wave length is 1060nm, 1/10 of CO2 laser wave length, high quality output laser ray, high power density,easy to absorb by metal, great cutting and welding ability
5. laser path is transmitted by fiber, no optical lens, simple laser path, stable structure, outside optical path is maintenance-free
|Laser output power||1000W|
|Laser wavelength||1070 nm|
|Laser type||Fiber laser souce IPG|
|Max cutting speed||18m/min|
|Max cutting thickness||3-6mm according to material|
|Output energy regulating||10%~100%|
|Input electric power for laser||≤2KW|
|Type of cooling||Water cooling|
|Drive mode||Imported servo motor|
|Transmission mode||Imported high precision Rack and Pinion|
|Max-range for cutting||3000mm×1500 mm/ 2500x1300mm|
|Contour dimension||4270mm×2420 mm×1750 mm|
|Material / Laser Power||500W||750W||1000W||2000W||3000W||4000W|
Widely used for metal sheet processing,advertising trademark, advertising character, high/low voltage electrical cabinet, mechanism parts,kitchenware,cars, mechanical,metal craftwork,saw blade, electronic parts, eye glasses,spring, circuit board, kettle,medical microelectronics, hardware, knives tool,measurement, instrument,etc
Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back cost should be paid by purchaser.
Progressing Solution Design
According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
Training to install:
Option A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting
Option B. You can come to Questt factory for training. Questt will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 7 working days
Option C. Our engineer will do a onsite instruction training service at your site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before dispatch. It is better to arrange a translator for both of our engineer during the training period. Training Time: 7 days
