30W Flying Laser Marking Machine For Bottles On Conveyor Automation Line

Place of Origin China
Brand Name Questt
Certification CE ISO BACL
Model Number Quantum - FLM30
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Anti-water Plywood cases
Delivery Time 5 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 4000 sets / Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 30W Service Offer Overseas And Online Service
Power Supply 110/220V Speed 0-7000 Mm/s
Certificate CE Application Equip On Auto Producing Lines
High Light

fiber laser etching machine

,

laser marking equipment

Leave a Message
Product Description

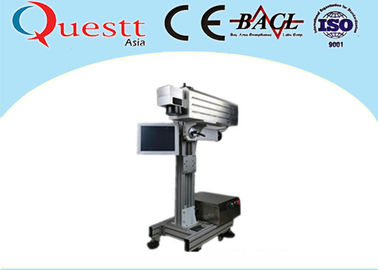

30W Flying Laser Marking Machine For Bottles on Conveyor Automation Line

Introduction


Quantum - FLM30 Flying Laser Marking Machine is a flying type laser marker for automation production lines, like water bottles producting conveyor, we can mark the date and series numbers on the cover or body of the bottles.



It is fiber laser source, so can etching and write on all kinds of materials for different products.



This flying type laser printer machine can support all kinds of file formats. Vector file like DXF,PLT, AI etc.



The laser marker can work 24-hour without stopping, that make it suitable for automation industrialized production lines, increase the producing efficiency.



Technical data



Product Specifications
Product Quantum-FLM30 Flying Laser Marking Machine
Purpose Marking printing engraving etching
Laser
Laser Wavelength 1000-1100nm
Laser Type Fiber laser source
Laser Output Power 30W
typical Laser Life Span 100,000hrs
Modulation frequency 20-100kHz
Max. Working Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Working Area
Beam Diameter/Quality M2<1.2
Working Area 70x70mm, 110x110mm (standard), 160x160mm, 250x250mm
Repeatability 0.01mm
Positioning accuracy 0.01mm
Min Line Width 0.01mm
Marking/Cutting Depth 0.01-0.2mm (depending on material)
Control
Cooling Air cooled
No. Axis Z Axis (Manual)
Rotation Optional(Automatic only)
Power supply AC220V, 50/60Hz, 1kVA (110-120V Optional)
Controller Computer with marking software
USB 2.0 Compatible YES
File Types PLT, DXF, AI, DST, BMP, JPG, TIF
Max. Operating Time 24hrs (recommend 1hr cool-down period)
Physical Characteristics
Dimensions 680x650x1100mm
Weight (kg) 95kg
Guarantee:
General Guarantee 12 Months from date of arrival at destination
Laser Source 2000hrs/3 months - LAMP PUMPED (Except Smart Series)
  20,000hrs/18 months - Smart Series
  10,000hrs/12 months - Diode Pumped
  100,000hrs/2 years - Fiber LASER





Applications



Specially marking for automation conveyor production lines, like water bottles



It can print many kinds of metal materials and non-metallic materials, such as plastic,electroplates,metal-coated materials, rubbers, ceramics,mobile button,plastic transparent button.

For industry, almost every industry will use such laser machines.



Samples



30W Flying Laser Marking Machine For Bottles On Conveyor Automation Line 0









Different angle of the machine



30W Flying Laser Marking Machine For Bottles On Conveyor Automation Line 1

30W Flying Laser Marking Machine For Bottles On Conveyor Automation Line 230W Flying Laser Marking Machine For Bottles On Conveyor Automation Line 3
