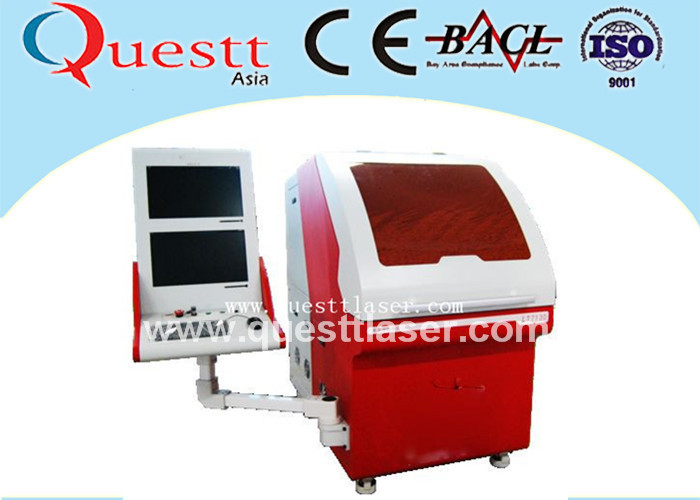

Laser trimming Machine for Automobile Sensor

Laser trimming Machine for Automobile Sensor

  • High Light

    Hospital Laser trimming Machine

    ,

    Automobile Sensor Laser trimming Machine

    ,

    Laser Trimming Equipment

  • Application
    Public And Hospital
  • Dimension
    9500x1500x1900mm
  • Materials
    Nonwoven
  • Weight
    5T
  • Warranty
    1 Year And Permanent Service
  • Service
    Oversea Service
  • Place of Origin
    China
  • Brand Name
    Questt
  • Certification
    ISO CE
  • Model Number
    QA-KZJ95S
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Wooden case
  • Delivery Time
    10 -20 days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    2000 sets each year

Laser trimming Machine for Automobile Sensor



     Laser trimming Machine for Automobile Sensor



Introduction:



The laser resistance trimming machine of Wuhan Questt ASIA Technology Co., Ltd. is specially developed and produced for the thick film circuit and thin film circuit industry. Source trimming (resistance adjustment) and active trimming (circuit function adjustment) are mainly used for high-precision trimming of thin-film, thick-film, hybrid integrated circuits and various electronic modules, involving the following industries:

1.Automotive Electronics

2.Sensors

3.Communication electronics

4.Military industry is in scientific research

5.Medical

6.Industrial Electronics

7.Aerospace

The laser resistance trimming machines produced by our company are independently developed from the core measurement control system, software system, etc., and have all independent intellectual property rights, which can provide customers with comprehensive laser resistance trimming application solutions.



Main configuration of a single device

serial No . Part Name Brand Specifications
1 End-Pumped Fiber-Coupled Solid-State Lasers 5W@10K
2 Optical system RONASMITH
3 custom imaging lens RONASMITH
4 Image recognition system Belgium:EURESYS
5 Scanning mirror SCANLAB-¢10mm
6 step-and-repeat system HIWIN Linear Motor 300*300
7 power supply MEANWELL
8 CCD coaxial monitoring Wuhan Questt
9 Measurement control system Wuhan Questt
10 Dedicated software system Wuhan Questt
11 Industrial control computer ADLINK
12 work platform Granite for Micro-processing
13 Dust purification device Shanghai
14 Negative pressure adsorption system SMC
15 Probe Soldering Station Wuhan Questt


Technical parameter

1.Laser system

  • lLaser wavelength: 1064nm
  • lAverage laser power: 6W@10KHZ (TEM00)
  • lTypical spot size: 30-40µm
  • lFocus mode: computer program control

2.Laser beam positioning system

  • lLaser scanning range: 60mm X 60mm
  • lRepeat positioning accuracy: 2.5µm
  • lLaser beam motion resolution: 1µm
  • lMaximum scanning speed: 7000mm/s
  • lPositioning method: programmable positioning or image recognition automatic positioning

3. Image surveillance system

  • lMonitoring method: laser coaxial monitoring
  • lProprietary technology: achromatic technology, laser and imaging overlap within the format
  • lMonitoring field of view: 4-6mm (diagonal)
  • lLighting source: LED lighting

4. measuring system

  • lResistance measurement method: add current to measure voltage

Four-wire system, two-wire system computer program control

  • lResistance measurement mode: three-speed mode setting, programmable control
  • lResistance measurement range: 0.1Ω-100MΩ (16bit resolution)
  • lResistance measurement accuracy:

0.1Ω< Rx < 100Ω ±0.02% + 0.5% / Rx

100Ω< Rx < 100KΩ ±0.02%

100KΩ< Rx < 100MΩ ±0.02% + 0.05% * Rx

  • l Resistance measurement speed: 25µs
  • lDC voltage resolution: 0.16µV (under 10mV full scale condition)
  • lProbe board: 48PIN, any definition, compatible with ESI imported equipment
  • lProbe board movement: computer program control
  • lVoltage measurement range: ±100mV~ ±10V 16bit resolution (other ranges are optional)

5. Computers and Software Systems

  • lSoftware programmable, can flexibly realize automatic operation, meet resistance adjustment and circuit function adjustment
  • lDatabase function, all resistance adjustment data can be written to the database for storage, with good traceability
  • lThe resistance can be controlled by manual single-chip control, and it can also be automatically adjusted by continuous matrix (continuous chip processing)
  • lAccurate resistance adjustment can be performed by setting the laser dot resistance adjustment method
  • lAccording to the difference of the initial resistance value, different resistance adjustment parameters can be selected to perform resistance adjustment

6. Step-and-repeat mechanical motion system

  • lMovement mode: linear motor motion system
  • lMotion range: 300mm*300mm
  • lMaximum ceramic substrate size: 150mm*150mm
  • lMotion resolution: 1µm
  • lRepeat accuracy: ±1µm
  • lPositioning accuracy: ±10µm
  • lMaximum speed: 1000mm/s (no load)
  • lMotion acceleration: 1.5G

7. Other technical indicators

  • lCooling method: air cooling
  • lPower supply voltage: 220V AC Air pressure: <0.4MPa Power consumption of the whole machine: 2500WLaser trimming Machine for Automobile Sensor 0
