1000W Precise Fiber Laser Cutting Machine For Metal Sheet
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Work Talbe | Sealed | Laser | Fiber Laser Source |
|---|---|---|---|
| Power | 1000W | Working Area | 600x600mm |
| Control System | CNC | Service | Offer Overseas Service |
| High Light | 1000W Laser Cutting Machine,600x600mm Fiber Laser Cutting Machine |
||
Product Description
1000W Precise Fiber Laser Cutting Machine For Metal Sheet
Overview
QA-FL1000P Precise fiber laser cutting machine Adopt a 1000W fiber laser source.Mini cabinet to save shipping cost.
The control system is CNC. The laser cutter has equipped with a sealed working table to protect the workers when operate the machine.
The laser cutter machine can reach Europen safety standard. Best choice for high safety request customers.
Laser iber laser cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
The iber laser cutting machine is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CN programe,can process any graphics and text.
Parameter datas
| Laser output power | 1000W |
| Laser wavelength | 1080 nm |
| Laser medium | Glass fiber with rate-earth element |
| Repeat accuracy | ±0.01mm |
| Max cutting speed | 18m/min |
| Max cutting thickness | 3-6mm according to material |
| Output energy regulating | 10%~100% |
| Input electric power for laser | ≤2KW |
| Type of cooling | Water cooling |
| Drive mode | Imported servo motor |
| Transmission mode | Imported high precision Rack and Pinion |
| X Y axis movement | 600mm×600 mm (Optional: 200x200mm,300x300mm,400x400mm,500x500mm) |
| Z axis movement | 100mm |
| Power supply | Single phase 220V/50HZ |
| Contour dimension | 1900mm×1550 mm×1800 mm |
| Weight | 800kg |
Samples

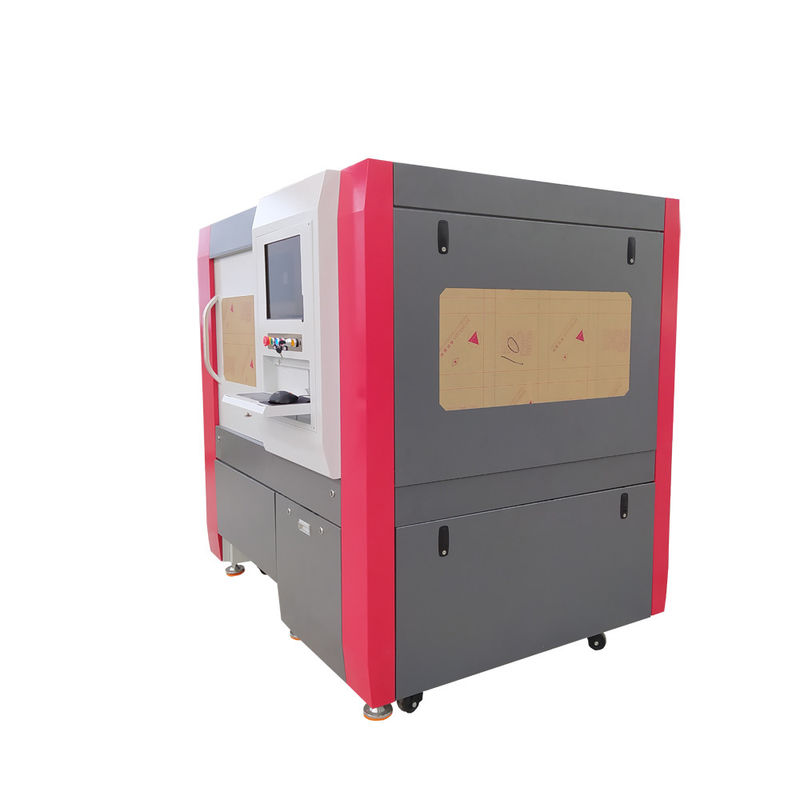

Machine outlook
FAQ
1 Q: What is the warranty of the laser cutting machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
5 Q: What is the brand of laser source?
A: Raycus or Max.
