15W CNC Precision UV Laser Cutting Engraving Machine For PCB Glass

China 15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass supplier
15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass supplier 15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass supplier 15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass supplier 15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass supplier 15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass supplier

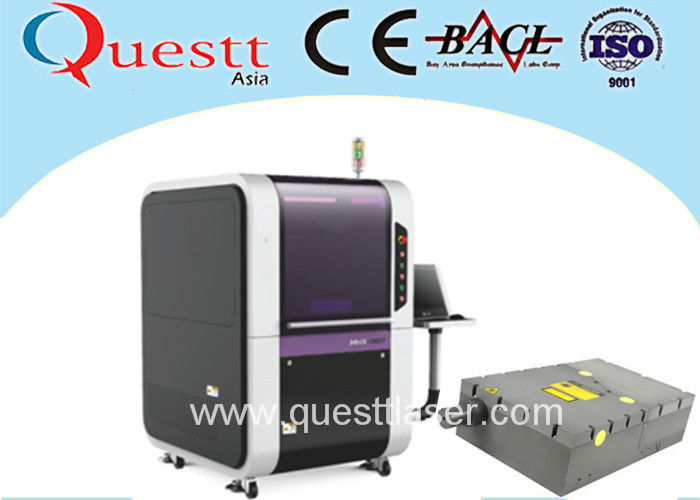

Large Image :  15W CNC Precision UV Laser Cutting Engraving Machine For PCB Glass

Product Details:

Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-UV15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export Wood cases
Delivery Time: 25 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1200 Sets/Year
Contact Now
Detailed Product Description
Laser Wavelength: 355nm Service: Overseas Service Available
Power Supply: 110V, 220V 50 / 60HZ Axis: X Y Z 3 Axis
Laser Power: 15W Cooling: Water Cooling

15 Watt CNC laser cutting Engraving Machine For PCB Glass High precision



Descriptions



QA-UV15 CNC laser cutting Engraving Machine is a sealed type UV alser cutting and engraving machine. The UV laser marker is controlled by computer.



An improved cavity design and compact design makes its beam quality excellent, lifetime longer,and running more reliable. It can meet the most of demands in the industrial laser processing under the rigorous conditions. Its excellent beam quality and long term stability makes it suitable especially for FPC cutting.

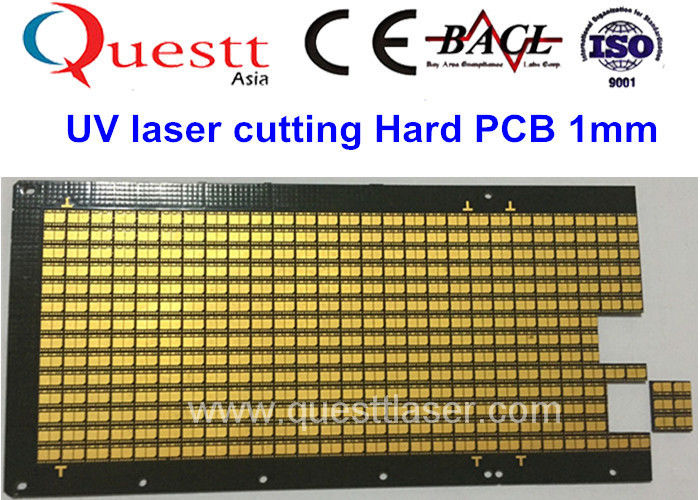

PCB cutting



Not only can the laser beam precisely remove metal surface layers, but it can also cut through the substrate material. The number of laser pulses required depends on the material. The UV laser beam can cut individual PCB out of larger panels via tab cutting or make full-section cuts through thin substrates without damaging any tracks or components near the cutting edge. The laser can also separate rigid sections from rigid-flex components or cut out pockets in multi-layers.



Pyralux material coated with copper on both sides. The new stabilization enables double-sided ablation of the copper layers without damaging the substrate material.

15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass



Feature



1 Long lifetime working
2 very high quality laser beam



3 Rotate working talbe as your design
4 CNC control system


5 Exposing graphics can be promptly and freely amended
6 high ratio photo translate system




Specification



Model No. QA-UV15 UV cnc engraving machine
Laser type UV laser
The average output power 15W
Laser wavelength 355nm
Beam Quality(M2) 1
Frequency 20KHz-200KHz
Repetitive accuracy 0.005mm
Min Linear Width 0.01mm
Marking Depth 0.01-0.2mm
Max Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Standard marking 175*175mm
The optional scope of marking 70×70mm / 110x110mm / 175×175mm / 220x220mm
Consumed power <500W
File format PLT, DXF, AI, DST, BMP, JPG, TIF
Power Supply 220V/50Hz/15A (110-120V Optional)
Cooling system Air cooling
Grosss weight 200kgs



Application



Applications include marking text, barcodes, and graphics/pictures on plastics, metals, food packaging, clothing, jewelry, ICs, etc.



All the material which fiber laser can not do, or finish not good. Most non metal materials.

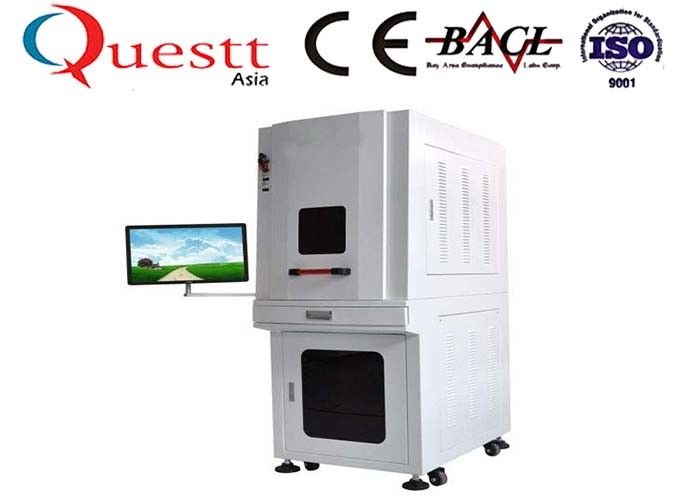

UV laser device



15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass





FAQ



1 Q: What is the warranty ?

A: The warranty is 2 year, but we offer whole life after-sale service.



2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.



3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .



4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.



5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.

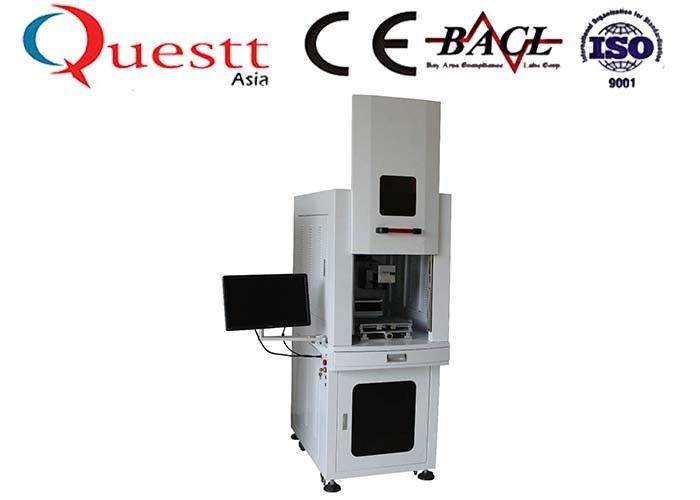

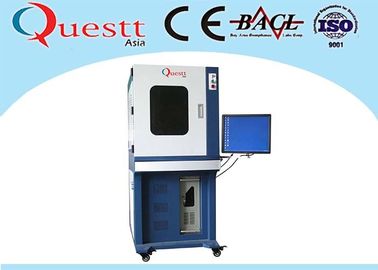

Machine outlook

15W CNC Precision UV  Laser Cutting Engraving Machine For PCB Glass
