Small Size Angle 3D Crystal Laser Engraving Machine

Small Size Angle 3D Crystal Laser Engraving Machine

  • High Light

    Portable Laser Engraving Machine


    3D Laser Etching Machine


    Angle 3D Crystal Laser Engraving Machine

  • Material
  • Crystal Size
    100x100x80 Mm
  • Laser Type
    Green Laser
  • Controller
  • Photo
    2D / 3D
  • Laser Wavelength
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    wood box
  • Delivery Time
    16 day
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    999 pieces per year

Small Size Angle 3D Crystal Laser Engraving Machine

3D Crystal Laser Engraving Machine small size Angle - 2000A




1. Angel-2000A rapid scanner laser subsurface engraving machine could engrave 2D, 3D image in crystal and glass production.

2. It is used to engrave 2D,3D images or individual figures in crystal and glass products.

3. It could work for a large scale production of 2D and 3D animals & plants, architectures, models

such as car, boat, airplane etc and 3D scene show, glass marking.



1. Angel-2000A rapid scanner laser subsurface engraving machine adopts the advanced galvanom

eter scanner technology together with the 2KHz diode-pumped Nd: YAG frequncy doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate an

d lively. The Key parts of the apparatus mainly come from Germany and the USA.

2. It is more reasonable and steady for long –term production. This machine has the software dev ellped independetly, which shall laser 2D image like 3D impression.

3. It adopts original technology, and the engraving range is large.

4. This machine is suitable for individual production and batch fast process.


5. Just one machine could

be satisfied with capacity for both storefronts network distribution and elecgtric-business distrib ution. It comes laser to greatly advance laser speed. It adopts incorporated structure, and it is good fluid, suited to use in Supermarket.







Laser /Wavelength semiconductor diode 532 nm
Diode lifetime 25000 Hours
Max working scope 80*80*100mm
Engraving dot pitch 0.07-0.12mm
Engraving spot size 40-80μm
Max engraving speed 3000 dots/s
Resolution 1500dpi
Z axis screw rod accuracy 0.02mm/300mm
Z axisrepositioning accuracy <3μm/300mm
Total Power 500W
Dimension before packing 700mm*290mm*530mm(L*W*H)
Dimension after packing 900mm*400mm*700mm (L*W*H)
Net weight 63Kg
Gross weight 72Kg
Cooling system Air cooling
Temperature 15℃~30℃
Environment humidity <85%, non-dewfall
Air clean,non-corrosiveness gas
Operation system Windows 2000,Windows XP,win7 32bit
Voltage 100-240VAC,5A
Frequency 50/60HZ
Engraving Material Crystal glass etc




One year from the date the machine arrives the destination Except consumable part of the lamp and damage artificially. The seller is responsible for offer free fittings in the warranty period (the buyer has to send the damaged fitting to seller.)


The artificial damage in the warranty period and damage after warranty period, the seller offers paid service. If the customer needs the engineer to supply the service oversea, all the expends will be paid by the customer.




Small Size Angle 3D Crystal Laser Engraving Machine

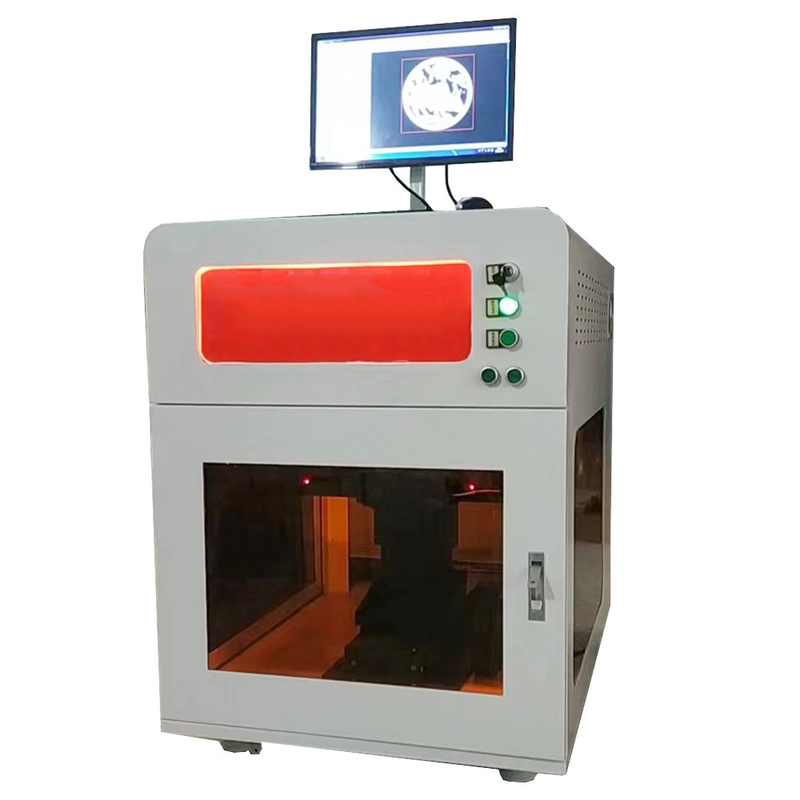

Machine overview

Small Size Angle 3D Crystal Laser Engraving Machine
