Big Size Glass 3D Crystal Laser Engraving Machine 3W Green Laser 800x1200x150mm

China Big Size Glass 3D Crystal Laser Engraving Machine 3W Green Laser 800x1200x150mm supplier
Big Size Glass 3D Crystal Laser Engraving Machine 3W Green Laser 800x1200x150mm supplier Big Size Glass 3D Crystal Laser Engraving Machine 3W Green Laser 800x1200x150mm supplier

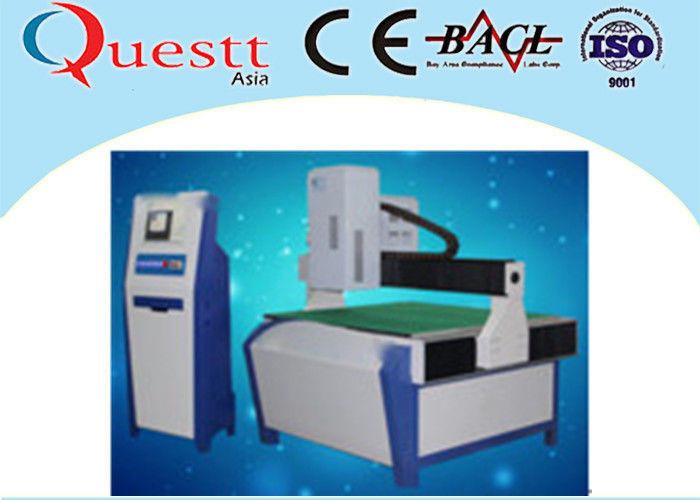

Large Image :  Big Size Glass 3D Crystal Laser Engraving Machine 3W Green Laser 800x1200x150mm

Product Details:

Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: Angel-2000C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Exporting Plywood Box
Delivery Time: 3 - 14 day
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5400 sets per year
Contact Now
Detailed Product Description
Crystal Size: 800x1200x150 Mm Photo: 2D / 3D
Warranty: 1 Year And Permanent Service Optional Accessory: 3D Camera
Laser Power: 3W Material: Crystal Glass

Big size glass Crystal 3D Laser Engraving Machine 3W green laser 800x1200x150mm

Introduction


Angel-2000C Crystal 3D Laser Engraving Machine could work for a large scale production of 2D and 3D animals & plants, architectures, models such as car, boat, airplane etc and 3D scene show,glass marking.

Its technical parameters are among those of the top performance laser engraving systems.



It adopts the advanced galvanometer scanner technology together with the 2KHz /4Kz diode-pumped Nd: YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively. The Key parts of the apparatus mainly come from Germany and the USA.

Features



1. High quality laser beam



2. Low running cost



3. Easy to install and operate



4. Excellent stability



5. Maintenance free (apart from occasional lubrication of moving parts)



6. Completely sealed optical system



Specification



Model

Angle-2000B



Angle-2000B1



Angle-2000C



Laser /Wavelength

semiconductor diode

532 nm

semiconductor diode

532 nm

semiconductor diode

532 nm

Laser power 3W 3W 3W
Diode lifetime 25000 hours 25000 hours 25000 hours
Max working scope 150*200*100mm 300*400*130mm 800*1200*150mm
Engraving dot pitch 0.07-0.12mm 0.07-0.12mm 0.07-0.12mm
Engraving spot size 40-80μm 40-80μm 40-80μm
Max engraving speed

2500 dots/s

3800 dots/s

2500 dots/s

3800 dots/s

2500 dots/s

3800 dots/s

Resolution 800-1200 dpi 800-1200 dpi 800-1200 dpi
Batch processing yes yes yes
3 axis screw rod accuracy 0.02mm/300mm 0.02mm/300mm 0.02mm/300mm
3 axis repositioning accuracy <3μm/300mm <3μm/300mm <3μm/300mm
Total Power 800 W 1000 W 1500 W
Cooling system Air cooling Air cooling Air cooling
Temperature 15℃~30℃ 15℃~30℃ 15℃~30℃
Environment humidity <85%, non-dewfall <85%, non-dewfall <85%, non-dewfall
Air clean, non-corrosiveness gas clean, non-corrosiveness gas clean, non-corrosiveness gas
Operation system Windows 2000,Windows XP,win7 32bit Windows 2000,Windows XP,win7 32bit Windows 2000,Windows XP,win7 32bit
Voltage

100-240VAC,5A

50/60HZ

100-240VAC,5A

50/60HZ

100-240VAC,5A

50/60HZ

Laser Frequency 2000 HZ 2000 HZ 2000 HZ
Material Crystal glass etc Crystal glass etc Crystal glass etc
Control system with high speed scanner +X+Y+Z (5 axis) with high speed scanner +X+Y+Z (5 axis) with high speed scanner +X+Y+Z (5 axis)
Software self reseach software for 3D, 2Ddots cloud,and for control machine self reseach software for 3D, 2Ddots cloud,and for control machine self reseach software for 3D, 2Ddots cloud,and for control machine
Dimension before packing 500mm*650mm*780mm(L*W*H) 700mm*900mm*970mm(L*W*H)

1650*1850*1750mm 600*450*160mm(L*W*H)



Dimension after packing 620mm*820mm*970mm(L*W*H) 830*1170*1040mm(L*W*H) 1700*2000*1800mm
Weight 130Kg 230Kg 385KG



Warranty



One year from the date the machine arrives the destination Except consumable part of the lamp and damage artificially. The seller is responsible for offer free fittings in the warranty period (the buyer has to send the damaged fitting to seller.)



The artificial damage in the warranty period and damage after warranty period, the seller offers paid service. If the customer needs the engineer to supply the service oversea, all the expends will be paid by the customer.



Samples
Big Size Glass 3D Crystal Laser Engraving Machine 3W Green Laser 800x1200x150mm

Machine overview
Big Size Glass 3D Crystal Laser Engraving Machine 3W Green Laser 800x1200x150mm
