Product Details
Place of Origin: China
Brand Name: Questt
Certification: CE ISO BACL
Model Number: Quantum - FLM30
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Anti-water Plywood cases
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 3220 sets / Year
Laser Power: |
30W |
Service: |
Offer Overseas Service |
Power Supply: |
110/220V |
Wave Length: |
1064nm |
Certificate: |
CE |
Company Type: |
Factory |
Laser Power: |
30W |
Service: |
Offer Overseas Service |
Power Supply: |
110/220V |
Wave Length: |
1064nm |
Certificate: |
CE |
Company Type: |
Factory |
Quantum - FLM30 Online Laser Marking Machine is a flying type laser marker for automation production lines.
This laser marker can engrave on all kinds of products and materials.
The laser printer machine can support all kinds of file formats.
The laser system can work 24-hour without stopping, that make it suitable for online industrialized production.
Technical data
| Product Specifications | |
| Product | Quantum-FLM30 Online Laser Marking Machine |
| Purpose | Marking printing engraving etching |
| Laser | |
| Laser Wavelength | 1000-1100nm |
| Laser Type | Fiber laser source |
| Laser Output Power | 30W |
| typical Laser Life Span | 100,000hrs |
| Modulation frequency | 20-100kHz |
| Max. Working Speed | 7000mm/s |
| Galvanometer | Yes |
| Lens | F-Theta Lens |
| Working Area | |
| Beam Diameter/Quality | M2<1.2 |
| Working Area | 70x70mm, 110x110mm (standard), 160x160mm, 250x250mm |
| Repeatability | 0.01mm |
| Positioning accuracy | 0.01mm |
| Min Line Width | 0.01mm |
| Marking/Cutting Depth | 0.01-0.2mm (depending on material) |
| Control | |
| Cooling | Air cooled |
| No. Axis | Z Axis (Manual) |
| Rotation | Optional(Automatic only) |
| Power supply | AC220V, 50/60Hz, 1kVA (110-120V Optional) |
| Controller | Computer with marking software |
| USB 2.0 Compatible | YES |
| File Types | PLT, DXF, AI, DST, BMP, JPG, TIF |
| Max. Operating Time | 24hrs (recommend 1hr cool-down period) |
| Physical Characteristics | |
| Dimensions | 680x650x1100mm |
| Weight (kg) | 99kg |
| Guarantee: | |
| General Guarantee | 12 Months from date of arrival at destination |
| Laser Source | 2000hrs/3 months - LAMP PUMPED (Except Smart Series) |
| 20,000hrs/18 months - Smart Series | |
| 10,000hrs/12 months - Diode Pumped | |
| 100,000hrs/2 years - Fiber LASER | |
Applications

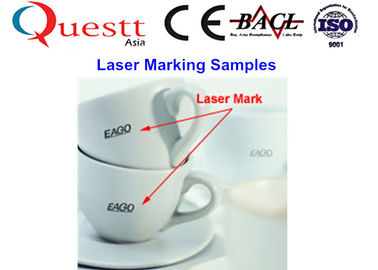

Specially marking on Ceramic Cups.
It can mark many metal materials and non-metallic materials, such as plastic,electroplates,metal-coated materials, rubbers, ceramics,mobile button,plastic transparent button.
Samples
FAQ
1 Q: What is the warranty of the machine?
A: The warranty is 1 year
2 Q: What is the payment term?
A: T/T, L/C, Westen Union, PayPal etc.
3 Q: What is the service ?
A: oversea service and whole life after sale service.
4 Q: How about the quality?
A: Germany high technoloy with best quality spare parts.
5 Q: Can we customize as special needs?
A: Yes, you can.
Different angle of the machine
