100W Laser Rust Removal Equipment Reomver Metal Rust Painting Oxide Coating
Contact me for free samples and coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Raycus Fiber Laser Source | Laser Power | 50-200W |
|---|---|---|---|
| Wave Length | 1.064 Um | Sevice | Wholelife |
| Certificate | CE FDA | Gurranty | 24 Months |
| Width | 120mm | Cable Length | 2 Meter |
| Type | Case Type | Keyword | Cleaning Equipment |
| High Light | laser rust removal equipment,laser rust and paint remover |
||
Product Description
Laser Rust cleaning equipment 100W reomver metal rust painting oxide coating
Description:

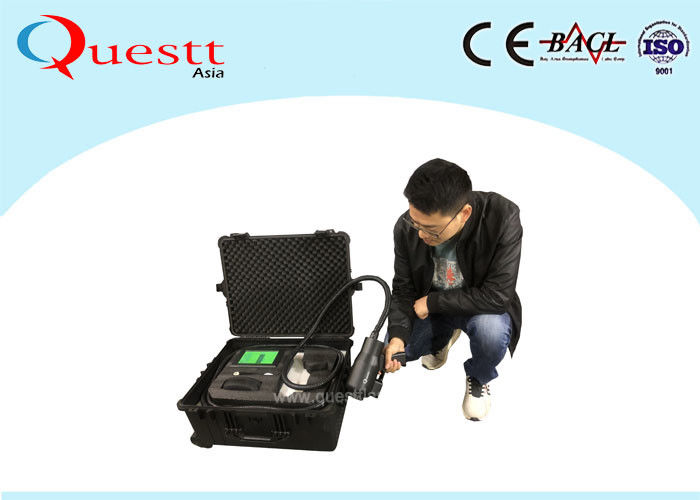

QA-LC100 Laser cleaning equipment is a case type machine, which is specially designed for Chinese Army. So the quality is really good.
The outlook is the same as a travle case , which is very easy to take along and move, the total weight is only 40kgs. This special design is good for outdoor cleaning job.
Laser dry cleaning method:
Use pulses laser to clean rust directly, it will generate vibration after the laser energy is absorbed by the base or particles, then seperate the base and comtaminant. See below photo:
This newest design laser cleaning equipment can be customized according to customer requirements. The fiber calbe length also can change and make it longer to 6 meter.
For laser power, we have 50W,70W,100W to choose. For the machine outlook, we can also make sealed bench top, hand held ones to choose. You can hold the laser head in hand, and removel the dust from any corner.
Characteristic:
1. Laser cleaning has no grinding, non-contact
2. Rapid, clean and accurate cleaning
3. No damage to substrate;
4. High cleaning precision,
5. Can be continous working for a long time
6. simple operation;
7. suitable for various materials
Specifications:
Laser Cleaning Machine Rust Removal.pdf
| Model | QA-LC50 | QA-LC100 | QA-LC200 | QA-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 50W | 100W | 200W | 500W |
| Fiber cable L | 3 M | 3 M | 5 M | 20M |
| Pulse Energy | 1 mJ | 1.5 mJ | 2 mJ | 100 mJ |
| Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
| Frequency | 1-2000KHz | 1-2000KHz | 1-2000KHz | 2-50KHz |
| Clean speed | ≤5 M²/Hour | ≤10 M²/Hour | ≤15 M²/Hour | ≤50 M²/Hour |
| Scann speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air/Water cooling | Water cooling |
| Dimension | 450*350*500 | 650*250*560 | 900*450*1000 | 1120*600*1100 |
| Weight | 30Kg | 40Kg | 120Kg | 230Kg |
| Beam width | 10-70mm | 10-70mm | 10-100mm | 10-170mm |
| Optional | Manual | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220/110V, 50/60HZ | Single Phase 220/110V, 50/60HZ | Single Phase 220/110V, 50/60HZ | Single Phase 220/110V, 50/60HZ |
Application scope:
All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc
all the old and durty items
FAQ
1 Q: What is the warranty of the machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
