Pulse 200w 300w suitcase fiber laser cleaning machine rust removal machine

Name: Pulse 200w 300w suitcase fiber laser cleaning machine rust removal machine
Brand: Questt
SKU: QA-LC200S
Rating: 4.9 (153 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Questt

Certification: ce

Model Number: QA-LC200S

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Wooden case and carton case

Delivery Time: 15-20 WORDAYS

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:

Pulse 200w 300w suitcase fiber laser cleaning machine rust removal machine

100W 200W 300W Automobile Industry Fiber Laser Cleaner for Surface resin, oil stains, stains, and dirt cleaning Description

Introduction

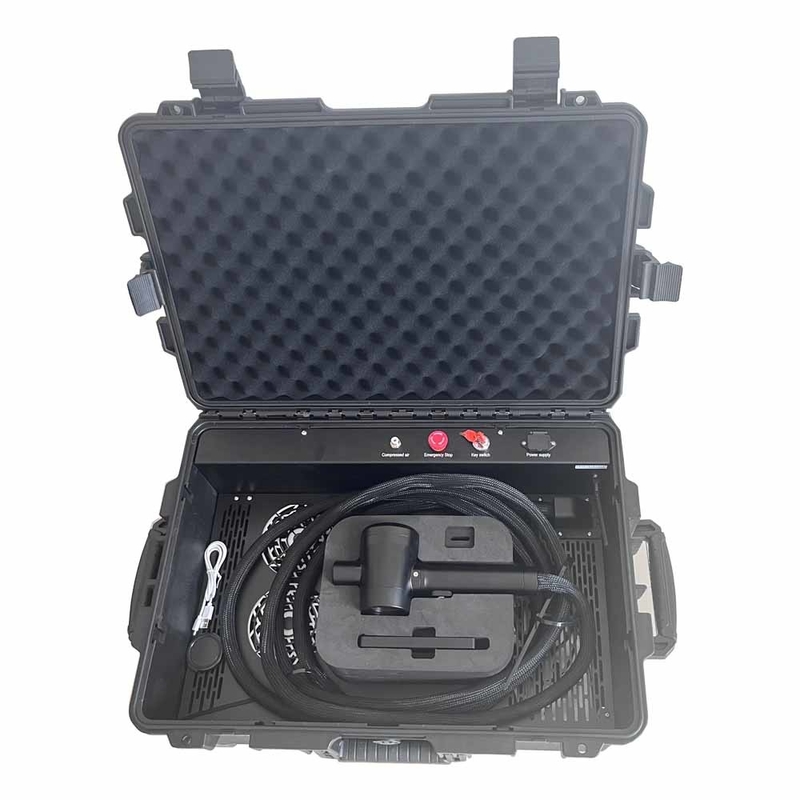

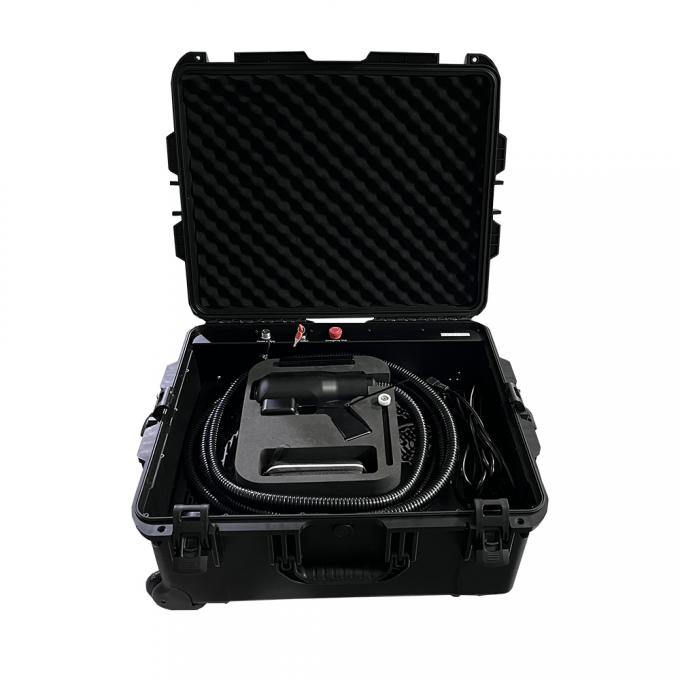

100W 200W 300W Automobile Industry Fiber Laser Cleaner for Surface resin, oil stains, stains, and dirt cleaning is a suitcase type machine.The weight is only 33kg, the outlook is the same as a travel case , which is very easy to take along and move. Touch screen controller is as easy to operate as a mobile phone. We also approved to add Phone APP control system.
The cleaning process is very simple, strong and rapid. 100W 200W 300W Automobile Industry Fiber Laser Cleaner for Surface resin, oil stains, stains, and dirt cleaning can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and
other target materials with high efficiency, high performance, low cost and without harm to the base material.

100W 200W 300W Automobile Industry Fiber Laser Cleaner for Surface resin, oil stains, stains, and dirt cleaning Features

1. Compact dimensionand light weight
2. 8 kinds of cleaning modes
3. Self-developed cleaning system
4. Good cooling and ventilation effect
5. Easy maintenance
6. High cleaning efficiency
7. High-Tech non-contact cleaning

Configuration Detail

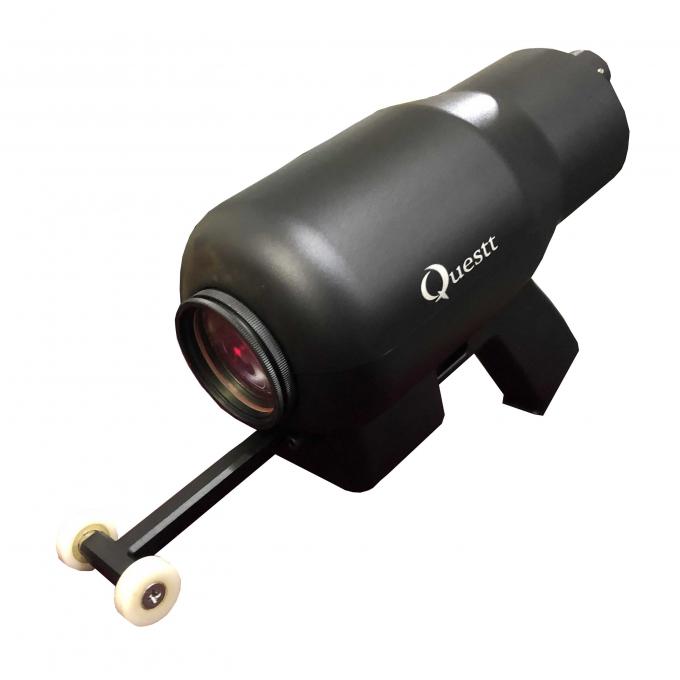

Laser cleaning head

The dual axis head, light weight to carry, easy to operate, equipped with roller

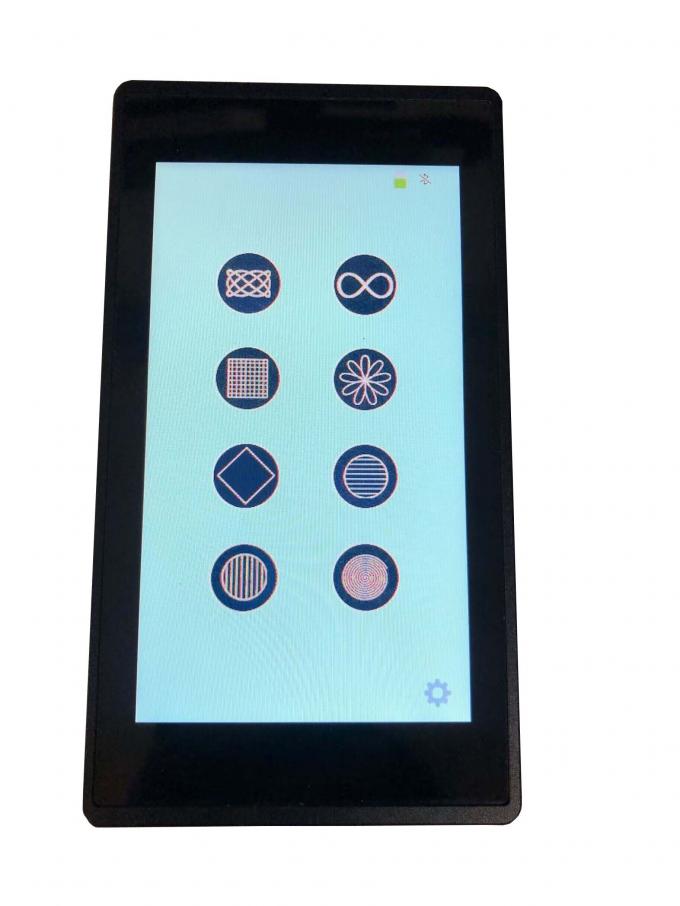

Touch screen controller

Wireless touch operation screen, small size like mobile phone, light weight. There are 8 kinds of preset modes.

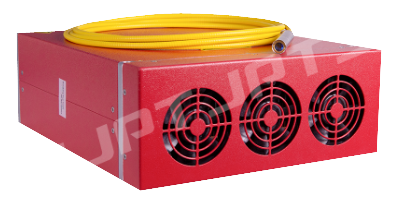

Laser source

JPT or GZ pulse laser source, maximun monopulse energy is 5mJ. The lifetime is 100000hours, warranty is 2 years.

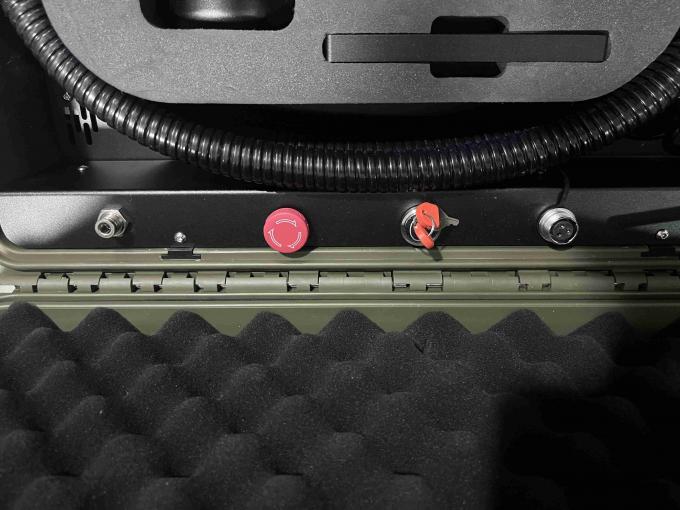

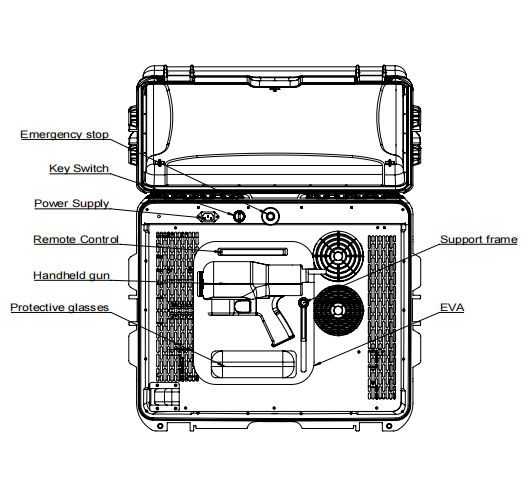

Buttons

1. Power plug:110/220v, We will adapt to power plugs for different countries
2.Key switch: The main power switch of the machine.
3.Emergency stop button: Emergency stop button of the equipment.

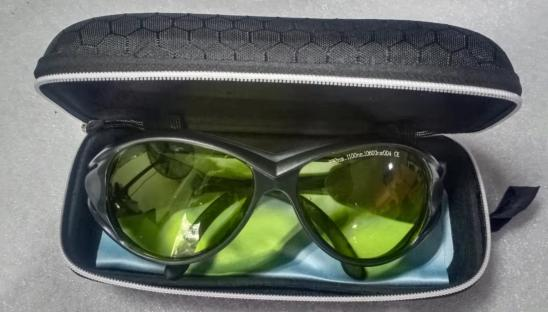

Laser safety goggles

Laser safety goggles protect your eyes from laser damage,with a high protection index and very safe

Focus lens

Standard F160 focus lens, cleaning width 100mm, optional larger focus lens, maximum cleaning width supports 300mm

Product Paramenters

Model	QA-LC300S
Laser source	Fiber
Laser power	300W
Fiber cable length	5m
Laser wavelength	1064nm
Pulse energy	5 mJ
Pulse frequency	1-3000KHz
Pulse width	13-500ns
Cleaning speed	≤30 M²/Hour
Cleaning modes	8 modes
Cooling	Air cooling

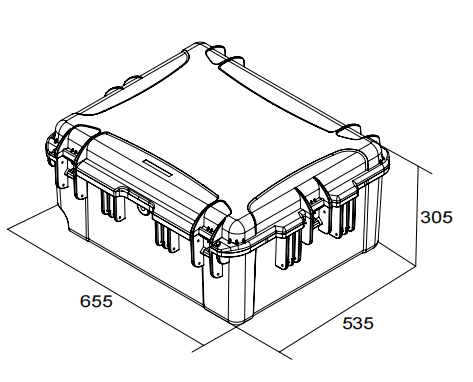

Dimension	655535305 mm
Packing	760x610x330mm
Net weight	33kg
Gross weight	38kg
Beam width	10-100mm
Optional	Manual
Temperature	5-40 ℃
Voltage	Single Phase AC 220V 4.5A

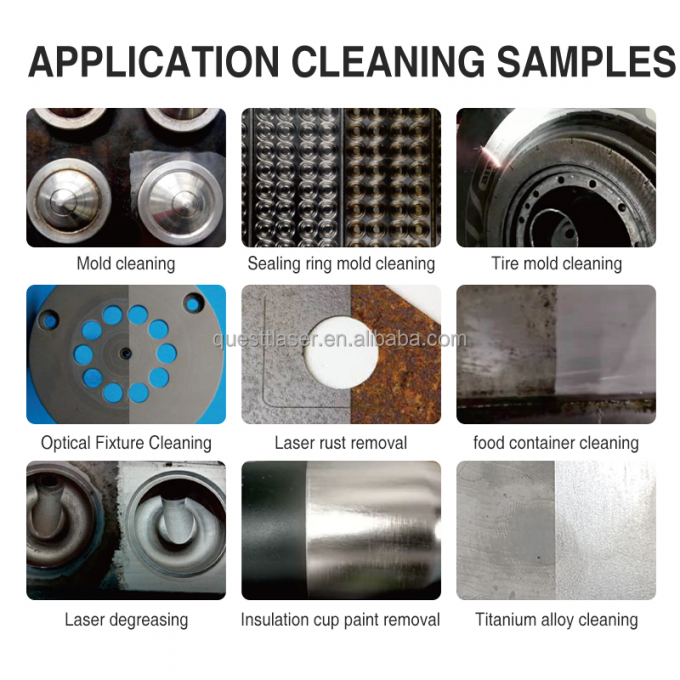

Samples

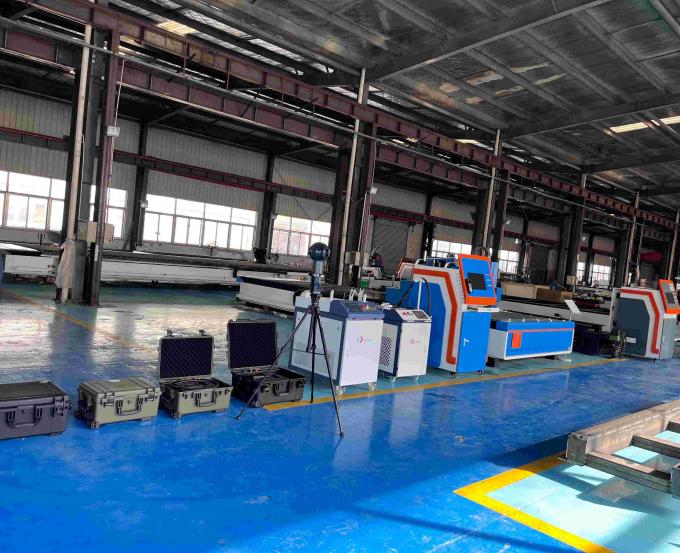

Our Company
