Highlight:
laser rust removal equipment
, laser rust and paint remover

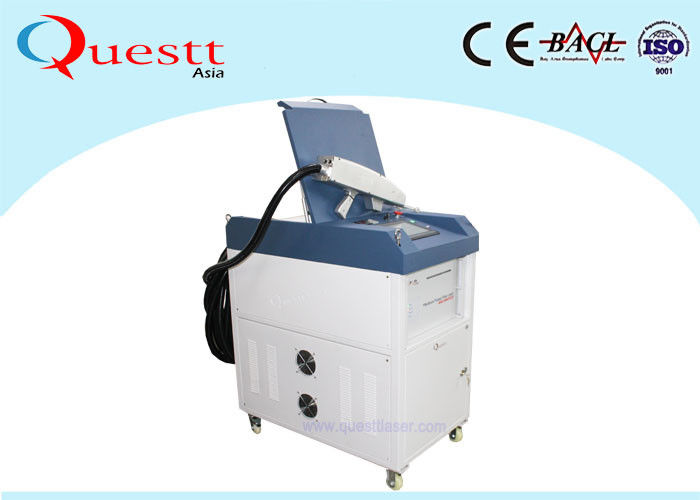

1000 Watt High Power Rust Removal Laser Cleaning Machine
1000 Watt High Power Rust Removal Laser Cleaning Machine
Description:
QA-LC1000 Laser cleaning Machineis a high laser power equipment.
The cleaning speed is very fast, can almost clean any coatings. The laser cleaning head can be fix or designed as a hand held one. The cooling system is water cooling, we also add a dust connector, in order to work in a clean envirenment.
The laser derusting machine can be customized according to customer requirements. The fiber calbe length also can change and make it longer up to 100 meters for 1000W.
For laser power, we also have 50W,70W,100W 200W 500W to choose. For the machine outlooks, we have sealed bench top,hand held types to choose.
5 Stars Reviews from Customers:
Characteristic:
1. Laser cleaning has no contact
2. Rapid, clean and accurate cleaning
3. No damage to substrate;
4. High cleaning precision,
5. Can be used for a long time
6. Speed is very fast and efficient
Fiber laser source advantages:
| Laser Source |
Advantage |
Disadvantage |
| Solid Laser |
1.High power, high pulse energy, high cleaning efficiency
2.Wide range non-metallic material application
3.Excellent cleaning effect, excellent cleaning ability
|
1. Large consumption, need high power chiller
2. Limited integration, complicated maintenance
3. Expensive and high cost.
|
| Fiber Laser |
1.Free maintenance, high cost effective, low cost.
2.Forced air cooling, high stability of continuous using
3.Good laser beam mode, wide range metal application
4.Without light path problem, Flexibility integration, small and convenient
5.High photoelectric conversion rate, low consumption, energy saving and enviroment protection
|
1.Low effective for thick coated metal
2.Power limited
|
Product features:
1. it is a "dry" cleaning, do not need cleaning solution or other chemical solution, will not lead to the two pollution, and cleanliness is much higher than chemical cleaning process;
2. the laser cleaning technology is very extensive, such as various oxide particles, rust, coating and organic matter on the surface;
Specifications:
Introduction of Laser Cleaning Technology A.pdf
QA-LC1000 Laser Cleaning Machine for rust removal....
|
Model
|
QA-LC50
|
QA-LC100
|
QA-LC200
|
QA-LC500
|
|
Laser source
|
Fiber
|
Fiber
|
Fiber
|
Fiber
|
|
Laser Power
|
50W
|
100W
|
200W
|
500W
|
|
Fiber cable L
|
3 M
|
5 M
|
5 M
|
15M
|
|
Pulse Energy
|
1 mJ
|
1.5 mJ
|
3 mJ
|
100 mJ
|
|
Wavelength
|
1060nm
|
1060nm
|
1060nm
|
1060nm
|
|
Frequency
|
50-500KHz
|
1-2000KHz
|
1-2000KHz
|
10-50KHz
|
|
Clean speed
|
≤5 M²/Hour
|
≤10 M²/Hour
|
≤15 M²/Hour
|
≤60 M²/Hour
|
|
Scann speed
|
0-7000mm/s
|
0-7000mm/s
|
0-7000mm/s
|
0-7000mm/s
|
|
Cooling
|
Air cooling
|
Air cooling
|
Water cooling
|
Water cooling
|
|
Dimension
|
450*350*500
|
500*400*550
|
800*450*1000
|
900*800*1300
|
|
Weight
|
30Kg
|
40Kg
|
90Kg
|
220Kg
|
|
Beam width
|
10-110mm
|
10-110mm
|
10-170mm
|
10-170mm
|
|
Optional
|
Manual
|
Manual
|
Manual
|
Manual
|
|
Temperature
|
5-40 ℃
|
5-40 ℃
|
5-40 ℃
|
5-40 ℃
|
|
Voltage
|
Single Phase 220V, 50HZ
|
Single Phase 220V, 50HZ
|
Single Phase 220V, 50HZ
|
Single Phase 220V, 50HZ
|
Application scope:
All industries, all the old and durty items which need to be cleaned and re-painting.
FAQ
1 Q: What is the warranty of the laser cleaning machine?
A: The warranty is 2 years, whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality. Price is reasonable.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.
