200 Watt IPG Laser Machine Rust Removal Cleaning For Painting , Maintenance - Free
Laser Cleaner Rust Remover Machinery 200 Watt IPG laser cleaning for painting
Description:
There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important.
New welding point Preparation, metal surface roughness, rapid dust/oxide, oil, grease and production residues; industrial, military and shipbuilding industry-product coating high-speed cleaning, NDT welding inspection coating cleaning;

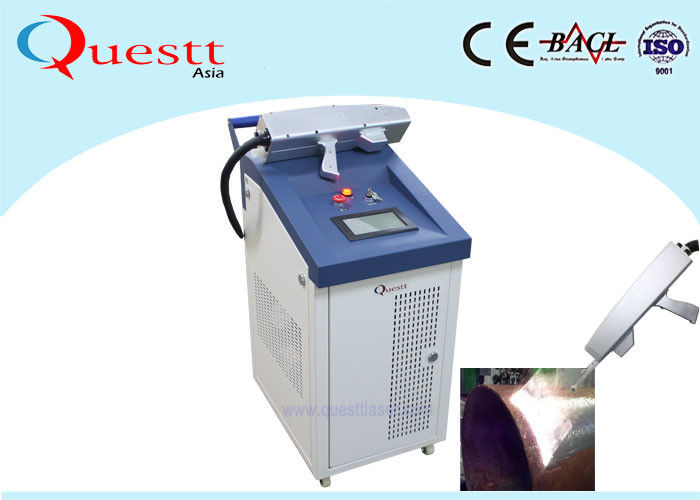

QA-LC200R Laser Clean Metal Rust Removal equipment has a 200W special fiber laser device.
It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.
It is a new generation of industrial metal surface cleaning laser system, which specially design to remove the un-needed surface cover or dust.
Our company‘s laser cleaning equipments are new generation of industrial surface cleaning high-tech products.
The laser optical systems and control systems, to meet the requirements of metal surface cleaning process.
Characteristic:
1. Metal Surface derusting
2. Surface Grease Grease Cleaning
3. Surface Coating Removal
4. Welding surface, spraying surface pretreatment
5. Rubber Mold Cleaning
6. Surface Paint Removal process
7. Restoration of cultural relics
Specifications:
Laser Cleaning Machine Rust Removal.pdf
|
Model
|
QA-LC60
|
QA-LC100
|
QA-LC200
|
QA-LC500
|
|
Laser source
|
Fiber
|
Fiber
|
Fiber
|
Fiber
|
|
Laser Power
|
60W
|
100W
|
200W
|
500W
|
|
Fiber cable L
|
3 M
|
3 M
|
5 M
|
20M
|
|
Pulse Energy
|
1.5 mJ
|
1.5 mJ
|
2 mJ
|
50 mJ
|
|
Wavelength
|
1060nm
|
1060nm
|
1060nm
|
1060nm
|
|
Frequency
|
1-2000KHz
|
1-2000KHz
|
1-2000KHz
|
10-50KHz
|
|
Clean speed
|
≤5 M²/Hour
|
≤10 M²/Hour
|
≤15 M²/Hour
|
≤50 M²/Hour
|
|
Scann speed
|
0-7000mm/s
|
0-7000mm/s
|
0-7000mm/s
|
0-7000mm/s
|
|
Cooling
|
Air cooling
|
Air cooling
|
Air cooling
|
Water cooling
|
|
Dimension
|
650*250*560
|
900*450*980
|
900*450*980
|
1100*600*1100
|
|
Weight
|
30Kg
|
40Kg
|
90Kg
|
230Kg
|
|
Beam width
|
10-100mm
|
10-100mm
|
10-100mm
|
10-100mm
|
|
Optional
|
Manual
|
Manual
|
Manual
|
Manual
|
|
Temperature
|
5-40 ℃
|
5-40 ℃
|
5-40 ℃
|
5-40 ℃
|
|
Voltage
|
Single Phase 220V, 50HZ
|
Single Phase 220V, 50HZ
|
Single Phase 220V, 50HZ
|
Single Phase 220V, 50HZ
|
Application scope:
can remove the surface of the object resin, oil, stains, dirt, embroidered turbid, coating, coating, paint.
Widely Used in construction, nuclear power plants, automobile manufacturing, medical, military, aerospace, mold, microelectronics, etc
FAQ
1 Q: What is the warranty of the laser cleaner ?
A: The warranty is 2 year.
2 Q: What are your payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is the service?
A: Engineers can offer oversea services and we can also offer online service
4 Q: What is the brand of the laser source?
A: IPG, Raycus or other Chinese brand.
5 Q: How is the operations?
A: The operation is very easy to learn. We offer operation manual and videos, show you how to operate the machine.
Cleaning Samples
