IPG 1000W Handheld Laser Cleaner Machine For Painting Removal on Shipyard
Contact me for free samples and coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Device | IPG Fiber Source | Laser Power | 1000 Watts |
---|---|---|---|
Laser Wavelength | 1064 Nm | Sevices | Wholelife Aftersale Service |
Certificates | CE FDA | Warranty | 24 Months |
Scanning Width | 10-150 Mm | Fiber Cable Length | 10 Meters |
Work Speed | 60 M2/hour | Key Words | Laser Cleaning Machine Rust Removal |
High Light | laser rust removal equipment,laser rust and paint remover |

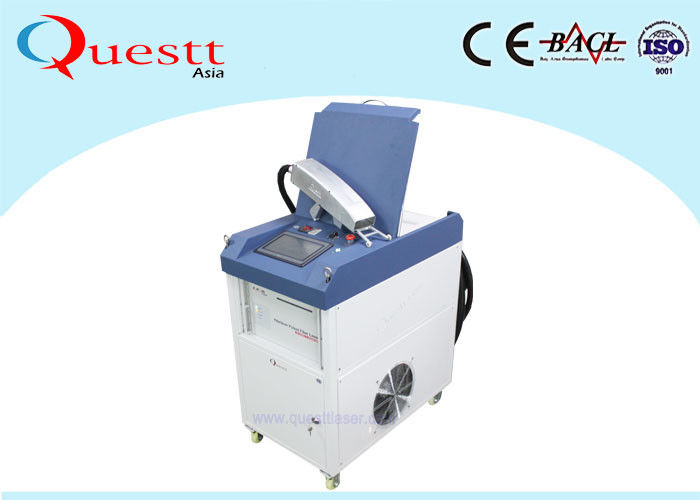

IPG 1000W Handheld Laser Cleaner Machine For Ship / Vessel Painting Removal
Description:
QA-LC1000 laser cleaning machine 1000W is a high laser power equipment for heavy rust and thick coating. Like 1mm thickness plastic or painting coating. The cleaning speed is very fast, can almost clean any coatings.
The design of each configuration has continuous and stable performance, so there is little maintenance. Easy to install, manipulate and automate. Plug in the socket, open the equipment, can be chemical reagent, no medium, no dust, no water cleaning
Laser cleaning Machine is a new generation of surface cleaning of High-tech products. Easy to install, manipulate and automate. Simple operation, access to power, open equipment, you can carry out chemical reagents
Equipped with water cooling System, add a dust connector to keep the workroom clean.The laser cleaning head can be fix or designed as a hand held one.
The fiber calbe length can be max 50 meters.The laser derusting machine can be customized according to customer needs.
Characteristic:
1. Laser cleaning has no grinding, non-contact, no thermal effect
2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide;
3. No damage to substrate of the products;
4. High cleaning precision, strong controllability;
5. Can be used for a long time, low operating costs;
6. The device can realize automatic operation and simple operation;
7. Environmentally friendly, no supplies, no two pollution
8. It is suitable for various materials, etc.
Specifications:
QA-LC1000 Laser Cleaning Machine for rust removal....
Introduction Laser Cleaning Machine Detailed.pdf
Model |
QA-LC60 |
QA-LC100 |
QA-LC200 |
QA-LC500 |
Laser source |
Fiber |
Fiber |
Fiber |
Fiber |
Laser Power |
60W |
100W |
200W |
500W |
Fiber cable L |
3 M |
3 M |
5 M |
20M |
Pulse Energy |
1.5 mJ |
1.5 mJ |
2 mJ |
50 mJ |
Wavelength |
1060nm |
1060nm |
1060nm |
1060nm |
Frequency |
1-2000KHz |
1-2000KHz |
1-2000KHz |
10-50KHz |
Clean speed |
≤5 M²/Hour |
≤10 M²/Hour |
≤15 M²/Hour |
≤50 M²/Hour |
Scann speed |
0-7000mm/s |
0-7000mm/s |
0-7000mm/s |
0-7000mm/s |
Cooling |
Air cooling |
Air cooling |
Air cooling |
Water cooling |
Dimension |
650*250*560 |
900*450*980 |
900*450*980 |
1100*600*1100 |
Weight |
30Kg |
40Kg |
90Kg |
230Kg |
Beam width |
10-100mm |
10-100mm |
10-100mm |
10-100mm |
Optional |
Manual |
Manual |
Manual |
Manual |
Temperature |
5-40 ℃ |
5-40 ℃ |
5-40 ℃ |
5-40 ℃ |
Voltage |
Single Phase 220V, 50HZ |
Single Phase 220V, 50HZ |
Single Phase 220V, 50HZ |
Single Phase 220V, 50HZ |
Application scope:
The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;
Die Cleaning, welding surface pretreatment, metal surface roughness, natural rock cleaning, metal and glass surface coating removal, the whole surface off paint;
Comparison with Traditional Clean Methods:
Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
Harm to base material | None | Yes | Yes | None |
Washing Efficiency | High | Low | Low | Mid. |
Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
FAQ
1 Q: What is the warranty of 1000W laser rust removal machine?
A: The warranty is 24 months. Offer wholelife aftersales service.
2 Q: What is your payment terms?
A: Any payment terms is acceptable.
3 Q: What is the service of your company?
A: Engineers can offer oversea services and online service.
4 Q: How is the operations?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.The operation is easy to learn.
5 Q: What is the brand of laser?
A: IPG laser.
