Durable 100W 200W 500W Fiber Laser Metal Cleaning Machine For Rust Removal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 200W | Certificate | CE Certifice |
|---|---|---|---|
| Application | Paint Coating Removal | Laser Source | Fiber Laser Source |
| Service | Online And Overseas Service | Gurranty | 2 Years |
| Laser Wavelength | 1060nm | Pulse Energy | 2 MJ |
| High Light | laser rust removal equipment,laser rust and paint remover |
||
Product Description

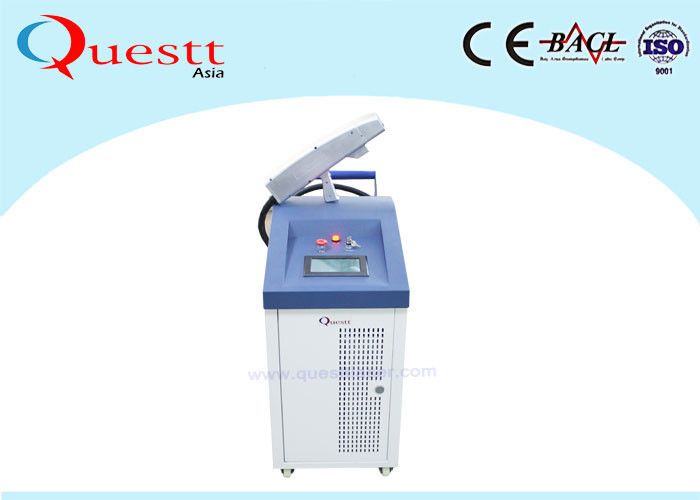

Durable 100W 200W 500W Fiber Laser Metal Cleaning Machine For Rust Removal
Description:
QA-LC200 laser cleaning machine equipped with a 200W fiber laser source, mainly used for ship,boat,Car painting removal.
Small area cleaning and paint removal treatment, welding surface pretreatment, food line cleaning, printing wheel cleaning, precise position/size paint treatment, restoration of monuments, rust/oxide removal;
The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;Die Cleaning, welding surface pretreatment, metal surface roughness, natural rock cleaning, metal and glass surface coating removal, the whole surface off paint;
New welding point Preparation, metal surface roughness, rapid dust/oxide, oil, grease and production residues; industrial, military and shipbuilding industry-product coating high-speed cleaning, NDT welding inspection coating cleaning;
Laser cleaning-working parameters:
| Base metal | Surface | Valid focal depth | Effeciency(mm²/s) | Effect |
| cast iron | severe corrosion(0.08mm) | >40 | 3000 | clean surface, no damage |
| carbon steel | mild corrosion(0.05mm) | >45 | 4000 | clean surface, no damage |
| stainless steel | oily, slight corrosion | >60 | 30000 | bright surface, no damage |
| mould steel gear | mild oily with scrap iron | >45 | 5000 | bright surface, no damage |
| aluminum steel | oxide/ surface spotting | >40 | 3000 | white surface, no damage |
| stoving varnish ss | white stoving varnish | >30 | 1000 | bright surface, no damage |
Product features:
1. Low cost;
2. Quick investment recovery;
3. No sandblasting sand grains or chemical agents;
4. No erection time for equipment use;
5. No noise;
6. Few maintenance requirements.
7. Few maintenance requirements.
Specifications:
Introduction Laser Cleaning Machine Detailed.pdf
QA-LC200 Laser Cleaning Machine for rust removal.p...
| Model | QA-LC60 | QA-LC100 | QA-LC200 | QA-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 60W | 100W | 200W | 500W |
| Fiber cable L | 3 M | 3 M | 5 M | 10M |
| Pulse Energy | 1.5 mJ | 1.5 mJ2 | mJ | 50 mJ |
| Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
| Frequency | 50-500KHz | 50-200KHz | 20-50KHz | 10-50KHz |
| Clean speed | ≤5 M²/Hour | ≤10 M²/Hour | ≤15 M²/Hour | ≤50 M²/Hour |
| Scann speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air cooling | Water cooling |
| Dimension | 450*300*500 | 650*350*560 | 900*600*1100 | 1600*1100*1800 |
| Weight | 30Kg | 36Kg | 120Kg | 300Kg |
| Beam width | 10-100mm | 10-100mm | 10-100mm | 10-100mm |
| Optional | Manual | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ |
Application field:
Small area cleaning and paint removal treatment, welding surface pretreatment, food line cleaning, printing wheel cleaning, precise position/size paint treatment, restoration of monuments, rust/oxide removal;
The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;
Die Cleaning, welding surface pretreatment, metal surface roughness, natural rock cleaning, metal and glass surface coating removal, the whole surface off paint;
Improve the bonding of welding surface pretreatment;
New welding point Preparation, metal surface roughness, rapid dust/oxide, oil, grease and production residues; industrial, military and shipbuilding industry-product coating high-speed cleaning, NDT welding inspection coating cleaning;
Comparison with Traditional Clean Methods:
| Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Sample details:
FAQ
1 Q: What is the warranty of 200W laser cleaning machine?
A: The warranty is 2 year, but we offer whole life after-sale service.
2 Q: What is the payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is the after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with perfect quality.
5 Q: How is the operation of the laser rust removal machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
