Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile

China Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile supplier
Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile supplier Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile supplier Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile supplier

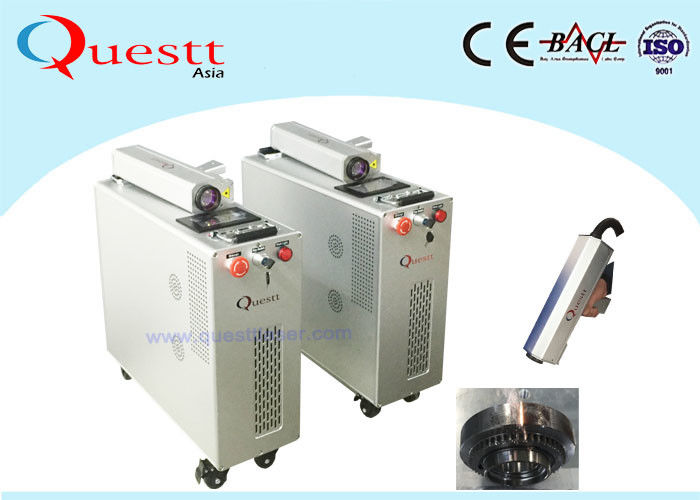

Large Image :  Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile

Product Details:

Place of Origin: Wuhan, China
Brand Name: QUESTT
Certification: ISO CE
Model Number: QA-LC200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2500 sets per year
Contact Now
Detailed Product Description
Laser Power: 100W Certificate: CE Certifice
Application: Paint Coating Removal Laser Source: Fiber Laser Source
Service: Online And Overseas Service Gurranty: 2 Years
Laser Wavelength: 1060nm Pulse Energy: 1 MJ



Mopa Fiber Laser Rust Removal Machine Cleaning Paint/Rust/Oxide on Ship Automobile 50W 100W

Description:

QA-LC200 laser cleaning machine equipped with a  200W fiber laser source, mainly used for ship,boat,Car painting removal.

Small area cleaning and paint removal treatment, welding surface pretreatment, food line cleaning, printing wheel cleaning, precise position/size paint treatment, restoration of monuments, rust/oxide removal;

The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;Die Cleaning, welding surface pretreatment, metal surface roughness, natural rock cleaning, metal and glass surface coating removal, the whole surface off paint;

New welding point Preparation, metal surface roughness, rapid dust/oxide, oil, grease and production residues; industrial, military and shipbuilding industry-product coating high-speed cleaning, NDT welding inspection coating cleaning;


Laser cleaning working parameters:


Base metalSurfaceValid focal depthEffeciency(mm²/s)Effect
cast ironsevere corrosion(0.08mm)>403000clean surface, no damage
carbon steelmild corrosion(0.05mm)>454000clean surface, no damage
stainless steeloily, slight corrosion>6030000bright surface, no damage
mould steel gearmild oily with scrap iron>455000bright surface, no damage
aluminum steeloxide/ surface spotting>403000white surface, no damage
stoving varnish sswhite stoving varnish>301000bright surface, no damage


Product features:
1. Low cost;
2. Quick investment recovery;
3. No sandblasting sand grains or chemical agents;
4. No erection time for equipment use;
5. No noise;
6. Few maintenance requirements.
7. Few maintenance requirements.

Specifications:
Introduction Laser Cleaning Machine Detailed.pdf
QA-LC200 Laser Cleaning Machine for rust removal.p...


ModelQA-LC60QA-LC100QA-LC200QA-LC500
Laser sourceFiberFiberFiberFiber
Laser Power60W100W200W500W
Fiber cable L3 M3 M5 M10M
Pulse Energy1.5 mJ1.5 mJ2 mJ50 mJ
Wavelength1060nm1060nm1060nm1060nm
Frequency50-500KHz50-200KHz20-50KHz10-50KHz
Clean speed≤5 M²/Hour≤10 M²/Hour≤15 M²/Hour≤50 M²/Hour
Scann speed0-7000mm/s0-7000mm/s0-7000mm/s0-7000mm/s
CoolingAir coolingAir coolingAir coolingWater cooling
Dimension450*300*500650*350*560900*600*11001600*1100*1800
Weight30Kg36Kg120Kg300Kg
Beam width10-100mm10-100mm10-100mm10-100mm
OptionalManualManualManualManual
Temperature5-40 ℃5-40 ℃5-40 ℃5-40 ℃
VoltageSingle Phase 220V, 50HZSingle Phase 220V, 50HZSingle Phase 220V, 50HZSingle Phase 220V, 50HZ


Application field:
Small area cleaning and paint removal treatment, welding surface pretreatment, food line cleaning, printing wheel cleaning, precise position/size paint treatment, restoration of monuments, rust/oxide removal;
The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;
Die Cleaning, welding surface pretreatment, metal surface roughness, natural rock cleaning, metal and glass surface coating removal, the whole surface off paint;
Improve the bonding of welding surface pretreatment;
New welding point Preparation, metal surface roughness, rapid dust/oxide, oil, grease and production residues; industrial, military and shipbuilding industry-product coating high-speed cleaning, NDT welding inspection coating cleaning;
Comparison with Traditional Clean Methods:

ComparisonLaser CleaningChemical CleaningMechanical GrindingDry ice cleaning
Washing Methodnon-contact cleaningcontact cleaningAbrasive contact cleaningnon-contact cleaning
Harm to base materialNoneYesYesNone
Washing EfficiencyHighLowLowMid.
ConsumablePowerChemical DetergentAbrasive paper, grinder, abrasive stoneDry Ice
Washing resultVery good, very clearMedium, unevenMedium, unevenGood, uneven
Precision WashingAccuracy controllable. High precisionUncontrollable, low precision.Uncontrollable, medium precision.Uncontrollable, poor precision.
Safety/EnvironmentNo pollutionChemical pollutionDust pollutionNo pollution
OperationEasy to operate, portable or automation optional.Complicated process, higher technical requirement of the operator. Pollution prevention measures required.Need more time & manpower. Pollution prevention measures required.Easy to operate, portable or automatic.
InvestmentHigh investment on machine. But no consumable, low maintenance costLow investment on machine. But expensive consumablesMedium investment on machine. High man-power cost.Medium investment on machine. High consumable cost.



Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile
Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile

Sample details:
Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile


FAQ

1 Q: What is the warranty of 200W laser cleaning machine?
A: The warranty is 2 year, but we offer whole life after-sale service.

2 Q: What is the payment terms?
A: T/T, L/C, Westen Union, etc.

3 Q: What is the after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machine?
A: Germany high technoloy with perfect quality.

5 Q: How is the operation of the laser rust removal machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.

Mopa Fiber Laser Cleaning Machine For Paint / Rust / Oxide On Ship Automobile
