Suitcase Type 50W 100W Laser Rust Remover Machine

  • Suitcase Type 50W 100W Laser Rust Remover Machine
  • Suitcase Type 50W 100W Laser Rust Remover Machine
  • Suitcase Type 50W 100W Laser Rust Remover Machine
  • Suitcase Type 50W 100W Laser Rust Remover Machine
Place of Origin Wuhan
Brand Name QUESTT
Certification CE
Model Number QA-LC100S
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard Exporting Wooden Box
Delivery Time 16 days
Payment Terms T/T, L/C, Western Union, Paypal
Supply Ability 2880 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Types Fiber Laser Laser Power 50-200W
Wavelength 1064 Nm Sevices Wholelife Aftersale Service
Certificate CE Warranty 2 Years
Scanning Width 110mm Cable Length 1.5-3 Meter
Outlook Suitcase Type
Leave a Message
Product Description

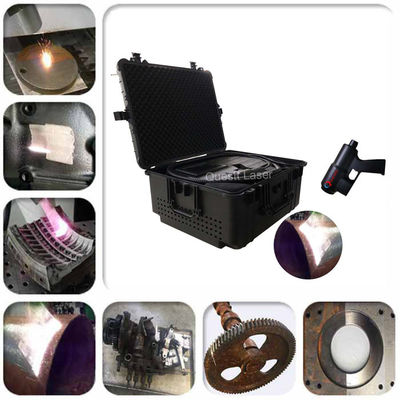

            Suitcase Type 50W 100W Laser Rust Remover Machine

Suitcase Type 50W 100W Laser Rust Remover Machine 0



Description:

QA-LC100C is a suitcase type machine, which can be operated by Phone APP with bluetooth connection.

The fiber calbe length for 100W is 3 meters, can be max 6 meters, we also can change and make it longer, up to 100 meters for 1000W.The laser derusting machine can be customized according to customer special demands.



The outlook is the same as a travle case , which is very easy to take along and move, the total weight is only 40kgs.

This special design is good for outdoor cleaning job.

We have sealed bench top, hand held type, moving case type and backpact type to choose.

For laser powers, we also have 30W,50W,70W,100W 200W 500W to choose from.

For outlook, we also has below choices.

Suitcase Type 50W 100W Laser Rust Remover Machine 1

Characteristic:



1. Phone App Operation with bluetooth.

2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;

3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.

4. Clean or remove the surface paint layer quickly and cleanly;

5. Accurate cleaning and paint removal effect;

6. No damage to the base material;

Suitcase Type 50W 100W Laser Rust Remover Machine 2



Specifications:

Laser Cleaning Machine Rust Removal.pdf



Model QA-LC50 QA-LC100S QA-LC200 QA-LC500
Laser source Fiber Fiber Fiber Fiber
Laser Power 50W 100W 200W 500W
Fiber cable L 3 M 3 M 5 M 20M
Pulse Energy 1 mJ 1.5 mJ 2 mJ 100 mJ
Wavelength 1060nm 1060nm 1060nm 1060nm
Frequency 1-2000KHz 1-2000KHz 1-2000KHz 2-50KHz
Clean speed ≤5 M²/Hour ≤10 M²/Hour ≤15 M²/Hour ≤50 M²/Hour
Scann speed 0-7000mm/s 0-7000mm/s 0-7000mm/s 0-7000mm/s
Cooling Air cooling Air cooling Air/Water cooling Water cooling
Dimension 450*350*500 650*250*560 900*450*1000 1120*600*1100
Weight 30Kg 40Kg 120Kg 230Kg
Beam width 10-70mm 10-70mm 10-100mm 10-170mm
Optional Manual Manual Manual Manual
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃
Voltage Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ

Suitcase Type 50W 100W Laser Rust Remover Machine 3

Application scope:



All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etcall the old and durty items





FAQ



1 Q: What is the warranty of the suitcase laser rust remover machine?

A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc. Any payment term you prefer.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.

4 Q: How is the quality of the machine?

A: High quality. Price is reasonable.

5 Q: What is the brand of laser source?

A: Raycus or IPG.







Suitcase Type 50W 100W Laser Rust Remover Machine 4
