Product Details
Place of Origin: Wuhan, City
Brand Name: QUESTT
Certification: CE
Model Number: QA-LC100S
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 18 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 2800 sets per year
Laser Types: |
Fiber Laser Source |
Laser Power: |
100 W |
Wavelength: |
1064 Nm |
Sevices: |
Wholelife Aftersale Service |
Certificate: |
CE |
Warranty: |
2 Years |
Scanning Width: |
100mm |
Cable Length: |
2 Meter |
Outlook: |
Trolley Case Type |
Keywords: |
Laser Rust Remover |
Laser Types: |
Fiber Laser Source |
Laser Power: |
100 W |
Wavelength: |
1064 Nm |
Sevices: |
Wholelife Aftersale Service |
Certificate: |
CE |
Warranty: |
2 Years |
Scanning Width: |
100mm |
Cable Length: |
2 Meter |
Outlook: |
Trolley Case Type |
Keywords: |
Laser Rust Remover |

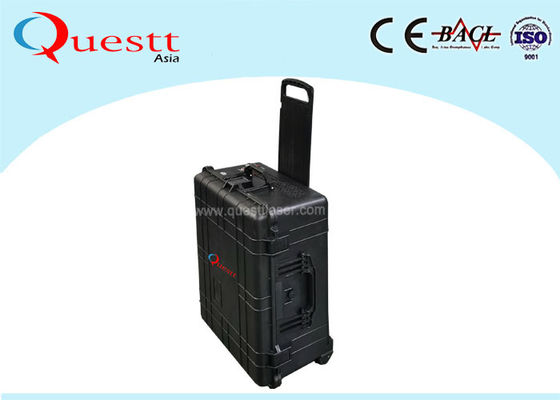

Trolley Case 100W Laser Cleaning Machine APP Operation
Description:
QA-LC100C Laser rust removal equipment is a trolley case type machine, which add phone APP bluetooth connection.
You can make settings on your phone with our APP software. Very convenient!
The fiber calbe length for 100W is 3 meters, can be max 6 meters, we also can change and make it longer, up to 100 meters for 1000W.The laser derusting machine can be customized according to customer special demands.
The outlook is the same as a travle case , which is very easy to take along and move, the total weight is only 40kgs. This special design is good for outdoor cleaning job.
We have sealed bench top, hand held type, moving case type and backpact type to choose. For laser powers, we also have 30W,50W,70W,100W 200W 500W to choose from.
Characteristic:
1. Phone App controller
2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;
3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.
4. Clean or remove the surface paint layer quickly and cleanly;
5. Accurate cleaning and paint removal effect;
6. No damage to the base material;
Specifications:
Laser Cleaning Machine Rust Removal.pdf
| Model | QA-LC50 | QA-LC100 | QA-LC200 | QA-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 50W | 100W | 200W | 500W |
| Fiber cable L | 3 M | 3 M | 5 M | 20M |
| Pulse Energy | 1 mJ | 1.5 mJ | 2 mJ | 100 mJ |
| Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
| Frequency | 1-2000KHz | 1-2000KHz | 1-2000KHz | 2-50KHz |
| Clean speed | ≤5 M²/Hour | ≤10 M²/Hour | ≤15 M²/Hour | ≤50 M²/Hour |
| Scann speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air/Water cooling | Water cooling |
| Dimension | 450*350*500 | 650*250*560 | 900*450*1000 | 1120*600*1100 |
| Weight | 30Kg | 40Kg | 120Kg | 230Kg |
| Beam width | 10-70mm | 10-70mm | 10-100mm | 10-170mm |
| Optional | Manual | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220/110V, 50/60HZ | Single Phase 220/110V, 50/60HZ | Single Phase 220/110V, 50/60HZ | Single Phase 220/110V, 50/60HZ |
Application scope:
All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etcall the old and durty items
FAQ
1 Q: What is the warranty of the trolley case clean laser machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
5 Q: What is the brand of laser source?
A: Raycus or IPG.
