Small Head MOPA Fiber Laser Rust Removal Machine Suitcase Type
Contact me for free samples and coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Types | Mopa Fiber Laser Source | Laser Power | 50-200W |
|---|---|---|---|
| Wavelength | 1064 Nm | Sevices | Online Or Overseas |
| Certificate | CE ISO | Warranty | 2 Years |
| Scanning Width | 70mm | Cable Length | 2-5 Meters |
| Outlook | Suit Case | Keywords | Laser Rust Removal Machine |
| High Light | Small Head Laser Rust Removal Machine,MOPA Fiber Laser Rust Removal Machine,Laser Rust Remover Suitcase Type |
||
Product Description

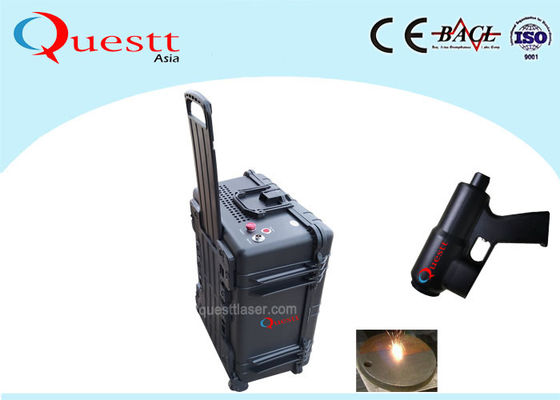

Small head Laser rust removal machine for cleaning outside 100W Suitcase for travel and demo
Description:
QA-LC100CS is a mobile case type Laser rust removal machine ,
It equipped with a small and light laser head which weight only 0.7kgs.
The outlook is the same as a suit case , which is very easy to take along and move, the total weight is only 30kgs.
For dealer, you can take it as a demo machine and travel to anywhere to offer demostration.
This special design is good for outdoor cleaning job.
We have sealed bench top, hand held type, moving case type and backpact type to choose.
The laser system was connected with Phone bluetooth, very convenient for parameter settings.
The setting of parameters is very convenient!You can make settings on your phone with our APP software.
Characteristic:
1. Phone App operation with bluetooth connection
2. Good for the removal of different materials ;
3. Free to clean outside
4. Pollution-free;
5. Expansibility;
6. No damage to the base material;.
7. Easy to operate,
8. 0.7kg light laser head to carry
Specifications:
| Model | QA-LC50S | QA-LC100S |
| Laser source | Fiber | Fiber |
| Laser Power | 50W | 100W |
| Fiber cable length | 1.5-3 M | 1.5-3 M |
| Laser Wavelength | 1060nm | 1064nm |
| Pulse Energy | 1 mJ | 1.5 mJ |
| Pulse frequency | 1-1000KHz | 1-2000KHz |
| Scanning speed | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling |
| Dimension | 500*300*650mm | 500*300*650 mm |
| Weight | 28Kg | 29Kg |
| Beam width | 10-70mm | 10-100mm |
| Optional | Manual/Auto | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase AC 220V,50/60HZ | Single Phase AC 220V, 50/60HZ |
Application scope
All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etcall the old and durty items
FAQ
1 Q: What is the warranty of the laser rust removal machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment terms?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
5 Q: What is the brand of laser source?
A: Raycus or IPG.
