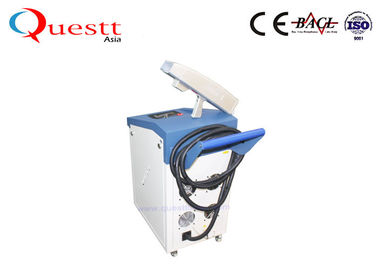

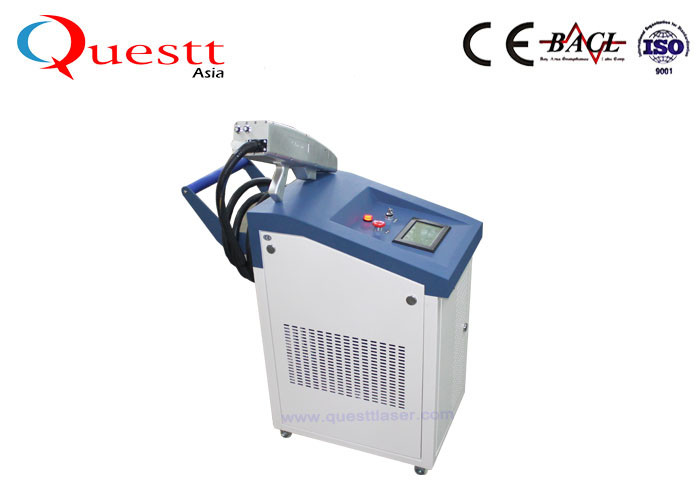

100w 200w 500w 1000w Portable High Speed Laser Descaling Machine

  • 100w 200w 500w 1000w Portable High Speed Laser Descaling Machine
  • 100w 200w 500w 1000w Portable High Speed Laser Descaling Machine
  • 100w 200w 500w 1000w Portable High Speed Laser Descaling Machine
  • 100w 200w 500w 1000w Portable High Speed Laser Descaling Machine
  • 100w 200w 500w 1000w Portable High Speed Laser Descaling Machine
  • 100w 200w 500w 1000w Portable High Speed Laser Descaling Machine
  • 100w 200w 500w 1000w Portable High Speed Laser Descaling Machine
  • 100w 200w 500w 1000w Portable High Speed Laser Descaling Machine
Place of Origin Wuhan, China
Brand Name QUESTT
Certification ISO CE
Model Number QA-LC200
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard Exporting Wooden Box
Delivery Time 10 days
Payment Terms T/T, L/C, Western Union
Supply Ability 2000 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Type Fiber Laser Source Laser Power 200Watts
Wave Length 1064nm Sevice Whole Life
Certificate CE ISO Gurranty 2 Years
Width 100mm Weight 200kg
Keyword Clean Laser Rust Removal
High Light

Portable Laser Descaling Machine

,

High Speed Laser Descaling Machine

,

1000w Laser High Speed Descaling Machine
Leave a Message
Product Description

100w 200w 500w 1000w Lazer Rust Removal Portable Laser High Speed Descaling Machine Price





Description:

QA-LC200 Fiber Laser cleaning Machine is a newest desing for Chinese Army.

It is a case type, the outlook is the same as a travle case , very easy to take and move, the total weight is only 40kgs. This special design is good for outdoor cleaning job.

The laser derusting machine can be customized according to customer requirements to develop a dedicated cleaning system. The fiber calbe length also can change and make it longer.

For laser power, we have 50W,70W,100W,200w to choose. For the machine outlook, we have sealed bench top, also have hand held ones to choose. You can hold the laser head in hand, and remove the dust in any place or corner you like.



Machine details:

100w 200w 500w 1000w Portable High Speed Laser Descaling Machine 0



Characteristic:



1. Laser cleaning has no grinding, non-contact

2. Rapid, clean and accurate cleaning

3. No damage to substrate;

4. High cleaning precision,

5. Can be used for a long time

6. The device can realize automatic operation and simple operation;

7. Environmentally friendly, no supplies, no two pollution

8. suitable for various materials, etc.



Product features:


1. it is a "dry" cleaning, do not need cleaning solution or other chemical solution, will not lead to the two pollution, and cleanliness is much higher than chemical cleaning process;
2.  the laser cleaning technology is very extensive, such as various oxide particles, rust, coating and organic matter on the surface;
3. the traditional cleaning method is often close to the operation, the substrate surface mechanical force, easy to damage the substrate; and laser cleaning is non-contact processing

100w 200w 500w 1000w Portable High Speed Laser Descaling Machine 1





Specifications:

Laser Cleaning Machine Rust Removal.pdf



Model QA-LC50 QA-LC100 QA-LC200 QA-LC500
Laser source Fiber Fiber Fiber Fiber
Laser Power 50W 100W 200W 500W
Fiber cable L 3 M 3 M 5 M 20M
Pulse Energy 1 mJ 1.5 mJ 2 mJ 100 mJ
Wavelength 1060nm 1060nm 1060nm 1060nm
Frequency 1-2000KHz 1-2000KHz 1-2000KHz 2-50KHz
Clean speed ≤5 M²/Hour ≤10 M²/Hour ≤15 M²/Hour ≤50 M²/Hour
Scann speed 0-7000mm/s 0-7000mm/s 0-7000mm/s 0-7000mm/s
Cooling Air cooling Air cooling Air/Water cooling Water cooling
Dimension 450*350*500 650*250*560 900*450*1000 1120*600*1100
Weight 30Kg 40Kg 120Kg 230Kg
Beam width 10-70mm 10-70mm 10-100mm 10-170mm
Optional Manual Manual Manual Manual
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃
Voltage Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ



Application scope:

All industries, all the old and durty items which need to be cleaned and re-painting.

100w 200w 500w 1000w Portable High Speed Laser Descaling Machine 2





FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.



2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc. Any payment term you prefer.



3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.



4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality. Price is reasonable.



5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly. It depends on your needs.
