Product Details
Place of Origin: WUHAN
Brand Name: QUESTT
Certification: CE,ISO9001
Model Number: QA-LC00S
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100W dual axis 9800$-10800$/set
Packaging Details: wooden case
Delivery Time: 10-15 working days
Supply Ability: 500 suits each year
Name: |
Fiber Laser Cleaning Machine |
Power: |
50w 100w 150w 200w |
Laser Source: |
JPT MAX IPG |
Application: |
For Rust,paint,oil,glue,oxide Removal |
Advantage: |
Easy Taken And Easy Operation |
Cable Length: |
2-5m |
Wavelength: |
1070nm |
Scan Width: |
10-80mm |
Name: |
Fiber Laser Cleaning Machine |
Power: |
50w 100w 150w 200w |
Laser Source: |
JPT MAX IPG |
Application: |
For Rust,paint,oil,glue,oxide Removal |
Advantage: |
Easy Taken And Easy Operation |
Cable Length: |
2-5m |
Wavelength: |
1070nm |
Scan Width: |
10-80mm |
Dual Axis Suitcase Mobile Rust Removal Machine 30w 50w 100w 200w
Introduction

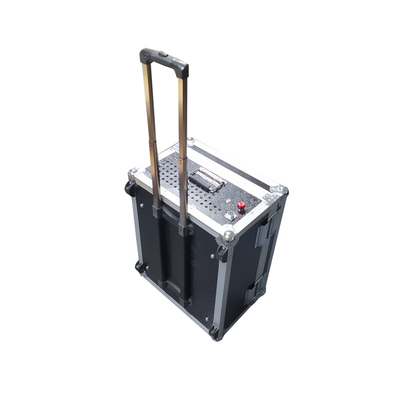

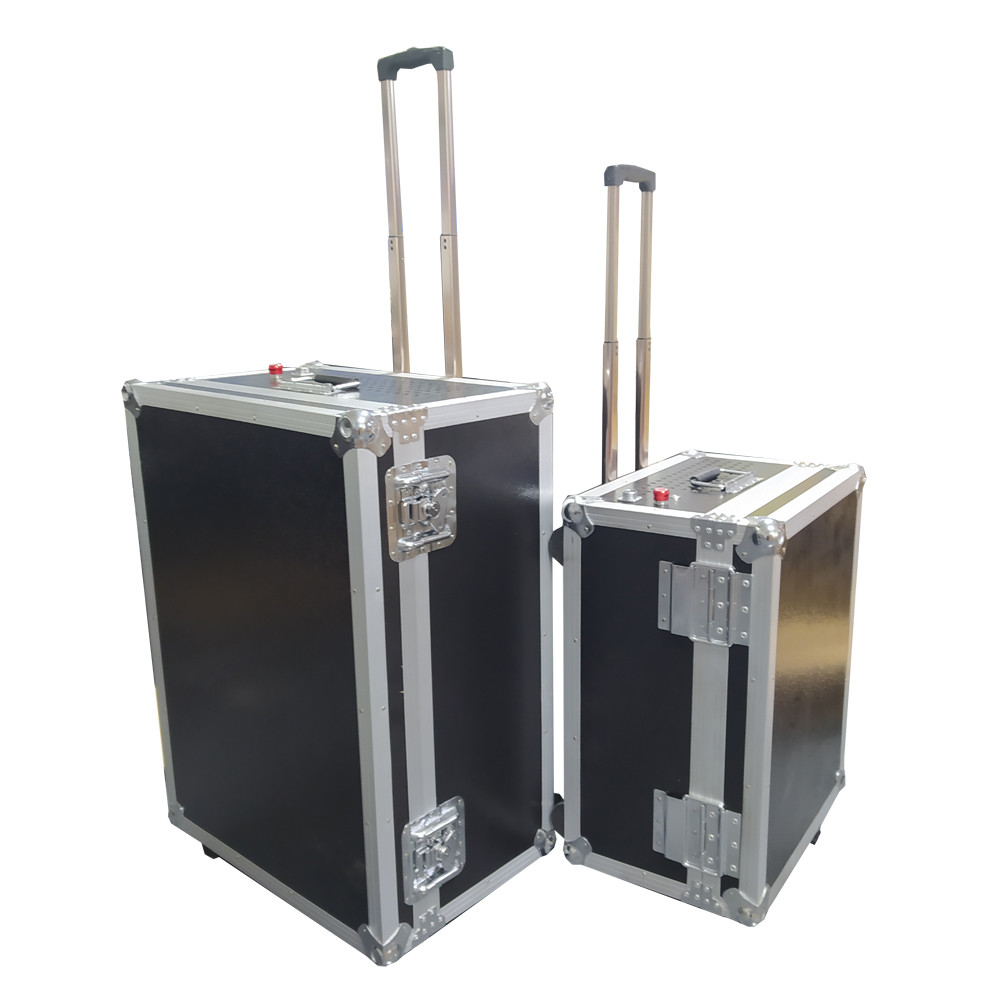

QA-LC100D Laser rust removal equipment is a suitcase type machine.The outlook is the same as a travel case , which is very easy to take along and move. Also the best demo machine to fly with you on airplane. We also approved to add Phone APP control system.
It can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.
Features
1. Two-dimensional laser cleaning with dual axis scanner, it is not easy to damage the substrate
2. Precision cleaning, realized selective cleaning of precise location and accurate size
3. No need any chemical cleaning liquid, no consumables, safety and environmental protection
4. Easy operation, realized automated cleaning by hand-held or robotic arm
5. Fast cleaning speed, high cleaning efficiency, saving time.
6. Stable laser cleaning system, almost no maintenance requirement.
Specifications
| Model | QA-LC50D | QA-LC100S |
| Laser source | Fiber | Fiber |
| Laser power | 50W | 100W |
| Fiber cable length | 1.5-3 M | 3-5 M |
| Laser wavelength | 1060nm | 1064nm |
| Pulse energy | 1 mJ | 1.5 mJ |
| Pulse frequency | 1-1000KHz | 1-2000KHz |
| Cleaning speed | ≤5 M²/Hour | ≤12 M²/Hour |
| Cooling | Air cooling | Air cooling |
| Machine dimension | 500*300*650mm | 500*300*650 mm |
| Packing dimension | 680x450x530cm | 680x450x530mm |
| Net weight | 29kg | 29kg |
| Gross weight | 42kg | 42kg |
| Beam width | 10-70mm | 10-100mm |
| Optional | Manual/Auto | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase AC220V,50/60HZ | Single Phase AC220V, 50/60HZ |
Application scope
Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc.
