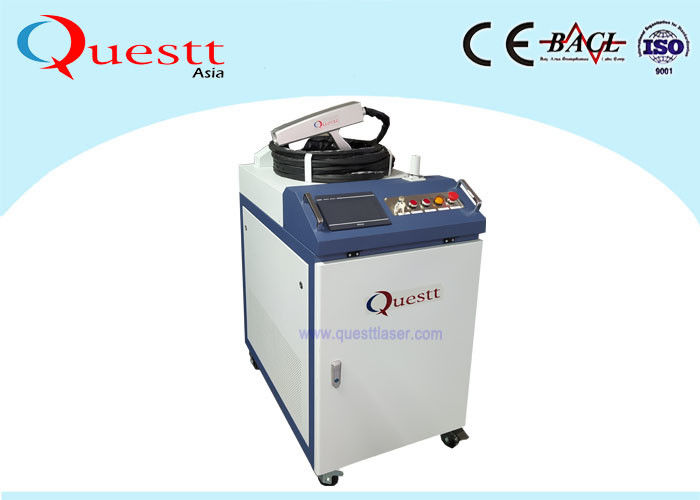

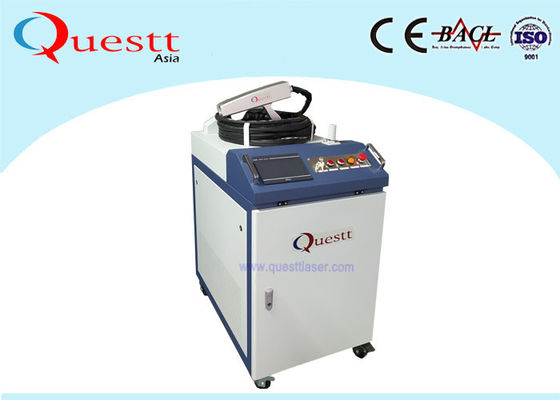

Non Contact 1000W Raycus JPT IPG Laser Rust Removing Machine

Product Details

Place of Origin: Wuhan, Hubei

Brand Name: QUESTT

Certification: CE

Model Number: QA-LC1000C

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Exporting Wooden Boxes

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, Paypal

Supply Ability: 1888 sets per year

Get Best Price
Highlight:

IPG Laser Rust Removing Machine

,

Raycus Laser Rust Removing Machine

,

Non Contact 1000W Laser Cleaner

Laser:
CW Fiber Laser
Laser Power:
500-2000W
Wavelength:
1.064 Um
Sevices:
Wholelife
Certificates:
CE
Warranty:
2year
Scanning Width:
10-170 Mm
Fiber Length:
15m
Keywords:
Laser Cleaning Machine
Laser:
CW Fiber Laser
Laser Power:
500-2000W
Wavelength:
1.064 Um
Sevices:
Wholelife
Certificates:
CE
Warranty:
2year
Scanning Width:
10-170 Mm
Fiber Length:
15m
Keywords:
Laser Cleaning Machine
Non Contact 1000W Raycus JPT IPG Laser Rust Removing Machine

Fast Clean Laser 1000W Raycus JPT IPG Fiber Laser Rust Removal Machine



Description:

Fiber laser cleaning machine adopt a cheap Continuous fiber laser source.

The cleaning is fast but need to work on thick metal and materials which are not easy burned, like stone, brick, glass etc.

Compared with Pulsed fiber laser source, CW laser is much cheaper price.

So if you have special and unique laser job, this may be a good choice



The fiber cable length can make it longer up to 20 meters.The laser derusting machine can be customized according to customer requirements.

We have sealed bench top,hand held types outlooks to choose from.

For laser power, we also have 500W,1500W 2000W to choose.



Characteristic:



1. Fiber laser high power laser cleaning machine

2. Non-contact cleaning, no damage to the parts matrix.

3. Accurate cleaning, can achieve precise location, precise size selective cleaning.

4. No consumables, safe and environmental protection.

5. Simple operation, power can be hand-held or with the robot to achieve automated cleaning.

6. Efficiency is very high, save time.

7. Laser cleaning system stability, maintenance-free.







Non Contact 1000W Raycus JPT IPG Laser Rust Removing Machine 0





Non Contact 1000W Raycus JPT IPG Laser Rust Removing Machine 1

Specifications:



Model

QA-LC500C

QA-LC1000C

Laser source

Fiber Laser

Fiber Laser

Laser Power

500W

1000W

Fiber cable L

10M

15M

Wavelength

1080nm

1080nm

Frequency

50-20000 Hz

50-20000 Hz

Clean speed

≤35 M²/Hour

≤40 M²/Hour

Cooling

Water cooling

Water cooling

Dimension

1200*600*1180 mm

1200*600*1180 mm

Weight

200Kg

220Kg

Beam width

10-170mm

10-170mm

Optional

Manual

Manual

Temperature

10-40 ℃

10-40 ℃

Power

< 6KW

< 7KW

Voltage

Single Phase 220V, 50/60HZ

Single Phase 220V, 50/60HZ

Non Contact 1000W Raycus JPT IPG Laser Rust Removing Machine 2

Application

Components combination, welding surface pretreatment, metal surface stripping (all surface paint or designated parts off paint) and a variety of industrial products or molds cleaning

 lc applications





FAQ



1. Q: What is the warranty of the 1000W laser cleaning machine?

   A: 2 years.

2. Q: Are you a factory or trading company?

   A: Quesstt Laser is a factory for 22 years.Got import and export License.

3. Q: How about the quality?

   A: Technology is from Germany.High quality best price.

4. Q: What is your after-sale service?

   A: If needed,Questt Laser offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5. Q: How do i get technical support after purchasing?

   A: Questt Laser offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

 6. Q: How can i get assurance of my Payment?

 A: Alibaba have Trade Assurance,you can pay throught Alibaba first. Non Contact 1000W Raycus JPT IPG Laser Rust Removing Machine 4
