High Accuracy CNC Metal Sheet Fiber Laser Cutting Machine 500W

Place of Origin China
Brand Name Questt
Certification ISO , CE
Model Number QA-FL500P
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Standard Exporting Wooden Cases
Delivery Time 5 - 28 days
Payment Terms T/T, Western Union, L/C
Supply Ability 3988 sets / year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Work Talbe Sealed Laser Fiber Laser
Power 500W Working Area 600x600mm
Control System CNC Service Offer Overseas Service
High Light

CNC Metal Fiber Laser Cutting Machine

,

500W Fiber Laser Cutting Machine

Leave a Message
Product Description

 500W High Accuracy CNC Metal Sheet Fiber Laser Cutting Machine Best Price



Introduction



Small High precision laser cutting machine equipped with linear motors for high accuracy with 0.005mm.

The laser cutter has the characteristics of high precision and small size,use the aviation aluminum beam,adopt the motor and guide rail of international famous brand.

It is suitable for stainless steel, carbon steel, copper, aluminum.Especially for thin metal sheet and small hole cutting.



Features

1. High-performance laser source with good beam quality, high power stability;

2. Professional cutting software, multi-level authority operation, convenient for production management

3. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.

4. X,Y axis Liner motor and Guider for precision cutting.

5. The cutting precision of the whole machine is ±25um, the equipment stability is high, CPK>1.33.

7.The software has graphics nesting and sharp corner smoothing processing functions, which can realize high-speed cutting, punching, and marking functions.

8.The optical path of the whole machine is conducted by optical fiber, the external optical path is maintenance-free, and the consumption of easy loss is very small.





Parameter datas

Technical Data Sheet



Laser Cutting Machine Model QA-FL500











Raytool

Laser

Head



Model BM109 FC
Focal length of collimator 100mm
Focal length of focusing lens 125mm, 150mm
Autofocus Yes
Autofocus Range + 8 ~ - 9mm
Autofocus Acceleration ≤ 10m / S ²
Autofocus Speed ≤ 6m / min
Autofocus Accuracy ≤ 50 μ m
Nozzle hole specification single layer, double layer, non-standard
Optical fiber interface QBH, QD
Nozzle aperture 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
Focusing aperture 26mm
Collimating protective mirror φ 24.9mm*1.5mm
Focusing protective lens φ 27.9mm*4.1mm
Auxiliary gas pressure ≤ 25bar
Weight 3kg













IPG

Laser Source

Fiber cable length 10M
Fiber core Round
Fiber core size 50um
Laser Power 500W
Frequency 0-50KHz
Wavelength 1070 ±10 nm
Central Wavelength Accuracy, nm ±1
Mode of operation CW/modulated
Power Tunability, % 10-100
Power Stability, % ±2
Optical Noise, % RMS <2
Polarization Linear, > 50:1
Beam Quality, M2 <1.1
Cooling Air
Laser dimension 448 × 502 × 266
Laser Weight <50 KGS
  Supply Voltage, single-phase 50 - 60 Hz 200 - 240
Power Consumption, W 1500



X,Y axis

Liner motor Taiwan Hiwin
Guider Taiwan Hiwin
Grating ruler Renishaw 0.5μ m



Cabinet

Table Marble table
Machine Size 1900x1450x1705mm
Net weight 800kg
Gross weight 1000kg



Samples

High Accuracy CNC Metal Sheet Fiber Laser Cutting Machine 500W 0

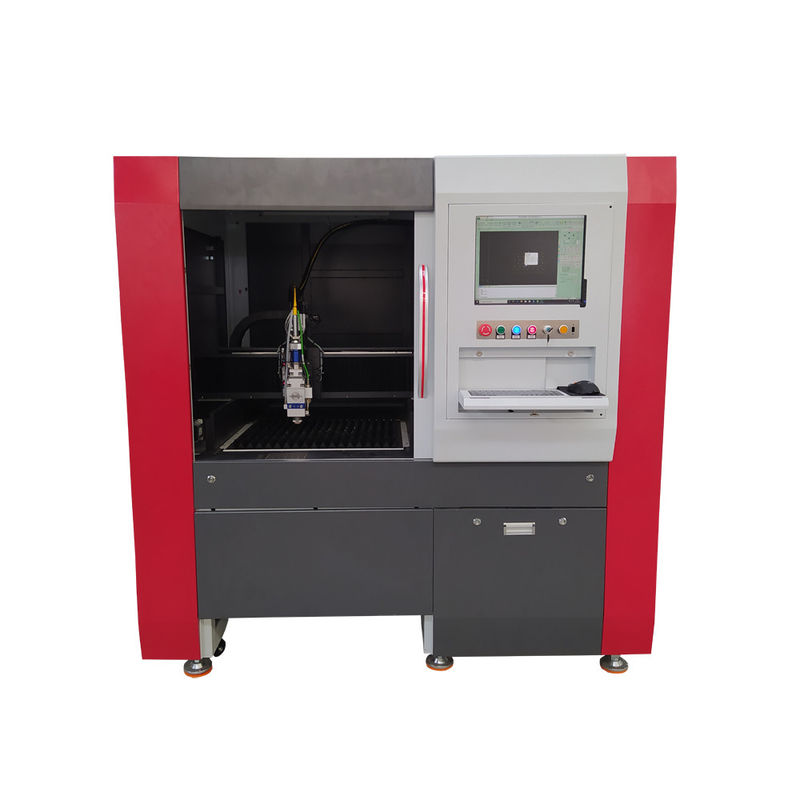

Machine outlook

High Accuracy CNC Metal Sheet Fiber Laser Cutting Machine 500W 1

FAQ



1 Q: What is the warranty of fiber laser cutting machine?

A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc. Any payment term you prefer.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.

4 Q: How is the quality of the machine?

A: High quality. Price is reasonable.

5 Q: What is the brand of laser source?

A: Raycus or IPG.

High Accuracy CNC Metal Sheet Fiber Laser Cutting Machine 500W 2
