Product Details
Place of Origin: Wuhan,China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-FLW1000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden cases
Delivery Time: 5-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 9988 sets / year
Laser Type: |
CW Fiber Laser Source |
Wavelength: |
1080nm |
Laser Power: |
1000W-2000W |
Welding Wire: |
0.1-2mm |
Welding Frenquency: |
1-50HZ |
Power Supply: |
220V 50HZ |
GW: |
120kgs |
Laser Type: |
CW Fiber Laser Source |
Wavelength: |
1080nm |
Laser Power: |
1000W-2000W |
Welding Wire: |
0.1-2mm |
Welding Frenquency: |
1-50HZ |
Power Supply: |
220V 50HZ |
GW: |
120kgs |
Introduction

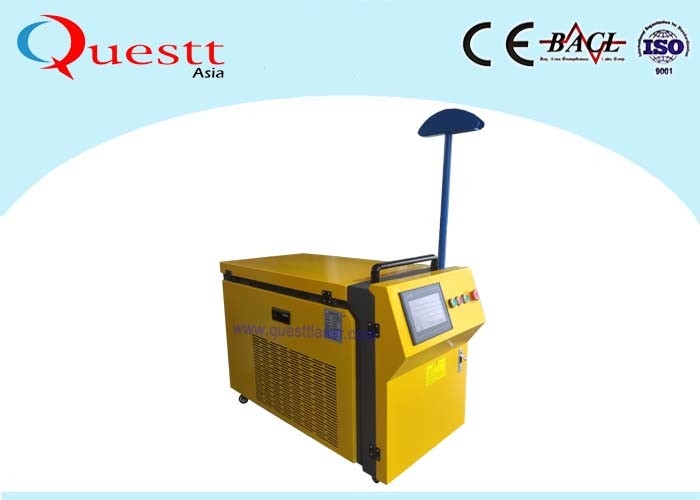

QA-FLW1000 is a three in one laser machine,that can do cutting,welding and cleaning 3 different jobs. Just need to exchange the laser head.
The laser welder adopts a continous fiber laser source, with long lifetime up to 100,000 hours. Laser power can choose from 1000W to 3KW
The laser head adopts water-cooled design, it won’t get over-heated during welding and cutting, small diameter, easy for hand-holding.
We also add a wire feeding machine, for steady welding with big seam.
For cutting function, same system and head as welding.
For cleaning function,need to change to cleaning system mode, the head also need to change to cleaning Focus lens and head.
This machine is perfect for metal process factory, who will need welding, cutting and cleaning jobs. One machine will do all these jobs.
I will save money to buy 3 machines.
1. Small cabinet with light weight
2. One machine has 3 diferent functions
3. Save money for investment
4. Fast process speed
5. Cheap price for promotion
6. Easy exchange laser heads
7. Lower cost for air shipping
Specification
|
Model |
QA-FL1000M |
QA-FL1500M |
|
Average output power |
1000W |
1500W |
|
Operation Mode |
CW/Modulate |
|
|
Max Modulation Frequency |
5KHz |
|
|
Output Power Stablility |
<3% |
|
|
Red Laser |
Yes |
|
|
Terminal Type |
QBH |
|
|
Beam Quality |
1.3M2 |
1.5M2 |
|
Polarization |
Random |
|
|
Delivery Cable Length |
8-20M |
|
|
Power Supply |
3 PH 380V five wire connect |
|
|
Control Mode |
RS232/AD |
|
|
Power Consumption |
4KW |
5KW |
|
Cooling |
Water Cooled |
|
|
Operation Temperature |
10-40 degree |
|
|
Max Depth of welding |
3mm |
4mm |
|
Machine Weight |
120/130Kg |
|
Application
Laser welding, cutting and cleaning
FAQ
1 Q: What is the warranty of the 1000W laser welding machine?
A: The warranty is 2 years.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.
3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
