Product Details
Place of Origin: Wuhan,China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-FL1500M
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden cases
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 9998 sets / year
Laser Type: |
CW Fiber Laser |
Wavelength: |
1080nm |
Laser Power: |
1000-2000W |
Welding Wire: |
0.1-2mm |
Welding Frenquency: |
1-50HZ |
Power Supply: |
220V 50HZ |
GW: |
120kgs |
Laser Type: |
CW Fiber Laser |
Wavelength: |
1080nm |
Laser Power: |
1000-2000W |
Welding Wire: |
0.1-2mm |
Welding Frenquency: |
1-50HZ |
Power Supply: |
220V 50HZ |
GW: |
120kgs |
Introduction

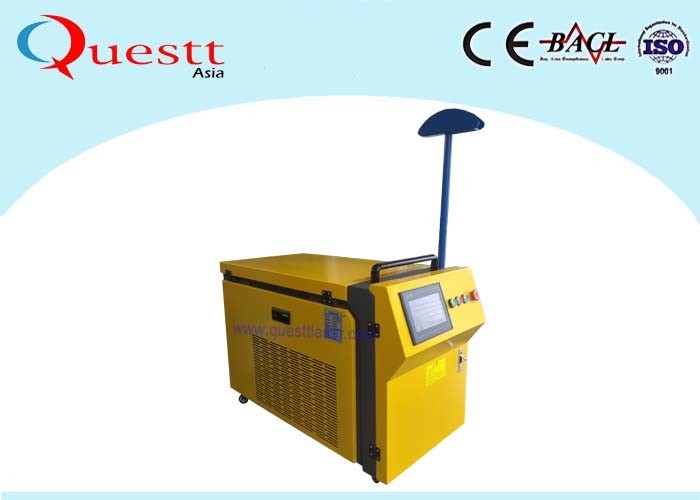

QA-FL1500M is a three in one laser machine,laser cutter laser welder laser cleaner.
This new three in one laser system equipped with a continous fiber laser source, which has long lifetime up to 100,000 hours.
Laser power can choose from 1000W to 3000 watts
The laser head adopts water-cooled design, it won’t get over-heated, small size and light weight offer long time working.
To make sure the metal welded steady, the laser welder also add a wire feeding machine, feeding wire diameter range from 0.1-2mm.
For cutting process, share same system and laser head with welding.
For cleaning function,need to change to cleaning system mode, the head also need to change to cleaning Focus lens and head.
This three in one laser machine is perfect for metal production factory, who will need to do all welding, cutting and cleaning jobs.
If you has limited budget, this machine is first choice to start.Saving money to invest only one machine instead of 3 machines.
1. Small cabinet with lighter net weight
2. Multi functions of laser process
3. Save money inteast of buying 3 machines
4. Fast working speed
5. Cheap price for promotion
6. Easy exchange laser heads
7. Lower cost for air shipping
Specification
Model |
QA-FL1000M |
QA-FL1500M |
Average output power |
1000W |
500W |
Operation Mode |
CW/Modulate |
|
Max Modulation Frequency |
5KHz |
|
Output Power Stablility |
<3% |
|
Red Laser |
Yes |
|
Terminal Type |
QBH |
|
Beam Quality |
1.3M2 |
1.5M2 |
Polarization |
Random |
|
Delivery Cable Length |
20M |
|
Power Supply |
3 PH 380V five wire connect |
|
Control Mode |
RS232/AD |
|
Power Consumption |
4KW |
5KW |
Cooling |
Water Cooled |
|
Operation Temperature |
10-40 degree |
|
Max Depth of welding |
3mm |
5mm |
Machine Weight |
120Kg |
Application
Laser welding, cutting and cleaning
Widely used in Kitchenware industry, daily utensils, auto parts, elevator equipment, car decoration, sheet metal production, display equipment, parts, and other industries
FAQ
1 Q: What is the warranty of the 1500W Handheld laser welder?
A: The warranty is 2 years.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.
3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
