1000W Laser Cutter CNC Small High Precision Metal Sheet Fiber Laser Cutting Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Work Talbe | Sealed | Laser | Fiber Laser Source |
|---|---|---|---|
| Power | 1000W | Working Area | 600x600mm |
| Control System | CNC | Service | Offer Overseas Service |
| High Light | 1000W Laser Cutter,600x600mm CNC Laser Cutter,1080nm Fiber Laser Cutting Machine |
||
Product Description
1000W Laser Cutter CNC Small high precision metal sheet fiber laser cutting machine
Overview
QA-FL1000P Precise fiber laser cutting machine is a sealed type with mini cabinet to save shipping cost.
The laser cutter machine can reach Europen safety standard. Best choice for high safety request customers.
For laser power, it can equipped with 1000W to 3000W fiber laser source.
The control system is CNC. The cutting software is Cypcut.
The fiber laser cutting machine is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CN programe,can process any graphics and text.
Parameter datas
| Laser output power | 1000W |
| Laser wavelength | 1080 nm |
| Laser medium | Glass fiber with rate-earth element |
| Repeat accuracy | ±0.01mm |
| Max cutting speed | 18m/min |
| Max cutting thickness | 3-6mm according to material |
| Output energy regulating | 10%~100% |
| Input electric power for laser | ≤2KW |
| Type of cooling | Water cooling |
| Drive mode | Imported servo motor |
| Transmission mode | Imported high precision Rack and Pinion |
| X Y axis movement | 600mm×600 mm (Optional: 200x200mm,300x300mm,400x400mm,500x500mm) |
| Z axis movement | 100mm |
| Power supply | Single phase 220V/50HZ |
| Contour dimension | 1900mm×1550 mm×1800 mm |
| Weight | 800kg |
Samples

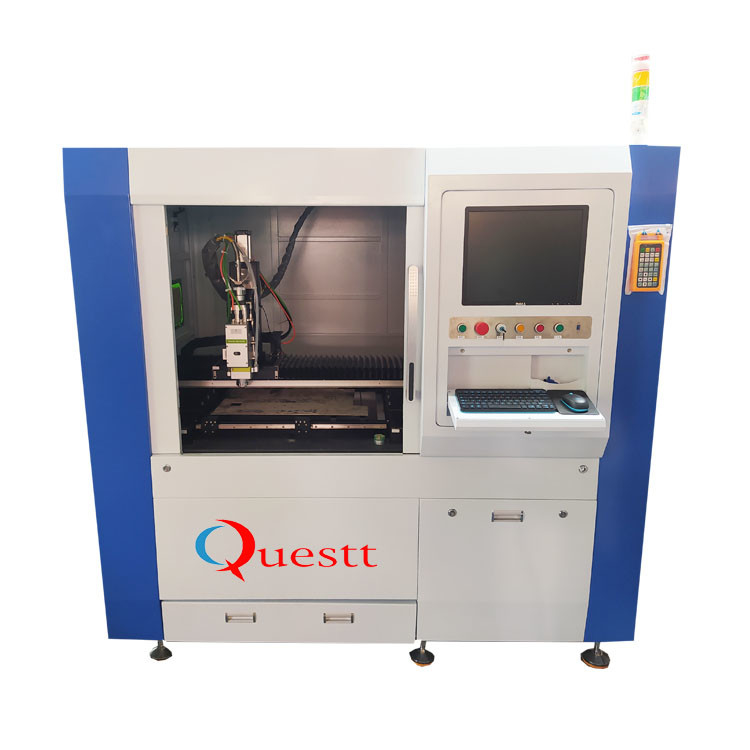

Machine outlook
FAQ
1 Q: What is the warranty of the fiber laser cutting machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
5 Q: What is the brand of laser source?
A: Raycus or Max.
