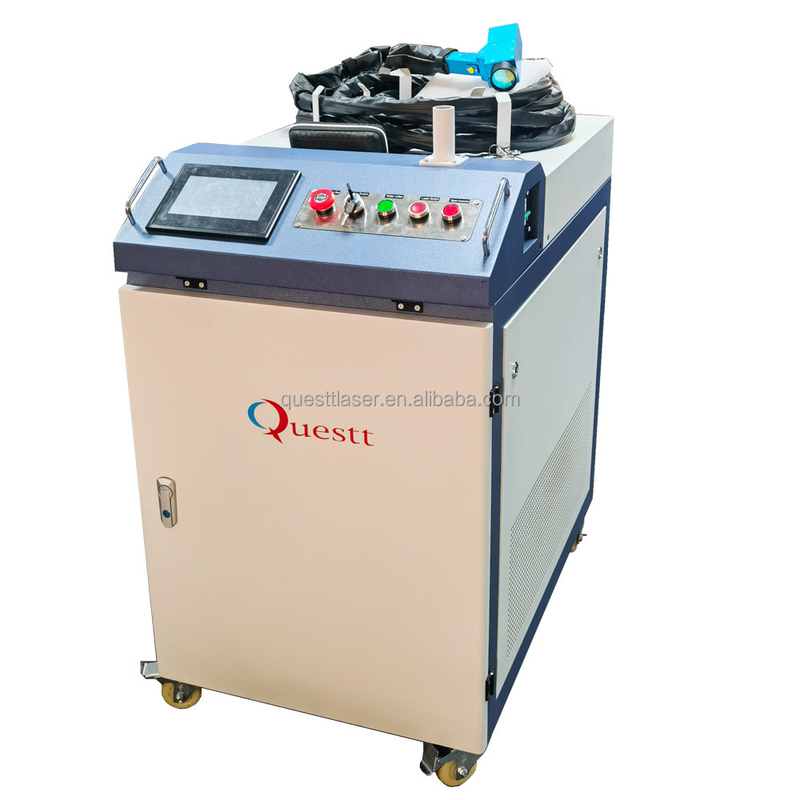

1000w 1500w 2000w 3000w Laser Cleaning Metal Rust Removal Cleaner Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Power | 1000-3000 Watt | Laser Width | 10-254mm |
---|---|---|---|
Laser Source | Fiber Laser | Service | Online And Overseas Service |
Speed | 0-10000mm/min | Weight | 200kg |
CW High Power Laser Cleaning Machines
Description:
High power CW laser cleaning equipment adopts single-mode continuous fiber laser source. The laser power is continuously adjustable. It has higher photoelectric conversion efficiency (>30%), better and more stable beam quality, and stronger anti-high reaction ability. Its price is very favorable.
Product features:
1. High electro-optical conversion efficiency
2. Maintenance-free operation
3. Stronger anti-high reaction ability
4. QBH connector
5. Easy to operate
6. Environmentally friendly;
Comparison with Traditional Cleaning Methods:
Comparisons | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
Washing Methods | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
Harm to base materials | None | Yes | Yes | None |
Washing Efficiency | High | Low | Low | Mid. |
Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
Washing results | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
Operations | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
Investments | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Specifications:
Model | QA-LC1000C | QA-LC1500C | QA-LC2000C |
Laser source | Fiber Laser | Fiber Laser | Fiber Laser |
Laser Power | 1000W | 1500W | 2000W |
Fiber cable L | 15M | 15M | 15M |
Wavelength | 1080nm | 1080nm | 1080nm |
Frequency | 20KHz | 20KHz | 20KHz |
Clean speed | ≤40 M²/Hour | ≤60 M²/Hour | ≤80 M²/Hour |
Cooling | Water cooling | Water cooling | Water cooling |
Dimension | 1200*600*1180 mm | 1200*600*1180 mm | 1200*600*1180 mm |
Packing | 1400*680*1250mm | 1400*680*1250mm | 1400*680*1250mm |
Net weight | 200Kg | 210Kg | 215Kg |
Gross weight | 240kg | 250kg | 255kg |
Beam width | 10-254mm | 10-254mm | 10-254mm |
Optional | Manual | Manual | Manual |
Temperature | 10-40 ℃ | 10-40 ℃ | 10-40 ℃ |
Power | < 6KW | < 7KW | < 8KW |
Voltage | Single Phase 220V, 50/60HZ | Single Phase 220V, 50/60HZ | Three Phase 380V, 50/60HZ |
Contaminant
The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure 1) are the most difficult to destroy.
Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants
Application scope:
Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal,
Industry: aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc
FAQ:
1 Q: What is the warranty of the laser cleaning machine?
A: 1 year machine warranty, 2 years laser source warranty and whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service for little problems, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
We offer operation manual and videos, show you how to operate the machine.
