Product Details
Place of Origin: wuhan
Brand Name: Questt
Certification: Questt Certification
Model Number: QA-LC1500C
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Wooden cases
Delivery Time: 3-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 9988 sets / year
Power Stability: |
±1% |
Working Humidity: |
30-90%RH |
Scanning Speed: |
1-500mm/s |
Scanning Range: |
100*100mm |
Laser Wavelength: |
1064nm |
Control System: |
PC Control |
Pulse Frequency: |
5KHz |
Power Supply: |
AC220V |
Power Stability: |
±1% |
Working Humidity: |
30-90%RH |
Scanning Speed: |
1-500mm/s |
Scanning Range: |
100*100mm |
Laser Wavelength: |
1064nm |
Control System: |
PC Control |
Pulse Frequency: |
5KHz |
Power Supply: |
AC220V |

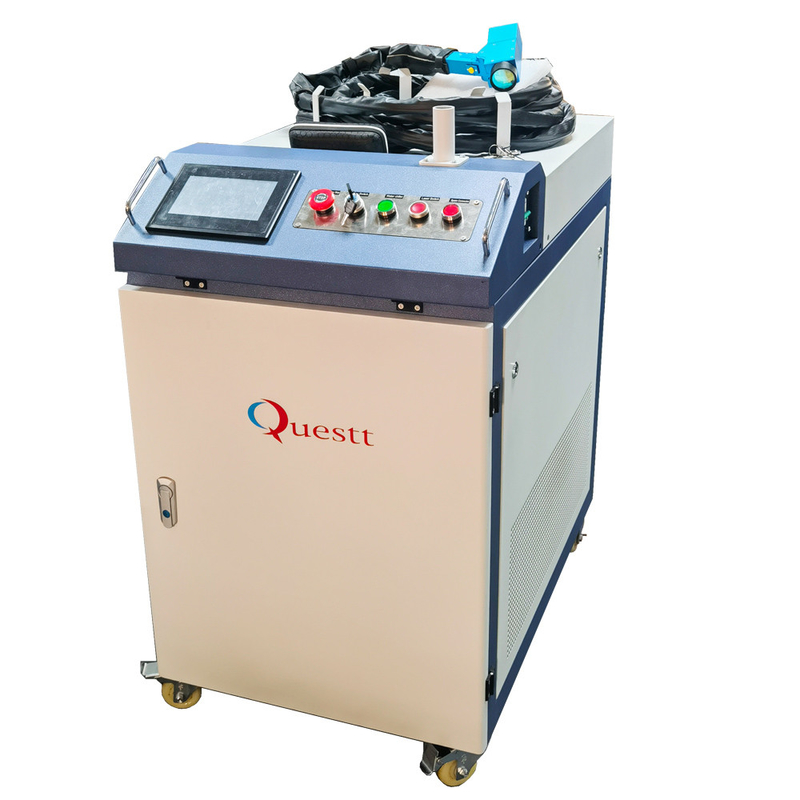

1KW Handheld Fiber Laser Rust Removal Machine adopt a 1000W Continuous fiber laser source. For laser brands,you can choose from Raycus,MAX,IPG,JPT,GW etc. It has long lifetime up to 100,000 hours, and can work 24 hours without stop. For laser power, we also have 1000W,1500W 2000W 3000W to choose.
The laser cleaning speed is very fast with such high laser power, but need to work on thick metal and materials which are not easy burned, like stone, brick, glass etc,because it will create much heat during working.
Compared with Pulsed fiber laser sources, Continuous fiber laser is much cheaper, also have advanges on some cleaning conditions.
So if you only need to clean rust on carton steel, this model maybe a best choice.
The fiber cable length is 10 meters, and also can customize longer up to 20 meters.The CW Laser Rust Removal Machine can be customized according to customer requirements.
For laser beam width,we can make it up to 500mm.The standard one is about 200mm.
1. High power fiber laser source.
2. Non-contact cleaning.
3. Accurate cleaning, can achieve precise location.
4. Safe and environmental protection.
5. Simple operation, power can be hand-held or with the robot to achieve automated cleaning.
6. Efficiency is very high, save working time.
7. Maintenance-free,long lifetime up to 100,000 hours.
8. Phone App operation is OK.
Parameter | Details |
---|---|
Cooling System | Water Cooling |
Power Supply | AC220V |
Power Stability | ±1% |
Pulse Frequency | 5KHz |
Output Power | 1500W |
Scanning Speed | 1-500mm/s |
Scanning Range | 100*100mm |
Working Temperature | 0-40℃ |
Pulse Width | 10-20ns |
Laser Wavelength | 1064nm |
Components combination, welding surface pretreatment, metal surface stripping (all surface paint or designated parts off paint) and a variety of industrial products or molds cleaning
The Laser Cleaning Machine will be securely packaged to protect it from any damage during shipping. The package will include the following materials:
The product will be shipped using a reliable courier service with tracking information. All deliveries will be insured against any damage or loss.
