Suitcase Laser Cleaning Machine
, 200W Pulse Laser Cleaning Machine
200W Pulse Suitcase Fiber Laser Cleaning Machine Air cooling
Suitcase style 200W laser cleaning machine fiber laser cleaner for paint rust removal
Introduction

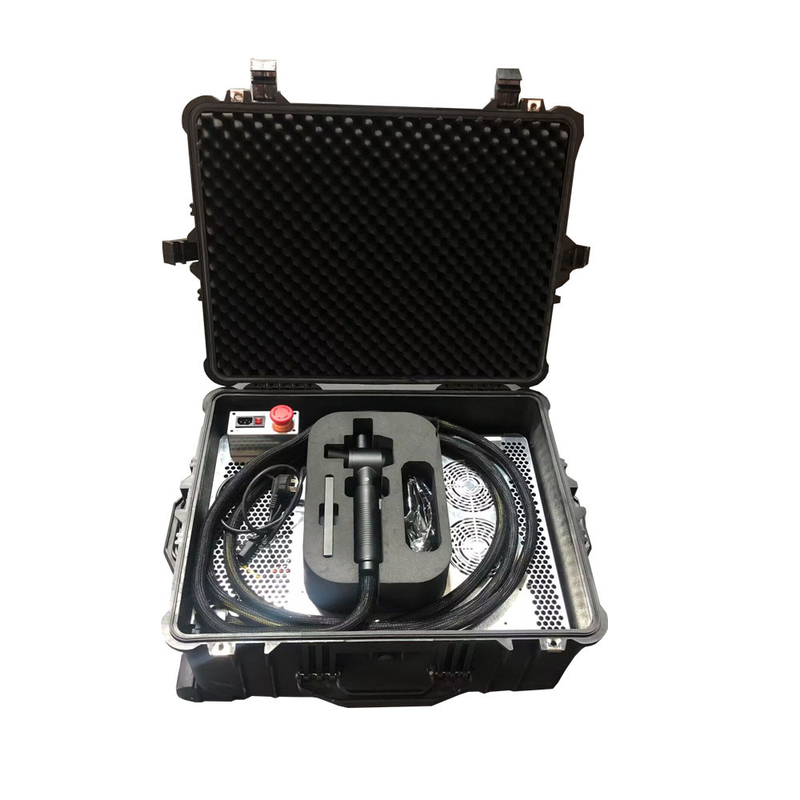

QA-LC200S Laser cleaning machine is a suitcase type machine.The weight is only 33kg, the outlook is the same as a travel case , which is very easy to take along and move. Touch screen controller is as easy to operate as a mobile phone. We also approved to add Phone APP control system.
The cleaning process is very simple and rapid. It can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.
Characteristic:
1. Compact dimension and light weight
2. 8 kinds of cleaning modes
3. Self-developed cleaning system
4. Good cooling and ventilation effect
5. Easy maintenance
6. High cleaning efficiency
7. High-Tech non-contact cleaning
Specifications:
| Optical parameters |
| Model |
QA-LC200S |
| Laser source |
Fiber |
| Laser power |
200W |
| Fiber cable length |
5 M |
| Laser wavelength |
1064nm |
| Pulse energy |
1.5 mJ |
| Pulse frequency |
1-4000KHz |
| Pulse width |
2-500ns |
| Power range |
10-100 adjustable |
| Cleaning speed |
≤12 M²/Hour |
| Power instability |
<5% |
| Cooling |
Air cooling |
| Cleaning head parameters |
| Scan range |
0mm-110mm, supporting 8 scanning modes |
| Field mirror focal length |
160mm(Optional) |
| Cleaning head weight |
＜0.6kg |
| Mechanical parameters |
| Machine dimension |
540*400*290 mm |
| Packing dimension |
680x540x400mm |
| Net weight |
25kg |
| Gross weight |
28kg |
| Operating environment |
| Power consumption |
≤800W |
| Temperature |
-40 ℃-40 ℃ |
| Voltage |
Single phase 110V/220V±10%,50/60Hz |
| Working environment humidity |
≤80% |
Configurations
 |
Laser cleaning head
The laser head is small and light, weighing less than 0.6kg, equipped with dust-proof protective mirrors.
|
|
Touch screen controller
Wireless touch operation screen, small size like mobile phone, light weight. There are 8 kinds of preset modes.
|
|
|
Mobile APP control
There are two control methods, one is a handheld controller, and the other is controlled by a mobile phone Bluetooth APP, with a timing function. Easy operation.
|
|
|
Laser source
JPT pulse laser source, maximun monopulse energy is 1.5mJ. The lifetime is 100000hours, warranty is 2 years.
|
|
Laser safety goggles
Laser safety goggles protect your eyes from laser damage,with a high protection index and very safe
|
|
Focus lens
Standard F160 focus lens, cleaning width 100mm, optional larger focus lens, maximum cleaning width supports 300mm
|
Application scope:
All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc all the old and durty items
FAQ
1 Q: What is the warranty of the machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
