Paint removal Rust off affordable 200W pulse laser cleaning machine

Place of Origin Wuhan, China
Brand Name QUESTT
Certification CE ISO
Model Number QA-LC200S
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard Exporting Wooden Box
Delivery Time 11 days
Payment Terms T/T, L/C, Western Union
Supply Ability 2300 sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Type Fiber Laser Laser Power 2100w
Wave Length 1064 Nm Sevice Online Service
Cable Length 5m Type Suitcase Type
Warranty 2 Years
Leave a Message
Product Description

200W Portable Handheld Laser Paint Rust Removal Remover Pulse Cleaner Cleaning Machines



Introduction

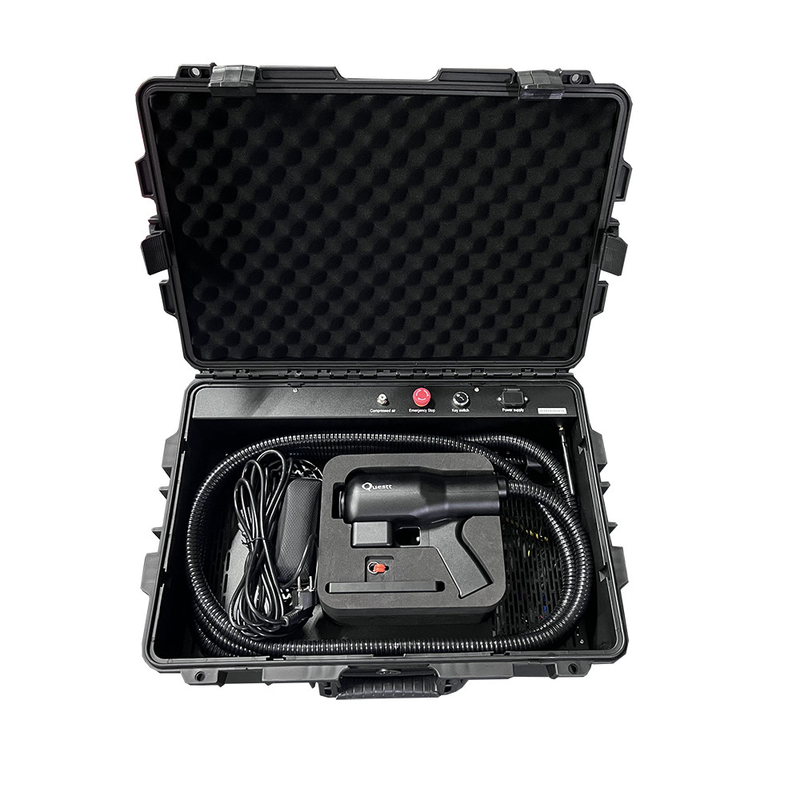

QA-LC200S Laser cleaning machine is a suitcase type machine.The weight is only 27kg, the outlook is the same as a travel case , which is very easy to take along and move. Touch screen controller is as easy to operate as a mobile phone. We also approved to add Phone APP control system.

The cleaning process is very simple and rapid. It can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.





Characteristic:



1.Compact dimension and light weight

2. 8 kinds of cleaning modes

3. Self-developed cleaning system

4. Good cooling and ventilation effect

5. Easy maintenance

6. High cleaning efficiency

7. High-Tech non-contact cleaning



Specifications:

Optical parameters
Model QA-LC200S
Laser source Fiber
Laser power 200W
Fiber cable length 5 M
Laser wavelength 1064nm
Pulse energy 1.8 mJ
Pulse frequency 135KHz
Pulse width 150-200ns
Power range 10-100 adjustable
Cleaning speed ≤12 M²/Hour
Power instability <5%
Cooling Air cooling
Cleaning head parameters
Scan range 0mm-110mm, supporting 8 scanning modes
Field mirror focal length 160mm(Optional)
Cleaning head weight <1kg
Mechanical parameters
Machine dimension 670*450*310 mm
Packing dimension 680x540x400mm
Net weight 27kg
Gross weight 30kg
Operating environment
Power consumption ≤800W
Temperature -40 ℃-40 ℃
Voltage Single phase 110V/220V±10%,50/60Hz
Working environment humidity ≤80%



Configurations



Paint removal Rust off affordable 200W pulse laser cleaning machine 0









Laser cleaning head

The laser head is small and light, weighing less than 1kg, equipped with rollers.

Paint removal Rust off affordable 200W pulse laser cleaning machine 1





Touch screen controller

Wireless touch operation screen, small size like mobile phone, light weight. There are 8 kinds of preset modes.





Paint removal Rust off affordable 200W pulse laser cleaning machine 2





Mobile APP control

There are two control methods, one is a handheld controller, and the other is controlled by a mobile phone Bluetooth APP, with a timing function. Easy operation.

Paint removal Rust off affordable 200W pulse laser cleaning machine 3





Laser source

JPT pulse laser source, maximun monopulse energy is 1.5mJ. The lifetime is 100000hours, warranty is 2 years.

Paint removal Rust off affordable 200W pulse laser cleaning machine 4

Buttons

  • Power plug:110/220v, We will adapt to power plugs for different countries

2.Key switch: The main power switch of the machine.

3.Emergency stop button: Emergency stop button of the equipment.

4.Air interface:Connect dry compressed air to prevent dust from damaging the lens during cleaning



Paint removal Rust off affordable 200W pulse laser cleaning machine 5



Laser safety goggles

Laser safety goggles protect your eyes from laser damage,with a high protection index and very safe



Paint removal Rust off affordable 200W pulse laser cleaning machine 6





Focus lens

Standard F160 focus lens, cleaning width 100mm, optional larger focus lens, maximum cleaning width supports 300mm



Application scope:



All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc all the old and durty items





FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc. Any payment term you prefer.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.

4 Q: How is the quality of the machine?

A: High quality. Price is reasonable.
