Product Description:

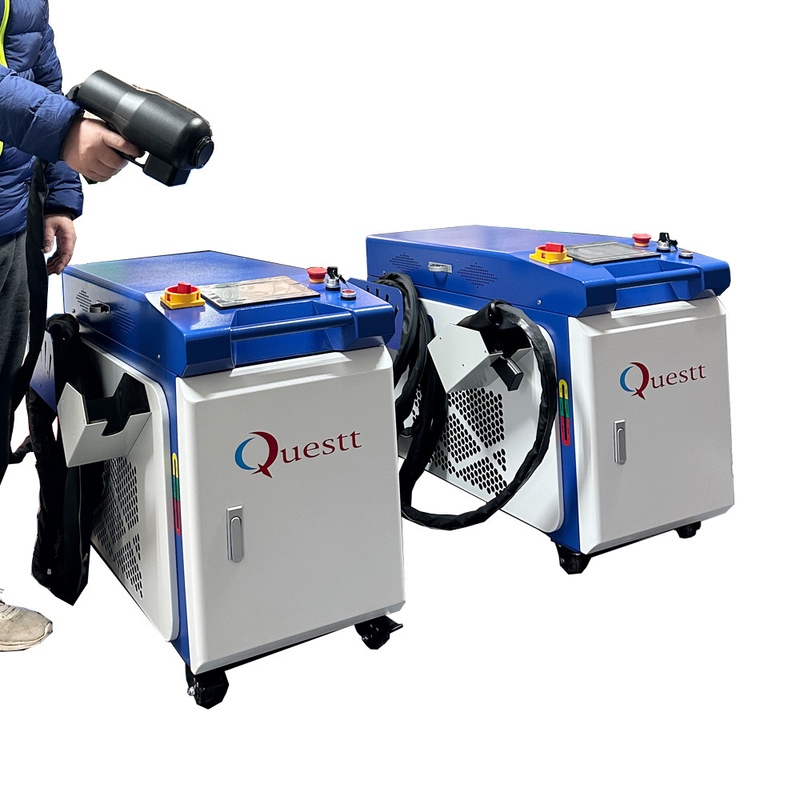

QA-LC300 Laser cleaning machine use mini cabinet. The weight is 110kg, which is very easy to take along and move. Touch screen panel is as easy to operate as a mobile phone. We also approved to add Phone APP control system.
The cleaning process is very simple and rapid. It can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.
Features:
- Support 8 kinds of laser cleaning wave
- 2 years warranty
- Water chiller
- Laser cleaning head with parallel light
- Support customize logo and language
Technical Parameters
| Optical parameters |
| Model |
QA-LC300 |
| Laser source |
Fiber |
| Laser power |
300W |
| Fiber cable length |
10M |
| Laser wavelength |
1064nm |
| Pulse energy |
15mJ |
| Pulse frequency |
1-1000KHz |
| Pulse width |
10-500ns |
| Power range |
10-100 adjustable |
| Cleaning speed |
≤30 M²/Hour |
| Power instability |
<5% |
| Cooling |
Water cooling |
| Cleaning head parameters |
| Scan range |
0mm-175mm, supporting 8 scanning modes |
| Field mirror focal length |
254mm(Optional) |
| Cleaning head weight |
＜1kg |
| Mechanical parameters |
| Machine dimension |
980*500*700 mm |
| Packing dimension |
1100*630*760mm |
| Net weight |
110kg |
| Gross weight |
150kg |
| Operating environment |
| Power consumption |
≤3000W |
| Temperature |
-40 ℃-40 ℃ |
| Voltage |
Single phase 220V±10%,50/60Hz |
| Working environment humidity |
≤80% |
Applications:
Laser cleaning machines have diverse applications. In industrial manufacturing, they effectively remove rust, paint, and contaminants from metal surfaces. In the cultural heritage field, they delicately clean ancient relics and artworks. Additionally, they are used in the medical industry for sterilizing equipment and in the automotive sector for cleaning molds and components, showcasing their versatility and efficiency in various sectors.
