CNC Numerical Control Small Metal Laser Cutting Machine 0-8mm For Auto Parts
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 500W | Work Size | 600 X 600 Mm |
|---|---|---|---|
| Laser | YAG Laser | Service | Offer Oversea Services |
| Cutting Thickness | 0-8mm | Control System | CNC |
| High Light | yag laser cutting machine,industrial laser cutting machine |
||
Product Description
CNC Numerical Control Small Metal Laser Cutting Machine For Iron Steel 500W
Overview
QA-YAG650 YAG CNC Metal Laser Cutting Machine is a small YAG type laser cutter for all kinds of metals, like steel, iron, aluminum, copper etc.
Its numerical controlling system controls the pulse width, laser energy, peak value and repeatability accuracy of the machine and make material fusing, gasifying instantly for realizing cutting, welding, drilling by numerical controlling according to scheduled track. The machine is including laser generator, (external) laser beam transmission part, worktable (machine tool), main controlling cabinet, cooling system and computer digital controlling system (hardware and software) etc..
The laser cutter has good beam quality, high reliability, and so many multi-functions like cutting, welding, drilling.
Configuration
1. Nd:YAG 500W laser source
2. Laser power supply
3. Laser cooling system,
4. Laser Cutting head ,
5. CNC worktable 600x600mm
6. CNC Control System
7. Fume Extraction and Dust Collector System
8. Air-dryer and Compressor
Advantages
1. Faster processing speed is faster, higher efficiency.
2. Smaller cutting slit, smoother cutting edge, bigger depth/diameter rate and depth/width
3. Small distortion, suitable for hard, fragility, soft material
4. No wear, no exchange problems, no mechanical distortion
5. Suitable for the special environment.
6. Low running cost: The cutting cost by air is only 1.95usd/hour
7. Optimized optical lens, specially designed nozzle and sensor technology realize more stable and smooth cutting.
8. Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;
Parameter datas
| Laser medium | Nd3+:YAG |
| Light wavelength | 10640nm |
| MAX output power | 500W |
| the max. divergence | 25mrad |
| Single pulse energy | 10J |
| Pulse width | 0-20ms adjustable |
| Pulse repeated frequency | 0-300Hz adjustable |
| Cooling system | Double circle water cooling |
| Diameter of the smallest beam spot | 0.01mm |
| Cutting area | 1.3*2.5M/ |
| Max Cutting Speed | 0-3M/min |
| Cutting Position accuracy | 0.02mm/1000mm |
| Max thickness for SS | 0-6mm |
| Power supply and cooling system | Three-phase,AC,380V10% 18KW deionized water cooling |
| Components | Main cabinet, power cabinet, X-Y worktable, heat exchanger, cooling system |
| Service | Engineer offer oversea service |
Cutting parameter
| 300W | 500W | 650W | |
| Carbon steel | 0-3mm | 0-6mm | 0-8mm |
| Stainless steel | 0-2mm | 0-3mm | 0-4mm |
| Aluminum alloy | 0-1mm | 0-2mm | 0-3mm |
Application
Applied in medical microelectronics, frames,subway spare parts, auto parts, handicraft, hardware tools, advertising, etc.
Cutting carbon steel, stainless steel, Aluminum alloy, copper alloy, Ti alloy, nickel molybdenum alloy and so on.

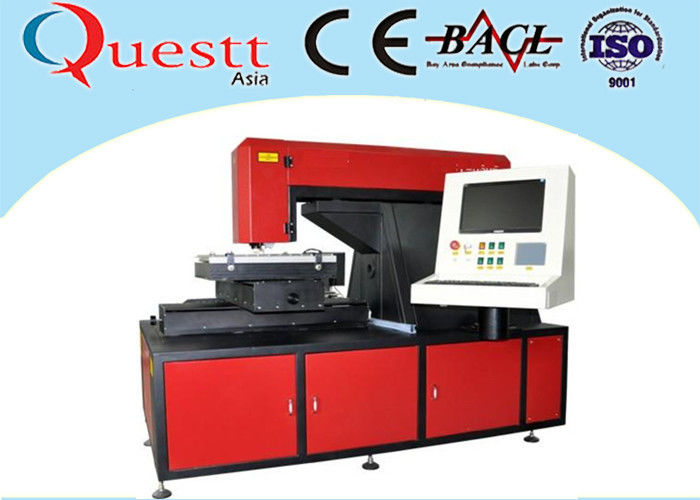

Machine outlook
