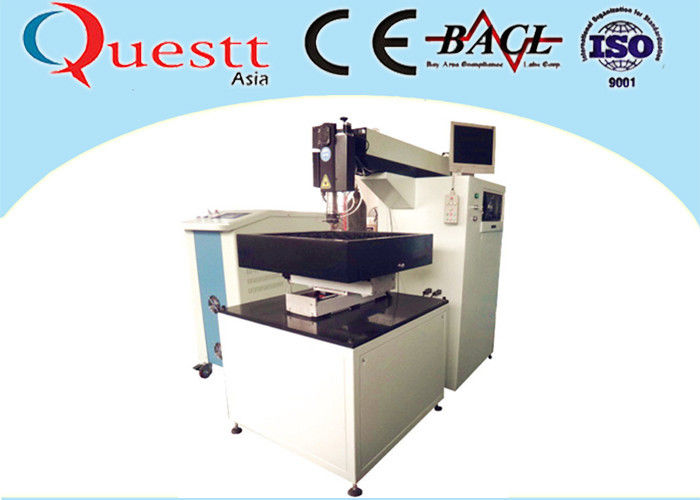

Industrial Laser Cutting Machine For Gold

Product Details

Place of Origin: China

Brand Name: Questt

Certification: ISO , CE

Model Number: QA-PC300B

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard Exporting Wooden Cases

Delivery Time: 5 - 20 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 3990 sets / year

Get Best Price
Highlight:

yag laser cutting machine

,

industrial laser cutting machine

Power:
300W
Work Size:
300 X 300 Mm
Laser:
YAG Laser
Cutting Thickness:
0-3mm
Industry:
Precision
Service:
Overseas Service Available
Power:
300W
Work Size:
300 X 300 Mm
Laser:
YAG Laser
Cutting Thickness:
0-3mm
Industry:
Precision
Service:
Overseas Service Available
Industrial Laser Cutting Machine For Gold

Precision laser cutting machine YAG Benchtop Laser Cutter for metals 300W



Overview



QA-PC300B Precision laser cutting machine is a precision type laser cutter machine, which is especially designed for cutting precision slit products.



Precision laser cutting machine has high quality beam, high reliability, good optical mode, high top power, smooth incision, good perpendicularity, it is a special cutting machine, which is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CN programe,can process any graphics and text, running stably, good processing quality, high efficiency, good precision, easy operation, convinient maintenance.



The machine is including laser generator, (external) laser beam transmission part, worktable (machine tool), main controlling cabinet, cooling system and computer digital controlling system (hardware and software) etc..





Parameter datas

Products

QA-PC300B

Precision CNC laser cutting machine

Laser Nd:YAG pulse laser
Laser power 300W
Cutting format

100*100mm,

200*200mm

300*300mm

600*600mm

Cutting accuracy 0.01-0.05mm

Cooling system



Water of cooling
Use It is used to cut metal
Maintenance cycle 3-6 months
Accessories Laser ,laser power supply, laser position system, optics system, cooling system, computer control system, cutting worktable, CCD visual observation system, gas system
Technology parameters

Laser rated power: 300W

Laser wave length: 1064μm

Laser work material: Nd: YAG crystal

Pulse frequency: 1-150Hz

Cutting format: 300×300mm

Z axis travel: 50mm

Top load of worktable: 100kg

Work current: 100-450A

Pulse width: 0.1-3ms

Beam divergence angle: ≤5mrad

Power instability: ≤±5%

Accuracy: 0.05mm

Location speed: 1m / min

Cutting speed: 1m/min(1mm stainless steel plate)

Top cutting speed: 2m/min(1mm)

Repeat location precision: ±0.1mm

Cutting thickness: stainless≤3mm carbon steel plate≤4.0mm

copper≤0.5mm

aluminum≤0.8mm

Continuous work time: 24h

Minimum cutting width ≤0.1mm(material thickness 1mm)

Cutting worktable: servo motor table

The whole power cost: 12KW

Focusing mirror configuration: 3 inch,

Power supply: three-phase 380V/50Hz/30A

Applicable field

It is used widly on advertising signs production, sheet metal structures, production of high and low voltage electrical cabinet,textile machinery parts,kithen, auto, machinery, metal technics, saw, electrical parts, glasses, spring, PCB, electical kettle, medical microelectronics, hardware, tools,etc.

Suitable material: stainless steel,carbon steel,alloy steel,spring steel,copperplate,aluminum plate,gold,silver,titanium, etc metal plates and pipes.

Environment require

Three-phase alternating current: 380±10%,50HZ

Environment temperature: -10℃-40℃

Ralative humidity: ≤80%

Oile mist: not more than 15mg/m3



Cutting parameter


  300W 500W 650W
Carbon steel 0-3mm 0-6mm 0-8mm
Stainless steel 0-2mm 0-3mm 0-4mm
Aluminum alloy 0-1mm 0-2mm 0-3mm





Samples

Industrial Laser Cutting Machine For Gold 0

FAQ

1 Q: What is the warranty ?
A: The warranty is 2 years, but we offer whole life after-sale service.

2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service.

4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.
