High Precision laser cutting machine for precise products 300W fast speed

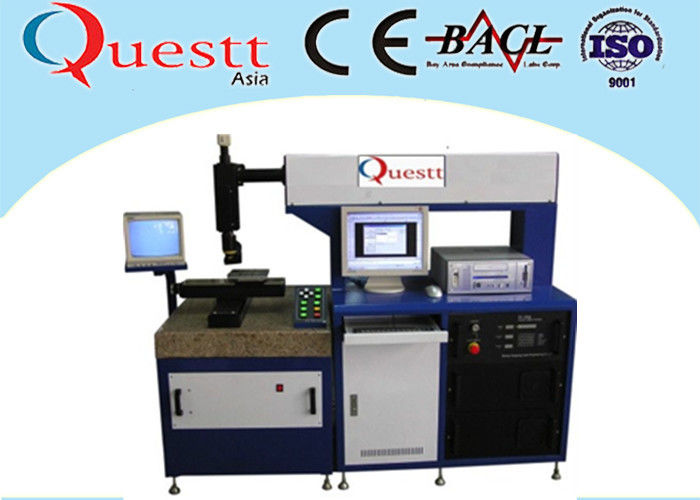

QA-PC300C Precision laser cutting machine is a precision type laser cutter, which is especially designed for cutting precision products and slit workpieces.
Precision laser cutting machine has high quality beam, high reliability, good optical mode, high top power, smooth incision, good perpendicularity, it is a special cutting machine, which is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CN programe,can process any graphics and text, running stably, good processing quality, high efficiency, good precision, easy operation, convinient maintenance.
Its numerical controlling system controls the pulse width, laser energy, peak value and repeatability accuracy of the machine and make material fusing, gasifying instantly for realizing cutting by numerical controlling according to scheduled track.
Precision CNC laser cutting machine
|Laser||Nd:YAG pulse laser|
|Water of cooling|
|Use||It is used to cut metal|
|Maintenance cycle||3-6 months|
|Accessories||Laser ,laser power supply, laser position system, optics system, cooling system, computer control system, cutting worktable, CCD visual observation system, gas system|
Laser rated power: 300W
Laser wave length: 1064μm
Laser work material: Nd: YAG crystal
Pulse frequency: 1-150Hz
Cutting format: 300×300mm
Z axis travel: 50mm
Top load of worktable: 100kg
Work current: 100-450A
Pulse width: 0.1-3ms
Beam divergence angle: ≤5mrad
Power instability: ≤±5％
Location speed: 1m / min
Cutting speed: 1m/min(1mm stainless steel plate)
Top cutting speed: 2m/min(1mm)
Repeat location precision: ±0.1mm
Cutting thickness: stainless≤3mm carbon steel plate≤4.0mm
Continuous work time: 24h
Minimum cutting width ≤0.1mm(material thickness 1mm)
Cutting worktable: servo motor table
The whole power cost: 12KW
Focusing mirror configuration: 3 inch,
Power supply: three-phase 380V/50Hz/30A
It is used widly on advertising signs production, sheet metal structures, production of high and low voltage electrical cabinet,textile machinery parts,kithen, auto, machinery, metal technics, saw, electrical parts, glasses, spring, PCB, electical kettle, medical microelectronics, hardware, tools,etc.
Suitable material: stainless steel,carbon steel,alloy steel,spring steel,copperplate,aluminum plate,gold,silver,titanium, etc metal plates and pipes.
Three-phase alternating current: 380±10%,50HZ
Environment temperature: -10℃-40℃
Ralative humidity: ≤80%
Oile mist: not more than 15mg/m3
