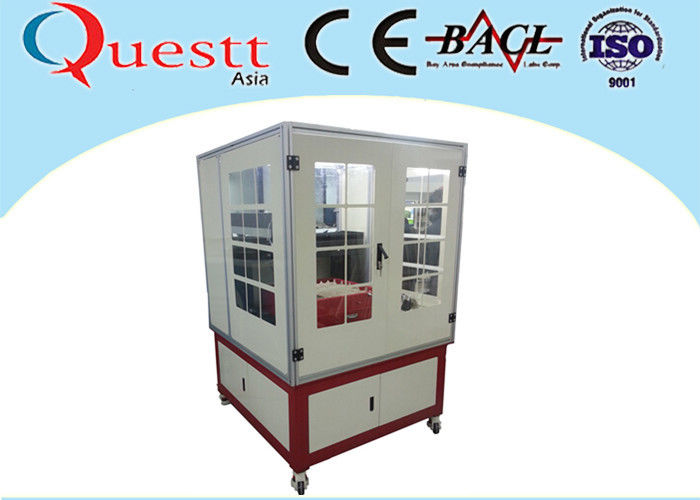

Safer YAG precision laser cutting machine with a sealed Gantry working table 1x1M
QA-PC300S Precision laser cutting machine is a sealed gantry type laser cutting machine with very high safety standard.
Gantry type working talbe, much more stable during cutting.
In order to protect the operators during cutting, the laser cutter has equiped with a sealed working table,which suitable for Europen safety standard, much safer for working. Better choice for customers who hav higher safety level.
It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
The laser cutter is a special cutting machine, which is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CN programe,can process any graphics and text, running stably, good processing quality, high efficiency, good precision, easy operation, convinient maintenance.
Precision laser cutting machine
|Laser||Nd:YAG pulse laser|
|Table type||Sealed gantry type|
|Water of cooling|
|Use||It is used to cut metal|
|Maintenance cycle||3-6 months|
|Accessories||Laser ,laser power supply, laser position system, optics system, cooling system, computer control system, cutting worktable, CCD visual observation system, gas system|
Laser rated power: 300W
Laser wave length: 1064μm
Laser work material: Nd: YAG crystal
Pulse frequency: 1-150Hz
Cutting format: 600×600mm
Z axis travel: 50mm
Top load of worktable: 100kg
Work current: 100-450A
Pulse width: 0.1-3ms
Beam divergence angle: ≤5mrad
Power instability: ≤±5％
Location speed: 1m / min
Cutting speed: 1m/min(1mm stainless steel plate)
Top cutting speed: 2m/min(1mm)
Repeat location precision: ±0.1mm
Cutting thickness: stainless≤3mm carbon steel plate≤4.0mm
Continuous work time: 24h
Minimum cutting width ≤0.1mm(material thickness 1mm)
Cutting worktable: servo motor table
The whole power cost: 12KW
Focusing mirror configuration: 3 inch,
Power supply: three-phase 380V/50Hz/30A
It is used widly on advertising signs production, sheet metal structures, production of high and low voltage electrical cabinet,textile machinery parts,kithen, auto, machinery, metal technics, saw, electrical parts, glasses, spring, PCB, electical kettle, medical microelectronics, hardware, tools,etc.
Suitable material: stainless steel,carbon steel,alloy steel,spring steel,copperplate,aluminum plate,gold,silver,titanium, etc metal plates and pipes.
Three-phase alternating current: 380±10%,50HZ
Environment temperature: -10℃-40℃
Ralative humidity: ≤80%
Oile mist: not more than 15mg/m3
