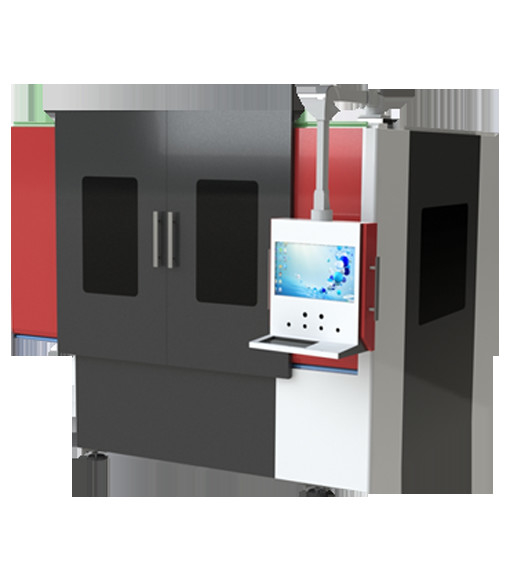

CNC Control Sealed Precision Laser Cutting Machine
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Work Talbe||Sealed Type||Laser||YAG|
|Power||300W||Warranty||1 Year, Wholelife Service|
|Working Area||600x600mm||Control System||CNC|
yag laser cutting machine,
industrial laser cutting machine,
Sealed Precision Laser Cutting Machine
UV CNC control Sealed precision laser cutting machine for Aluminum Copper Carbon Steel
QA-CC300 CNC control Sealed precision laser cutting machine is a CNC precision laser cutter which equip with a sealed type working table. The control system is CNC.
The sealed box is to protect the operators during cutting, the laser cutter reach Europen safety standard.
Laser cutter is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
The laser cutter is a special cutting machine, which is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CN programe,can process any graphics and text.
Precision CNC laser cutting machine
|Laser||Fiber or UV|
|Laser power||300W/ 10W|
|Water of cooling|
|Use||It is used to cut metal|
|Maintenance cycle||3-6 months|
|Accessories||Laser ,laser power supply, laser position system, optics system, cooling system, computer control system, cutting worktable, CCD visual observation system, gas system|
Laser rated power: 300W
Laser wave length: 1064μm
Laser work material: Nd: YAG crystal
Pulse frequency: 1-150Hz
Cutting format: 600×600mm
Z axis travel: 50mm
Top load of worktable: 100kg
Work current: 100-450A
Pulse width: 0.1-3ms
Beam divergence angle: ≤5mrad
Power instability: ≤±5％
Location speed: 1m / min
Cutting speed: 1m/min(1mm stainless steel plate)
Top cutting speed: 2m/min(1mm)
Repeat location precision: ±0.1mm
Cutting thickness: stainless≤3mm carbon steel plate≤4.0mm
Continuous work time: 24h
Minimum cutting width ≤0.1mm(material thickness 1mm)
Cutting worktable: servo motor table
The whole power cost: 12KW
Focusing mirror configuration: 3 inch,
Power supply: three-phase 380V/50Hz/30A
It is used widly on advertising signs production, sheet metal structures, production of high and low voltage electrical cabinet,textile machinery parts,kithen, auto, machinery, metal technics, saw, electrical parts, glasses, spring, PCB, electical kettle, medical microelectronics, hardware, tools,etc.
Suitable material: stainless steel,carbon steel,alloy steel,spring steel,copperplate,aluminum plate,gold,silver,titanium, etc metal plates and pipes.
Three-phase alternating current: 380±10%,50HZ
Environment temperature: -10℃-40℃
Ralative humidity: ≤80%
Oile mist: not more than 15mg/m3
1 Q: What is the warranty of the laser cutting machine?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service.
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training
