CNC Laser Cutter 300W For Precise Products , CNC Glass Cutting Machine 500x500mm

Place of Origin China
Brand Name Questt
Certification ISO , CE
Model Number QA-CC300B
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Standard Exporting Wooden Cases
Delivery Time 5 - 22 days
Payment Terms T/T, Western Union, L/C
Supply Ability 3810 sets / year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Safety Level European Safety Standard Laser Nd: YAG
Power 300W Service Overseas Service Available
Warranty 1 Year And Permanent Service Working Area 500x500mm
High Light

yag laser cutting machine

,

industrial laser cutting machine

Leave a Message
Product Description

UV CNC laser cutter 300W with CE Precision laser cutting machine for precise products



Overview



QA-CC300B CNC laser cutter is a CNC precision laser cutting machine.



The CNC laser cutter machine can reach Europen safety standard. Best choice for high safety request country customers.



The control system is CNC. The laser cutter has equipped with a sealed working table to protect the workers when operate the machine.



Laser cutter is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.



The laser cutter is a special cutting machine, which is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CN programe,can process any graphics and text.





Parameter datas

Products

QA-CC300B

Precision laser cutting machine

Laser UV/Fiber
Laser power 300W
Cutting format



500*500mm

Table type Sealed
Cutting accuracy 0.01-0.05mm

Cooling system



Water of cooling
Use It is used to cut metal
Maintenance cycle 3-6 months
Accessories Laser ,laser power supply, laser position system, optics system, cooling system, computer control system, cutting worktable, CCD visual observation system, gas system
Technology parameters

Laser rated power: 300W

Laser wave length: 1064μm

Laser work material: Nd: YAG crystal

Pulse frequency: 1-150Hz

Cutting format: 600×600mm

Z axis travel: 50mm

Top load of worktable: 100kg

Work current: 100-450A

Pulse width: 0.1-3ms

Beam divergence angle: ≤5mrad

Power instability: ≤±5%

Accuracy: 0.05mm

Location speed: 1m / min

Cutting speed: 1m/min(1mm stainless steel plate)

Top cutting speed: 2m/min(1mm)

Repeat location precision: ±0.1mm

Cutting thickness: stainless≤3mm carbon steel plate≤4.0mm

copper≤0.5mm

aluminum≤0.8mm

Continuous work time: 24h

Minimum cutting width ≤0.1mm(material thickness 1mm)

Cutting worktable: servo motor table

The whole power cost: 12KW

Focusing mirror configuration: 3 inch,

Power supply: three-phase 380V/50Hz/30A

Applicable field

It is used widly on advertising signs production, sheet metal structures, production of high and low voltage electrical cabinet,textile machinery parts,kithen, auto, machinery, metal technics, saw, electrical parts, glasses, spring, PCB, electical kettle, medical microelectronics, hardware, tools,etc.

Suitable material: stainless steel,carbon steel,alloy steel,spring steel,copperplate,aluminum plate,gold,silver,titanium, etc metal plates and pipes.

Environment require

Three-phase alternating current: 380±10%,50HZ

Environment temperature: -10℃-40℃

Ralative humidity: ≤80%

Oile mist: not more than 15mg/m3



Cutting parameter


  300W 500W 650W
Carbon steel 0-3mm 0-6mm 0-8mm
Stainless steel 0-2mm 0-3mm 0-4mm
Aluminum alloy 0-1mm 0-2mm 0-3mm

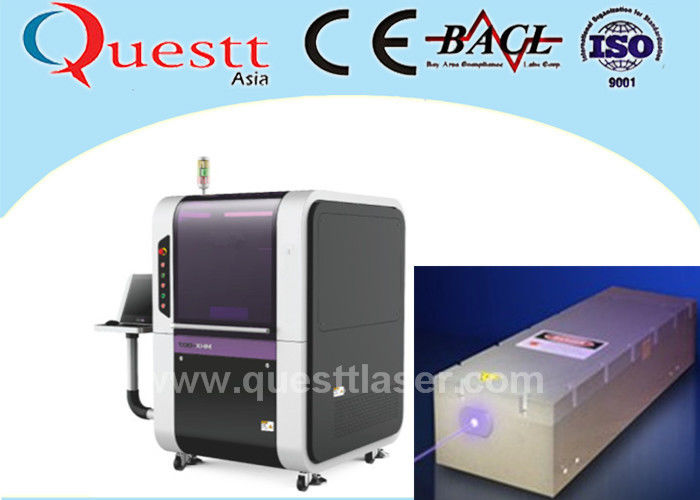

Machine outlook

CNC Laser Cutter 300W For Precise Products , CNC Glass Cutting Machine 500x500mm 0
