Personalized 3D Photo Crystal Laser Engraving Machine Benchtop Type Oversea Services
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Crystal Glass Acrylic Etc. | Service | Oversea Services |
|---|---|---|---|
| Wavelength | 532nm | Laser Type | Green Laser Device |
| Laser Power | 3W | Warranty | 12 Month And Permanent Service |
| High Light | Portable Laser Engraving Machine,3D Laser Etching Machine |
||
Product Description
Personalized 3D Photo Portrait Crystal Laser Engraving Machine benchtop type
Introduction
Angel-2000G 3D Photo Portrait Crystal Laser Engraving Machine is a bench top type laser etching machine for crystal and glass cube.
It use the 3D camera to take the three dimensional portraits on the human body, and then through the laser inner carving technology make beam dots inside crystal, many dots to form a three-dimensional images.
The laser source is green laser with wavelenth only 532nm. Much more precision than fiber laser.
This type of machine use the imported air cooling laser system, so it not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristic, good stability and easy maintain, Suitable for large shopping malls, tourist resort and the place of big population like that make the personalized portrait production.
Features
1. 3D deep engraving with layering.
2. 2D deep engraving with various finishes.
3. Deep & faster martial penetration and removal.
4. True type fonts with dynamic filling.
5. Maintenance free (apart from occasional lubrication of moving parts)
6. Completely sealed optical system to protect the operator
7. It adopts original technology, and the engraving range is large.
8. This machine is suitable for individual production and batch fast process.
9. Just one machine could be satisfied with capacity for both storefronts network distribution and elecgtric-business distrib ution.
10. It comes laser to greatly advance laser speed. It adopts incorporated structure, and it is good fluid, suited to use in Supermarket.
Specification
| Model |
Angel-2000G |
| Laser /Wavelength |
semiconductor diode 532 nm |
| Laser power | 3W |
| Diode lifetime | 25000 hours |
| Max working scope | 120*120*100mm |
| Engraving dot pitch | 0.07-0.12mm |
| Engraving spot size | 40-80μm |
| Max engraving speed |
2500 dots/s 3800 dots/s |
| Resolution | 800-1200 dpi |
| Batch processing | yes |
| 3 axis screw rod accuracy | 0.02mm/300mm |
| 3 axis repositioning accuracy | <3μm/300mm |
| Total Power | 800 W |
| Cooling system | Air cooling |
| Temperature | 15℃~30℃ |
| Environment humidity | <85%, non-dewfall |
| Air | clean, non-corrosiveness gas |
| Operation system | Windows 2000,Windows XP,win7 32bit |
| Voltage |
100-240VAC,5A 50/60HZ |
| Laser Frequency | 2000 HZ |
| Material | Crystal glass etc |
| Control system | with high speed scanner +X+Y+Z (5 axis) |
| Software | self reseach software for 3D, 2Ddots cloud,and for control machine |
Warranty
One year from the date the machine arrives the destination Except consumable part of the lamp and damage artificially.
The seller is responsible for offer free fittings in the warranty period (the buyer has to send the damaged fitting to seller.)
The artificial damage in the warranty period and damage after warranty period, the seller offers paid service.
Samples

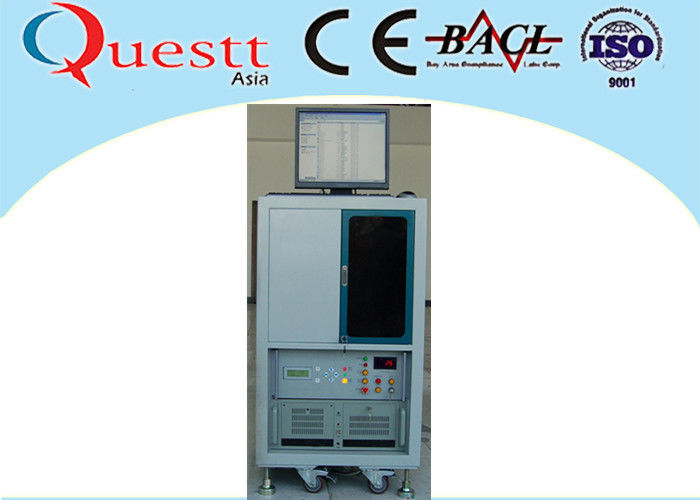

Machine overview
