IPG 70W Roller Rod Mold Derusting Fiber Laser Cleaning Machine Rust Removal

Place of Origin Wuhan, China
Brand Name QUESTT
Certification ISO CE
Model Number QA-LC50
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard Exporting Wooden Box
Delivery Time 30 days
Payment Terms T/T, L/C, Western Union
Supply Ability 2000 sets per year

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 50W Certificate CE
Gurranty 2 Years Application Clean Surface Of Products
Laser Source Fiber Laser Service Online And Overseas
High Light

laser rust removal equipment

,

laser rust and paint remover

Leave a Message
Product Description

IPG 50W Roller Rod Mold Derusting Fiber Laser Cleaning Machine Rust Removal



Description:



QA-LC50 fiber laser derusting machine is a new laser machine design for cleaning surface of all kinds of products which stock for long time.

Laser derusting using laser high energy, high frequency, high power characteristics, the high energy instantly deposited in a small area, the use of high-temperature oxidation of the oxide layer.

The full system contains fiber laser source, laser optical scanners and control system, mainly meeting the requirements of surface cleaning process, like rust metal, painting coating products etc.

The laser cleaning system is a new generation of industrial surface cleaning high-tech products. Also it is a new chance for you to open the local market for such machine applicaion.

For the machine outlook, we have different types for you to choose: sealed bench top, mini portable one, also have hand held ones to choose. You can hold the laser head in hand, and remove the dust in any place or corner you like.





Characteristic:



(1) it is a "dry" cleaning, do not need cleaning solution or other chemical solution, will not lead to the two pollution, and cleanliness is much higher than chemical cleaning process;
(2) the laser cleaning technology is very extensive, such as various oxide particles, rust, coating and organic matter on the surface;
(3) the traditional cleaning method is often close to the operation, the substrate surface mechanical force, easy to damage the substrate; and laser cleaning is non-contact processing, remote operation can be carried out,By adjusting the laser parameters, on the basis of no damage on the surface of the substrate, the effective removal of pollutants, such as involution of the surface;
(4) with the aid of modern means, laser cleaning can easily realize automatic operation;
(5) laser decontamination equipment can be used for a long time;
(6) laser cleaning technology is a kind of "green" cleaning process, the elimination of waste is solid powder, small size, easy to store, basically no pollution to the environment.
Laser cleaning can be divided into metal laser cleaning, laser cleaning, laser cleaning, etc. according to the application of laser, the laser can be divided into solid pulse laser cleaning and fiber laser cleaning. Metal laser cleaning is mainly divided into laser degreasing, laser derusting, laser paint removal, etc..



Specifications:

Laser Cleaning Machine Rust Removal.pdf





Model

QA-LC50

QA-LC100

QA-LC200

QA-LC500

Laser source

Fiber

Fiber

Fiber

Fiber

Laser Power

50W

100W

200W

500W

Fiber cable L

3 M

3 M

5 M

10M

Pulse Energy

1mJ

1.5 mJ

10 mJ

50 mJ

Wavelength

1060nm

1060nm

1060nm

1060nm

Frequency

1-2000KHz

1-2000KHz

1-2000KHz

10-50KHz

Clean speed

≤5 M²/Hour

10 M²/Hour

≤15 M²/Hour

≤50 M²/Hour

Scann speed

0-7000mm/s

0-7000mm/s

0-7000mm/s

0-7000mm/s

Cooling

Air cooling

Air cooling

Water cooling

Water cooling

Dimension

450*350*500

500*400*550

900*600*1100

1600*1100*1800

Weight

30Kg

40Kg

120Kg

300Kg

Beam width

10-100mm

10-100mm

10-100mm

10-100mm

Optional

Manual

Manual

Manual

Manual

Temperature

5-40 ℃

5-40 ℃

5-40 ℃

5-40 ℃

Voltage

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ






















































IPG 70W Roller Rod Mold Derusting Fiber Laser Cleaning Machine Rust Removal 0



Principle:



Laser beam can produce at least 3 functions:
1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;
2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;
3 instant to make the dirt molecules evaporate, gasification or decomposition





Application scope:



Laser cleaning technology can be used on liquid products, solid products, historical relic, air spcace, easy burned or broken products, so it is much safer, more efficient and reliable to use laser cleaning technology. It has high advervantage on applicaiton of below industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy
Presumably, as the demands of the market increasing , the applications of laser cleaning technolog will be more widely.





Machine details:

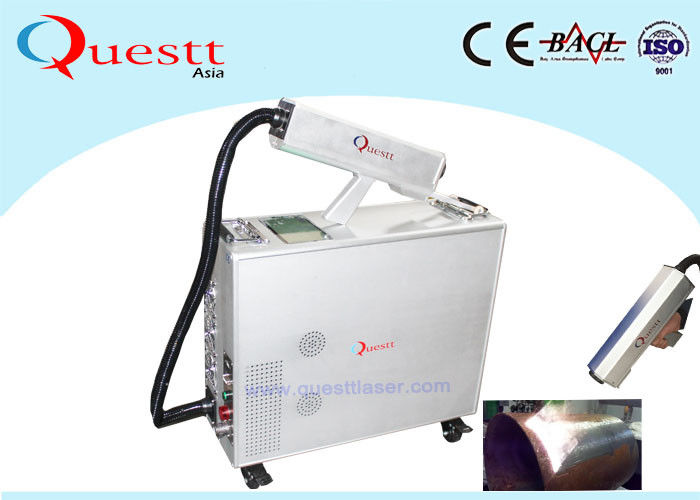

IPG 70W Roller Rod Mold Derusting Fiber Laser Cleaning Machine Rust Removal 1



FAQ



1 Q: What is the warranty ?

A: The warranty is 2 year, but we offer whole life after-sale service.



2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.



3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .



4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.



5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.

IPG 70W Roller Rod Mold Derusting Fiber Laser Cleaning Machine Rust Removal 2
