Copper Plastic Glass Acrlic Printing Precision Laser Cutting Machine 10W

China Copper Plastic Glass Acrlic Printing Precision Laser Cutting Machine 10W supplier
Copper Plastic Glass Acrlic Printing Precision Laser Cutting Machine 10W supplier Copper Plastic Glass Acrlic Printing Precision Laser Cutting Machine 10W supplier

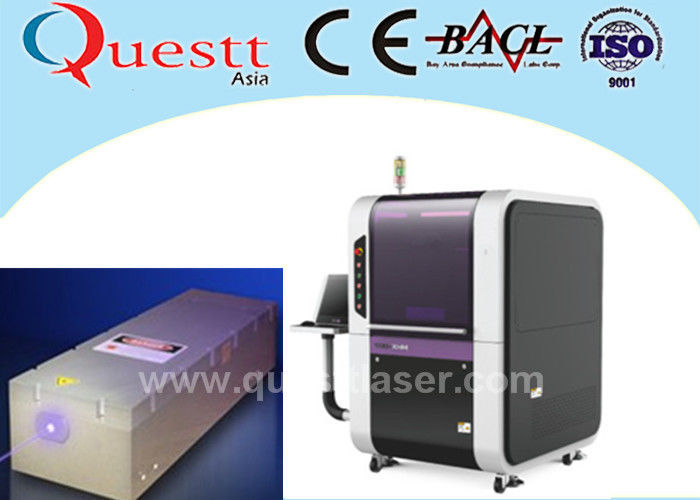

Large Image :  Copper Plastic Glass Acrlic Printing Precision Laser Cutting Machine 10W

Product Details:

Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-UV10

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export Wood cases
Delivery Time: 26 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1600 Sets/Year
Contact Now
Detailed Product Description
Laser Wavelength: 355nm Power Supply: 110-230V 50 / 60HZ
Laser Power: 10W Advantage: Precision Processing
Certificate: CE Service: Online And Overseas

UV Laser Cutting and Printing Machine Etching on Copper Plastic Glass Acrlic 10W



Descriptions



QA-UV10 CNC Laser Cutting and Printing Machine is equiped with a 10W UV laser source, the wavelength is 355nm, which is suitable to be absorbed by many kinds of materials. So the cutting and printing is much more precision and nice than green laser or fiber laser. It also can do 3D inner engraving as green laser do.



Ultrafine Structures on Challenging Substrates



Due to their electrical properties, hardness, and resistance to environmental factors, fired ceramics play important roles in demanding electronics applications. Structuring of sensitive metal layers on ceramic parts can be accomplished with high precision with the QUESTT UV – as shown in the example to the right (figure to right in original size: 25 mm x 25 mm). A closer look at the structures impressively reveals the possibilities of the UV laser process.





Processing Laminated Substrates

To produce a track on a base material such as FR4 with a fully coated surface, the QUESTT UV forms insulating channels on both sides of the track. Any geometric shapes can be generated in this manner. Due to the high precision achieved, this laser system is also ideal for RF applications and digital circuits.

er process.





Feature



1 Long lifetime
2 very high quality laser beam for precision processing



3 three axis working table
4 CNC control system


5 Exposing graphics can be promptly and freely amended
6 high ratio photo translate system




Specification



Model No. QA-UV10
Laser type UV laser
The average output power 10W
Laser wavelength 355nm
Beam Quality(M2) 1
Frequency 20KHz-200KHz
Repetitive accuracy 0.005mm
Min Linear Width 0.01mm
Marking Depth 0.01-0.2mm
Max Speed 7000mm/s
X axis 300mm
y axis 200mm
Z axis 10mm
Consumed power <500W
File format PLT, DXF, AI, DST, BMP, JPG, TIF
Power Supply 220V/50Hz/15A (110-120V Optional)
Cooling system Water cooling
Grosss weight 220kgs



Application



Marking text, barcodes, and graphics/pictures on PC boards, polymers, plastics, metals, food packaging, clothing, jewelry, ICs, etc.



All the material which fiber laser can not do, or finish not good. Most non metal materials.





UV laser device



Copper Plastic Glass Acrlic Printing Precision Laser Cutting Machine 10W





FAQ



1 Q: What is the warranty ?

A: The warranty is 2 year, but we offer whole life after-sale service.



2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.



3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .



4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.



5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.



Machine outlook

Copper Plastic Glass Acrlic Printing Precision Laser Cutting Machine 10W
