1060um IPG 60W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment

Certification
Good quality UV Laser Marking Machine for sales
Good quality UV Laser Marking Machine for sales
Thanks so much for your overseas servive in our factory, after training, our worker can operate the machines very well.

—— Jack

The price is really reasonable with such good quality. We will buy more later.

—— Toni

Nice to meet you on Canton Fair and thanks so much for all your technical support and training, now we can use the machine very well.

—— Elmer

So happy to be your agent here, we will try our best to sell more machines for you. Hope we can establish a long term bushiness relationship!

—— Mohmmad

The 2 lasers we purchased from you folks have been better the we could have hoped for. Thanks so much!

—— Mark Amstrong

Very fast shipping and well package! The after service is really good !

—— Glen

The special desgin is excellent, meet the high safety request in US, we like it so much. Later, if got new ideas, we will let you design new machines

—— Eric

Really happy to be your partener for so long time.

—— Park

I'm Online Chat Now

1060um IPG 60W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment

China 1060um IPG 60W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment supplier
1060um IPG 60W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment supplier 1060um IPG 60W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment supplier

Large Image :  1060um IPG 60W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment

Product Details:

Place of Origin: Wuhan, China
Brand Name: QUESTT
Certification: ISO CE
Model Number: QA-LC60

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2500 sets per year
Contact Now
Detailed Product Description
Laser Power: 60W Certificate: CE
Gurranty: 2 Years Application: Surface Removal
Laser Source: Fiber Laser Service: Online And Overseas Service

1060um IPG 70W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment



Description:



The process of laser paint removal actualy is the interaction of the laser beam between the base.


The paint coating and base will absorb some laser energy when the laser reflect on the surface of paint coating, then the temperature of the paint coating and the base will increase,at the same time,the coating and base will get thermal expansion after high temperature. (Figure below) The quick thermal expansion in shot time will generate strong vibration to resist anchoring strength and seperate the two parts finally.

1060um IPG 60W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment
As mentioned before, the temperature of the paint coating and the base will increase when the laser reflect on the surface, for some very low transmittance paint coating, as the base is hard to absorb enough laser energy to make enough strong vibration, the paint will gasify after gain relatively more laser energy, just like the paint coating is burned. We call this kind laser paint method ablation effect. (Figure below)



1060um IPG 60W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment



Characteristic:



(1) it is a "dry" cleaning, do not need cleaning solution or other chemical solution, will not lead to the two pollution, and cleanliness is much higher than chemical cleaning process;
(2) the laser cleaning technology is very extensive, such as various oxide particles, rust, coating and organic matter on the surface;
(3) the traditional cleaning method is often close to the operation, the substrate surface mechanical force, easy to damage the substrate; and laser cleaning is non-contact processing, remote operation can be carried out,By adjusting the laser parameters, on the basis of no damage on the surface of the substrate, the effective removal of pollutants, such as involution of the surface;
(4) with the aid of modern means, laser cleaning can easily realize automatic operation;
(5) laser decontamination equipment can be used for a long time;
(6) laser cleaning technology is a kind of "green" cleaning process, the elimination of waste is solid powder, small size, easy to store, basically no pollution to the environment.



Specifications:

Laser Cleaning Machine Rust Removal.pdf





Model

QA-LC60

QA-LC100

QA-LC200

QA-LC500

Laser source

Fiber

Fiber

Fiber

Fiber

Laser Power

60W

100W

200W

500W

Fiber cable L

3 M

3 M

5 M

10M

Pulse Energy

1.5 mJ

1.5 mJ

10 mJ

50 mJ

Wavelength

1060nm

1060nm

1060nm

1060nm

Frequency

50-500KHz

50-200KHz

20-50KHz

10-50KHz

Clean speed

≤5 M²/Hour

10 M²/Hour

≤15 M²/Hour

≤50 M²/Hour

Scann speed

0-7000mm/s

0-7000mm/s

0-7000mm/s

0-7000mm/s

Cooling

Air cooling

Air cooling

Water cooling

Water cooling

Dimension

450*350*500

500*400*550

900*600*1100

1600*1100*1800

Weight

30Kg

40Kg

120Kg

300Kg

Beam width

10-100mm

10-100mm

10-100mm

10-100mm

Optional

Manual

Manual

Manual

Manual

Temperature

5-40 ℃

5-40 ℃

5-40 ℃

5-40 ℃

Voltage

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Principle:



Laser beam can produce at least 3 functions:
1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;
2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;
3 instant to make the dirt molecules evaporate, gasification or decomposition





Application scope:



Laser cleaning technology can be used on liquid products, solid products, historical relic, easy burned or broken products



Industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy

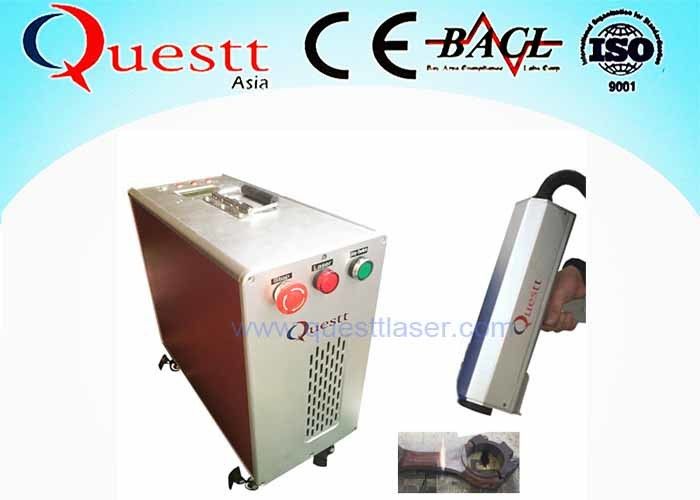

Machine details:

1060um IPG 60W Fiber Laser Rust Removal Systems Laser Cleaning Machine Equipment



FAQ



1 Q: What is the warranty ?

A: The warranty is 2 year, but we offer whole life after-sale service.



2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.



3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .



4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.



5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
