Painting Coating Rust Removal 50W IPG Laser Cleaning Machine With CE Certifice

Painting Coating Rust Removal 50W IPG Laser Cleaning Machine With CE Certifice

  • High Light

    laser rust removal equipment

    ,

    laser rust and paint remover

  • Laser Power
    200W
  • Certificate
    CE Certifice
  • Application
    Painting Coating Removal
  • Laser Source
    Fiber
  • Service
    Online And Overseas Service
  • Warranty
    2 Years
  • Place of Origin
    Wuhan, China
  • Brand Name
    QUESTT
  • Certification
    ISO CE
  • Model Number
    QA-LC200
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard Exporting Wooden Box
  • Delivery Time
    24 days
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    2400 sets per year

Painting Coating Rust Removal 50W IPG Laser Cleaning Machine With CE Certifice

Painting Coating Rust Removal 200W IPG Fiber Laser Clean Machine with CE



Description:

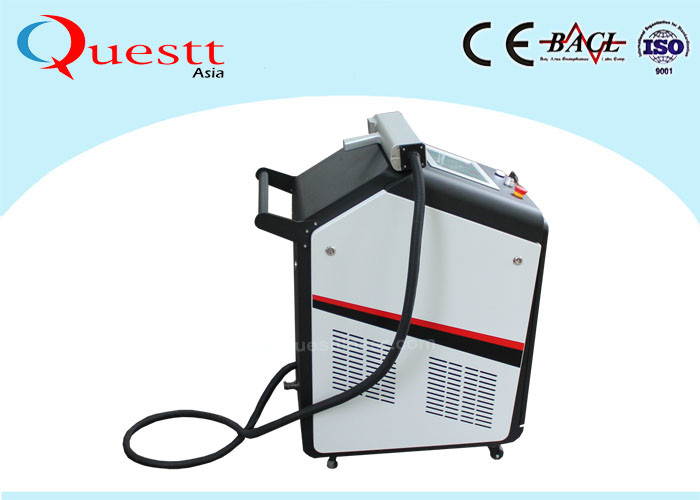

QA-LC200 is a 200W IPG fiber laser clean machine for removing painting coating.



To provide convenient, as small as 10 watt low power washing machine, up to 1000W, and the formulation of special cleaning system according to customer demand, can meet the requirements of laser surface degreasing, rust, paint,zinc film coating laser removing by laser cleaning technology.



Painting Coating Rust Removal 50W IPG Laser Cleaning Machine With CE Certifice 0



Contaminant:



The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure below) are the most difficult to destroy.
Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants



Product features:

1. with the aid of modern means, laser cleaning can easily realize automatic operation;
2. laser decontamination equipment can be used for a long time;
3. laser cleaning technology is a kind of "green" cleaning process, the elimination of waste is solid powder, small size, easy to store, basically no pollution to the environment.





Specifications:

Laser Cleaning Machine Rust Removal.pdf



Model QA-LC50 QA-LC100 QA-LC200 QA-LC500
Laser source Fiber Fiber Fiber Fiber
Laser Power 50W 100W 200W 500W
Fiber cable L 3 M 3 M 5 M 20M
Pulse Energy 1 mJ 1.5 mJ 2 mJ 100 mJ
Wavelength 1060nm 1060nm 1060nm 1060nm
Frequency 1-2000KHz 1-2000KHz 1-2000KHz 2-50KHz
Clean speed ≤5 M²/Hour ≤10 M²/Hour ≤15 M²/Hour ≤50 M²/Hour
Scann speed 0-7000mm/s 0-7000mm/s 0-7000mm/s 0-7000mm/s
Cooling Air cooling Air cooling Air/Water cooling Water cooling
Dimension 450*350*500 650*250*560 900*450*1000 1120*600*1100
Weight 30Kg 40Kg 120Kg 230Kg
Beam width 10-70mm 10-70mm 10-100mm 10-170mm
Optional Manual Manual Manual Manual
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃
Voltage Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ



Laser cleaning method:

laser+liquid film
First deposit a liquid film on surface ot the base, then use laser to clean the comtaminant



Application field:


Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal,

Industry: widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc





Sample details:

Painting Coating Rust Removal 50W IPG Laser Cleaning Machine With CE Certifice 1





FAQ



1 Q: What is the warranty ?

A: The warranty is 2 years, but we offer whole life after-sale service. Online and overseas service is available.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.

5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly. It is up to your choice.
