Product Details
Place of Origin: Wuhan, China
Brand Name: QUESTT
Certification: ISO CE
Model Number: QA-LC100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3200 sets per year
Laser Power: |
100W |
Application: |
Remove Rust Coating |
Laser Source: |
Fiber Laser |
Service: |
Overseas Service |
Warranty: |
1 Years |
Wavelength: |
1064nm |
Laser Power: |
100W |
Application: |
Remove Rust Coating |
Laser Source: |
Fiber Laser |
Service: |
Overseas Service |
Warranty: |
1 Years |
Wavelength: |
1064nm |

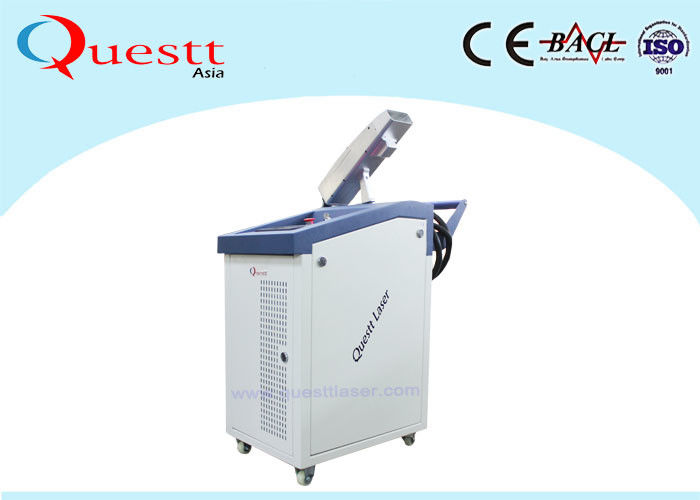

100W Low Power Fiber Laser Cleaning Machine Removing Glue Rust Removal
Description:
QA-LC100 is a 100W low power fiber laser cleaning machine for removing glue etc.
There are two methods of laser glue removal: one is the high temperature from laser will burn and gasify the glue coating immediately; the second is the rubber particals on aluminum plate surface will splash after the rubber deeper layer getting thermal vibration and thermal shock of laser pulse.
Laser dry cleaning method
Use pulses laser to clean rust directly, it will generate vibration after the laser energy is absorbed by the base or particles, then seperate the base and comtaminant.
Product features:
1. Rapid, clean, accurate cleaning, removal of surface coatings and contaminant;
2. laser cleaning technology is a kind of "green" cleaning process, the elimination of waste is solid powder, small size, easy to store, basically no pollution
3. Can be used for a long time, low operation cost;
4. Automatic operation of equipment;
Specifications:
Laser Cleaning Machine Rust Removal.pdf
| Model | QA-LC60 | QA-LC100 | QA-LC200 | QA-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 60W | 100W | 200W | 500W |
| Fiber cable L | 3 M | 3 M | 5 M | 10M |
| Pulse Energy | 1.5 mJ | 1.5 mJ | 10 mJ | 50 mJ |
| Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
| Frequency | 50-500KHz | 50-200KHz | 20-50KHz | 10-50KHz |
| Clean speed | ≤5 M²/Hour | ≤10 M²/Hour | ≤15 M²/Hour | ≤50 M²/Hour |
| Scann speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Water cooling | Water cooling |
| Dimension | 450*350*500 | 500*400*550 | 900*600*1100 | 1600*1100*1800 |
| Weight | 30Kg | 40Kg | 120Kg | 300Kg |
| Beam width | 10-100mm | 10-100mm | 10-100mm | 10-100mm |
| Optional | Manual | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ |
Principle:
1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;
2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;
3 instant to make the dirt molecules evaporate, gasification or decomposition
Application field:
Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal,
Industry: widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc.
Sample details:
FAQ
1 Q: What is the warranty ?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service.
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.
