Home > products > Laser Cleaning Machine > Custom 100W Fiber Laser Rust Cleaning Machine For Metal Surface Derusting

Custom 100W Fiber Laser Rust Cleaning Machine For Metal Surface Derusting

Product Details

Place of Origin: Wuhan, China

Brand Name: QUESTT

Certification: ISO CE

Model Number: QA-LC100

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Exporting Wooden Box

Delivery Time: 15 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 2200 sets per year

Get Best Price
Highlight:

laser rust removal equipment

,

laser rust and paint remover

Laser Type:
Fiber Laser
Laser Power:
100W
Wave Length:
1064nm
Sevice:
Offer Overseas Service
Certificate:
CE ISO
Gurranty:
2 Years
Laser Type:
Fiber Laser
Laser Power:
100W
Wave Length:
1064nm
Sevice:
Offer Overseas Service
Certificate:
CE ISO
Gurranty:
2 Years

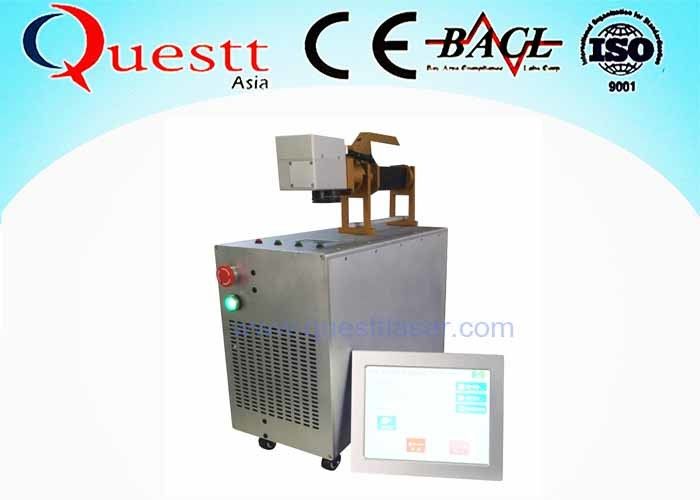

Custom 100W Fiber Laser Rust Cleaning Machine For Metal Surface Derusting

Hot Sale 100W Fiber Laser Cleaning Machine for Metal Surface Derusting Removal coating



Description:

QA-LC100 Fiber Laser cleaning Machine is a new generation of industrial surface cleaning laser system, which specially design to remove the un-needed surface cover or dust. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.



The laser derusting machine can be customized according to customer requirements to develop a dedicated cleaning system.



For laser power, we have 50W,70W,100W,200W and even higher power to choose. For the machine outlook, we have sealed bench top, also have hand held ones to choose. You can hold the laser head in hand, and remove the dust in any place or corner you like.



It is widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, laser cleaning, coating removal etc.



Characteristic:



1. Laser cleaning has no grinding, non-contact, no thermal effect

2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide;

3. No damage to substrate;

4. High cleaning precision, strong controllability

5. Can be used for a long time, low operating costs;

6. The device can realize automatic operation and simple operation;

7. Environmentally friendly, no supplies, no two pollution

8. suitable for various materials, etc.





Specifications:

QA-LC100 Laser Cleaning Machine for rust removal.p...



Model QA-LC50 QA-LC100 QA-LC200 QA-LC500
Laser source Fiber Fiber Fiber Fiber
Laser Power 50W 100W 200W 500W
Fiber cable L 3 M 3 M 5 M 20M
Pulse Energy 1 mJ 1.5 mJ 2 mJ 100 mJ
Wavelength 1060nm 1060nm 1060nm 1060nm
Frequency 1-2000KHz 1-2000KHz 1-2000KHz 2-50KHz
Clean speed ≤5 M²/Hour ≤10 M²/Hour ≤15 M²/Hour ≤50 M²/Hour
Scann speed 0-7000mm/s 0-7000mm/s 0-7000mm/s 0-7000mm/s
Cooling Air cooling Air cooling Air/Water cooling Water cooling
Dimension 450*350*500 650*250*560 900*450*1000 1120*600*1100
Weight 30Kg 40Kg 120Kg 230Kg
Beam width 10-70mm 10-70mm 10-100mm 10-170mm
Optional Manual Manual Manual Manual
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃
Voltage Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ Single Phase 220/110V, 50/60HZ



Application scope:

1 metal surface derusting

2 surface paint removal paint treatment

3 surface without dirt, stains, dirt cleaning

4 surface coating, coating removal

5 welding surface / spray surface pretreatment

6 stone surface dust and attachment removal

7 rubber mold residue cleaning



Machine details:

Custom 100W Fiber Laser Rust Cleaning Machine For Metal Surface Derusting 0



FAQ



1 Q: What is the warranty ?

A: The warranty is 1 year, but we offer whole life after-sale service.



2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.



3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .



4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.



5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.

Custom 100W Fiber Laser Rust Cleaning Machine For Metal Surface Derusting 1
